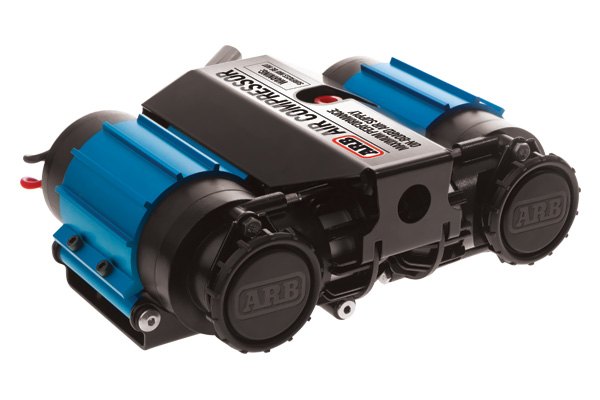

ARB CKMTA12 Max Output Twin On-Board Air Compressor - 12V

SKU CKMTA12
Sold out
Original price $616.00 - Original price $616.00
Original price
$616.00
$616.00 - $616.00
Current price $616.00

Not seeing your wholesale pricing? LOG IN or SIGN UP

FREE FREIGHT ON ORDERS $499+

ARB MAXIMUM OUTPUT ON-BOARD COMPRESSOR - 12V

Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. Constructed of lightweight, high-strength engineering grade materials, it incorporates quality components for quiet operation and extended durability. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line maxi fuse for each motor provides professional circuit protection. Available as either a portable kit with a 4L air tank, inflation accessories and a durable carry case or a vehicle mounted kit with associated wiring loom and mounting hardware.

FEATURES

  • Designed for inflating Tires and air locker activation when used in conjunction with optional accessories
  • Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
  • 100% duty cycle
  • Sealed for moisture and dust resistance
  • Hard anodized cylinder bores for reduced friction
  • Teflon impregnated carbon fiber piston seals for maximum trouble free life
  • anodized mounting bracket dissipates heat
  • Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
  • Over-pressure safety valve equipped
  • On-board model available in either a 12V or 24V configuration

                  SPECS

                  • Supply Voltage: 12
                  • Current Draw (No Load): 28A
                  • Air Flow @ 0 KPA: 174.4L/m
                  • Air Flow @ 0 PSI: 6.16 CFM
                  • Air Flow @ 200KPA: 132L/m
                  • Air Flow @ 29 PSI: 4.68 CFM
