ARB CKMTA24 Max Output Twin On-Board Air Compressor - 24V
SKU CKMTA24
Sold out
Original price
$625.00
-
Original price
$625.00
Original price
$625.00
$625.00
-
$625.00
Current price
$625.00
FREE FREIGHT ON ORDERS $499+

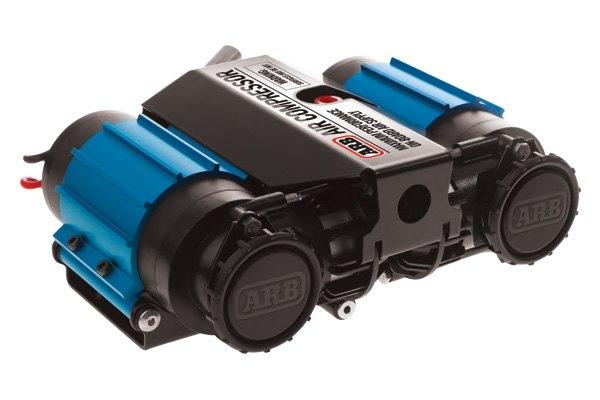

ARB MAXIMUM OUTPUT ON-BOARD COMPRESSOR - 24V
Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. Constructed of lightweight, high-strength engineering grade materials, it incorporates quality components for quiet operation and extended durability. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line maxi fuse for each motor provides professional circuit protection. Available as either a portable kit with a 4L air tank, inflation accessories and a durable carry case or a vehicle mounted kit with associated wiring loom and mounting hardware.
FEATURES
- Designed for inflating Tires and air locker activation when used in conjunction with optional accessories
- Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
- 100% duty cycle
- Sealed for moisture and dust resistance
- Hard anodized cylinder bores for reduced friction
- Teflon impregnated carbon fiber piston seals for maximum trouble free life
- anodized mounting bracket dissipates heat
- Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
- Over-pressure safety valve equipped
- On-board model available in either a 12V or 24V configuration
SPECS
- Supply Voltage: 24
- Current Draw (No Load): 14A
- Air Flow @ 0 KPA: 174.4L/m
- Air Flow @ 0 PSI: 6.16 CFM
- Air Flow @ 200KPA: 132L/m
- Air Flow @ 29 PSI: 4.68 CFM
