Balmar

Balmar XT-Series LiFePO4 Alternator Kit

Balmar XT-Series LiFePO4 Alternator Kit

Output
Fitment
  • Dedicated 2nd Alternator Charging System
  • Ideal for Class B/C RVs with Lithium Banks

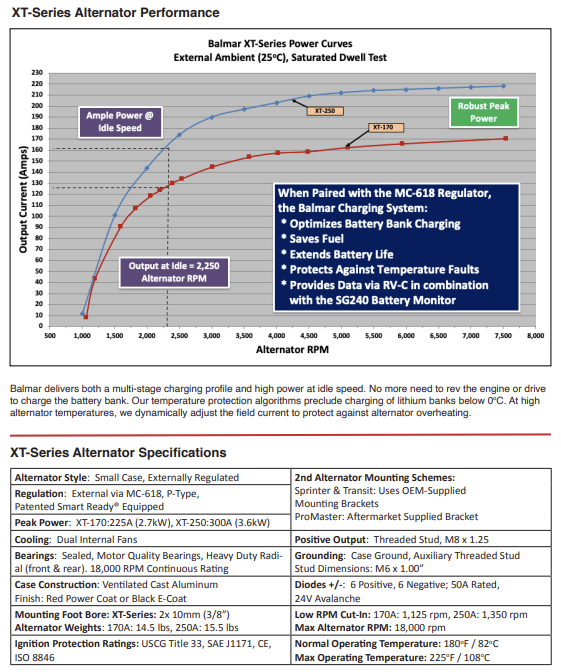

  • Up to 160A at Idle
  • Battery Chemistry-Specific Regulation

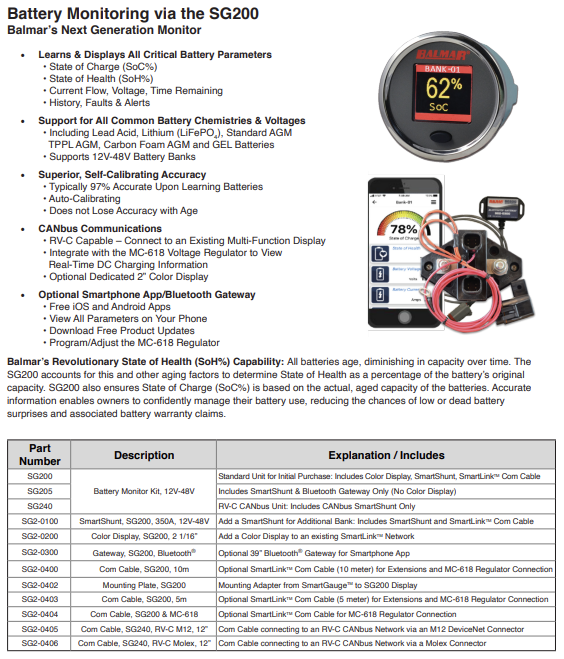

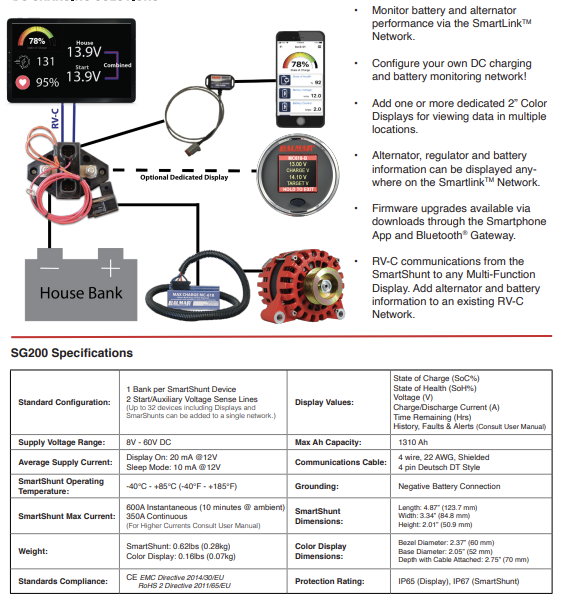

  • Integrates with SG200/RV-C Battery Monitoring System
  • Specific Sprinter, Transit and ProMaster Design

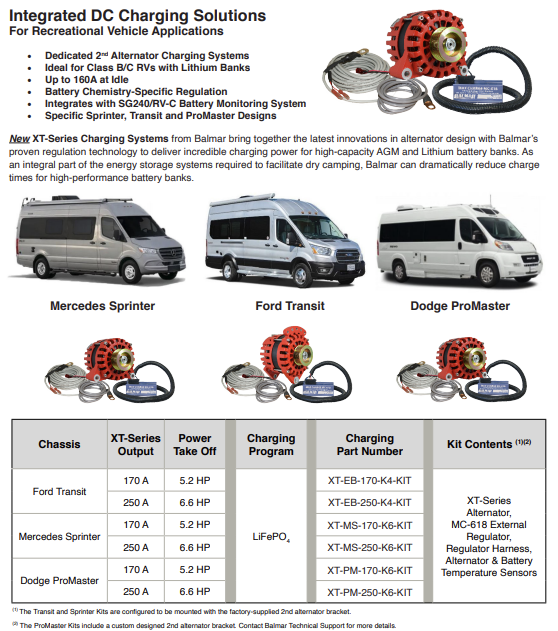

New XT-Series Charging Systems from Balmar bring together the latest innovations in alternator design with Balmar’s proven regulation technology to deliver incredible charging power for high-capacity AGM and Lithium battery banks.  As an integral part of the energy storage systems required to facilitate dry camping, Balmar can dramatically reduce charge times for high-performance battery banks.

  • The Transit and Sprinter Kits are configured to be mounted with the factory-supplied 2nd alternator bracket.
  • The ProMaster Kits include a custom designed 2nd alternator bracket. Contact Balmar Technical Support for more details.

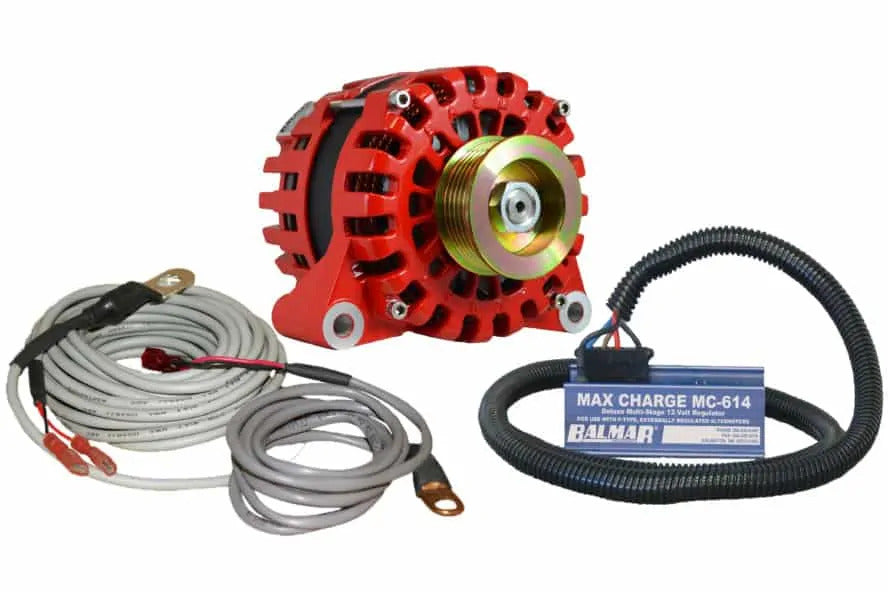

Kit Contents

  • XT-Series Alternator

  • MC-618 External Regulator

  • Custom Regulator Harness

  • Alternator & Battery Temperature Sensors

View full details
