Dometic

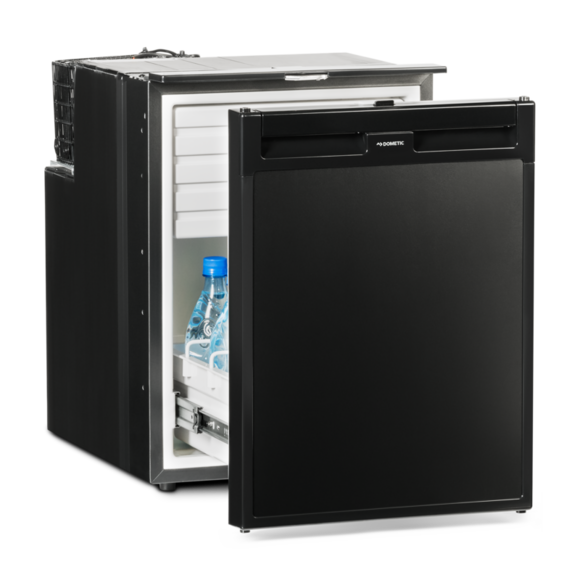

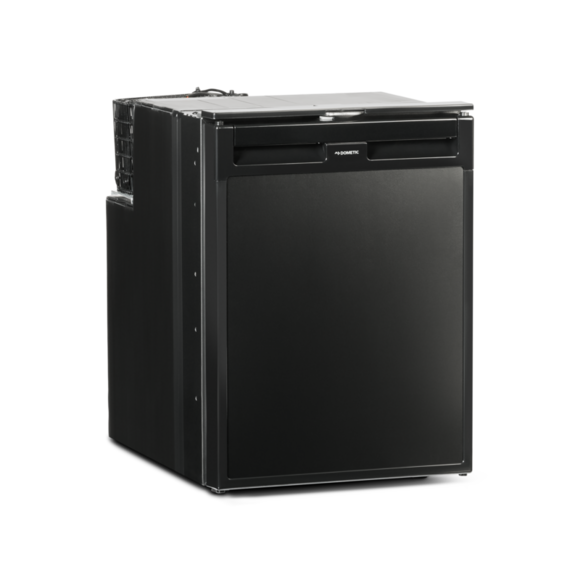

Dometic CD 50 Drawer Refrigerator - 9600026493
Dometic CD 50 Drawer Refrigerator - 9600026493
47L Drawer Refrigerator
FEATURES
- Requires less than 10" of height for installation
- Fully hermetic compressor with integrated control electronics

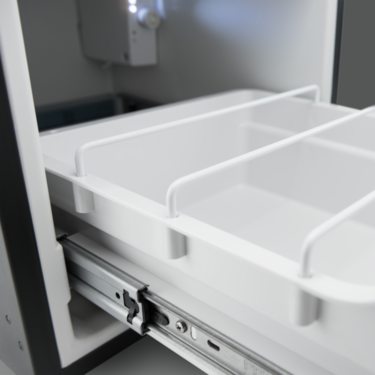

- Easy-pull drawer on roller bearing slides
- Unlock and open with a single movement
- AC operation with covered back-plate

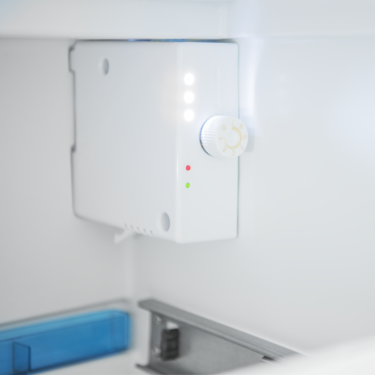

- Temperature regulation with continuously variable thermostat
- Handle with keyed lock
CONVERT EMPTY NICHES INTO PRACTICAL COOLING
The Dometic CD 50 drawer refrigerator turns any unused nook, such as the space under a seat, into a practical 47 l Capacity refrigerator. A convenient variable thermostat protects your contents from freezing, and the fully hermetic compressor is extremely energy efficient. This special unit were developed for counter depth fitting and the AC installation is protected by a rear cover.
- Requires less than 10" of height for installation
- Fully hermetic compressor with integrated control electronics
- Easy-pull drawer on roller bearing slides
- Unlock and open with a single movement
- AC operation with covered back-plate
- Temperature regulation with continuously variable thermostat
- Handle with keyed lock
SPECIFICATIONS
GENERAL
SKU number 9600026493
Model CD0050U
Model on label CD0050
Scope of delivery 1 refrigerator, 1 manual
Product Description Drawer Refrigerator, 47 l
Refrigeration technology Compressor
Model CD0050U
Model on label CD0050
Scope of delivery 1 refrigerator, 1 manual
Product Description Drawer Refrigerator, 47 l
Refrigeration technology Compressor
DIMENSIONS
Dimensions product depth 19.69 "
Dimensions product height 21 1/32 "
Dimensions product width 14.96 "
Net weight 46.30 lbs
Dimensions product height 21 1/32 "
Dimensions product width 14.96 "
Net weight 46.30 lbs
ELECTRICAL
Input voltage (DC) 12/24 V
Rated input current (DC) 5.9 A
Rated input current (DC) 5.9 A
PERFORMANCE
Refrigerant, type R134a
Climate class (EN 62552) T
Climate class (EN 62552) T
ADDITIONAL
Color Black
Thermostat control Manual Thermostat
Hinge type Drawer
Interior light Yes, LED
Certificates CB, E4, GS
Thermostat control Manual Thermostat
Hinge type Drawer
Interior light Yes, LED
Certificates CB, E4, GS
LOGISTICS
EAN-13 6951218420347
Dimensions parcel depth 22.83 "
Dimensions parcel height 23.82 "
Dimensions parcel width 19.49 "
Parcel weight 52.92 lbs
Dimensions parcel depth 22.83 "
Dimensions parcel height 23.82 "
Dimensions parcel width 19.49 "
Parcel weight 52.92 lbs
