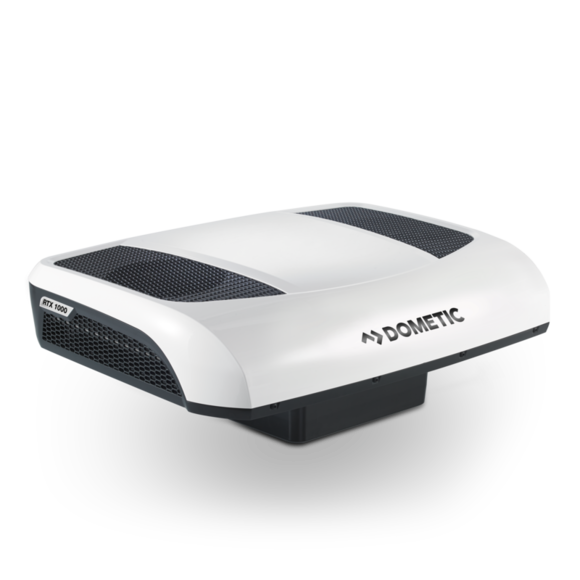

Dometic RTX 1000 - 12 Volt Air Conditioner - Includes Wiring and Hardware Kits
FREE FREIGHT ON ORDERS $499+
MAXIMUM COOLING, MINIMUM ENERGY
The third generation CoolAir from Dometic comes with an entirely new technology. The ingenious Dometic CoolAir RTX 1000 provides added cooling performance and runtime compared to its predecessor model - without consuming more energy! The variable speed inverter compressor allows for excellent cooling and operates both quietly and efficiently.
This self-contained cooler is battery operated with up to 12 h running time. It is highly efficient with only 18A consumption in Eco mode.
-
UP TO 12 HOURS RUN TIME
-
INTEGRATION INTO ROOF UNIT
-
VARIABLE SPEED CONVERTER COMPRESSOR
- 180Ah+ BATTERY BANK RECOMMENDED
- BEFORE ORDERING, PLEASE REVIEW INSTALLATION MANUAL
Includes:
- Dometic RTX 1000 Air Conditioner

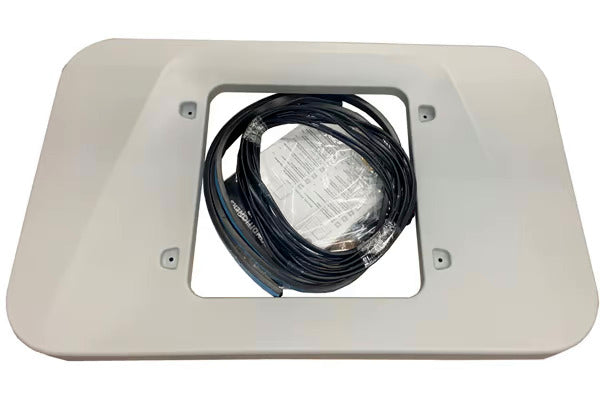

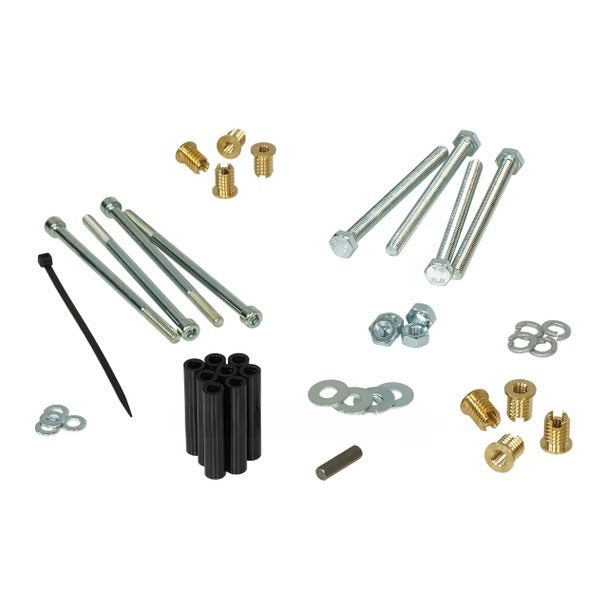

- Dometic RTX Installation Hardware Kit
- Dometic RTX 12V Wiring Kit
Not Included:
- Batteries
- Fuse Breakers
- RV Roof Sealant
A CALCULATION THAT WORKS OUT FINE FOR FLEET OPERATORS
...AND MORE
- 1200W (4,094 BTU), 12 V
- Up to 12 hours of running time
- Very quiet
- The parking cooler is suitable for ambient temperatures of 41 °F to 126 °F
- Turbo cooling operating mode for quick cooling
- All A/C components integrated into roof unit
- Highly efficient: only 18A in Eco
MORE EFFICIENCY AND POWER
The RTX Truck Parking Cooler comes with an entirely new technology to continue a unique success story. CoolAir compressor parking coolers have been around for over ten years to improve working conditions, safety and cost efficiency in the European utility vehicle industry. The third generation Dometic CoolAir roof air conditioners do that in two convincing ways: it provides more cooling performance and a longer running time while consuming less energy than its predecessor model. In the same range we have the RTX 2000 which generates more than twice the cooling power at the same running time. All of this is possible thanks to the use of a variable speed inverter compressor, which makes for excellent cooling performance and amazingly efficient and quiet operation.
QUALITY FEATURES
The Dometic Coolair RTX 1000 creates pleasant temperatures for up to twelve hours before the battery monitor gives advance warning and finally cuts off the power supply to keep the engine ready to start. The even more powerful RTX 2000 uses its ample capacity to face hot temperatures in the truck cabin for up to twelve hours. Added to this, the CoolAir is amazingly quiet in operation. The two-cylinder compressor works unnoticeably, leaving the driver to rest perfectly to enjoy all the comforts of the parking cooler: the large, high-contrast display, the individually adjustable air distribution, the four operating modes – and the adaptive automatic mode of the air conditioner. Truck drivers are fascinated by the enormous staying power of the CoolAir RTX.
SPECIFICATIONS
GENERAL
- SKU number 9600028489
- Model RTX1000
- Model on label RTX1000
- Scope of delivery Parking Cooler, Remote Control, User Manual, Handling note, Safety instructions
- Certification Not NRTL Tested
- Product Description Truck Air Conditioner, 1200W (4,094 BTU), 12 V
DIMENSIONS
- Dimensions full product depth 25.39 "
- Dimensions full product height 12.13 "
- Dimensions full product width 33.86 "
- External dimensions height 6.6 "
- External dimensions length 25.4 "
- External dimensions width 33.9 "
- Internal dimensions height 5 "
- Internal dimensions length 15 "
- Internal dimensions width 14 "
- A 18.9 in. x 15.3 in. (480 mm x 390 mm) opening is required.
- Net weight 50.72 lbs
ELECTRICAL
- Input voltage (DC) 12 V
PERFORMANCE
- Cooling capacity (ISO 5151) 1000 W
- Cooling Capacity 3412 BTU
DOWNLOADS
Unit Placement Requirements
- A 18.9 in. x 15.3 in. (480 mm x 390 mm) opening is required. The roof opening is part of the return air system of the unit.
- The joist support frames must be spaced no greater than 16 in. (406 mm) on center. The unit is designed to fit over an existing roof vent opening or a new roof opening created by the installer.
- When no roof vent is available or when another location is desired, an opening must be cut through the roof and ceiling of the vehicle. This opening must be located between the roof reinforcement beams.
- Mount the unit slightly forward of the vehicles center (front to back) and centered from side to side.
- The ventilation openings must not be covered. A minimum distance of 3.8 in. (98 mm) must be maintained from other external attachments.
