Go Power 60 Amp MPPT Solar Controller
Go Power 60 Amp MPPT Solar Controller
Couldn't load pickup availability

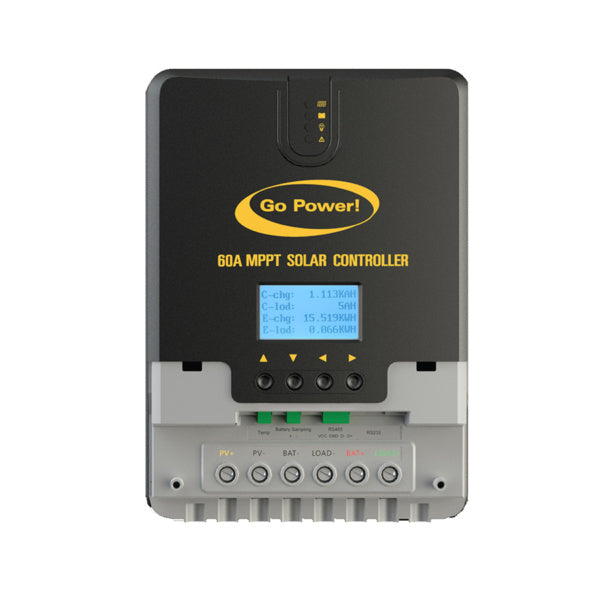

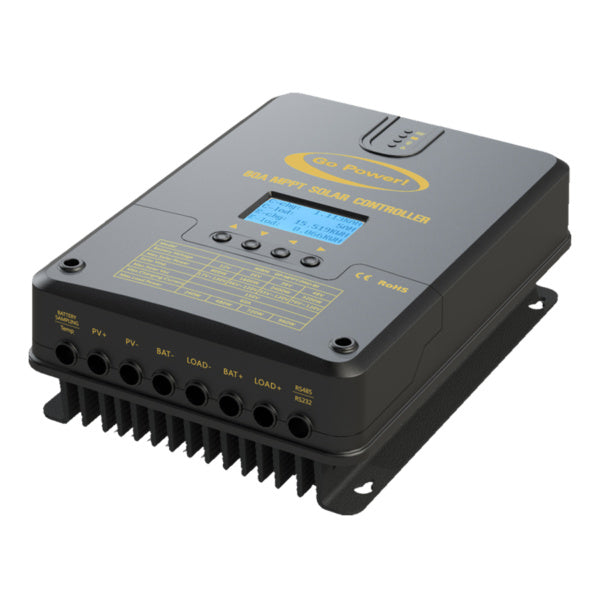

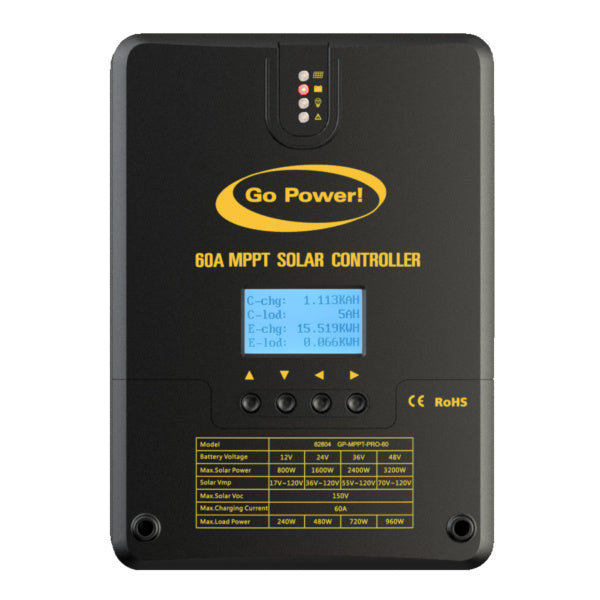

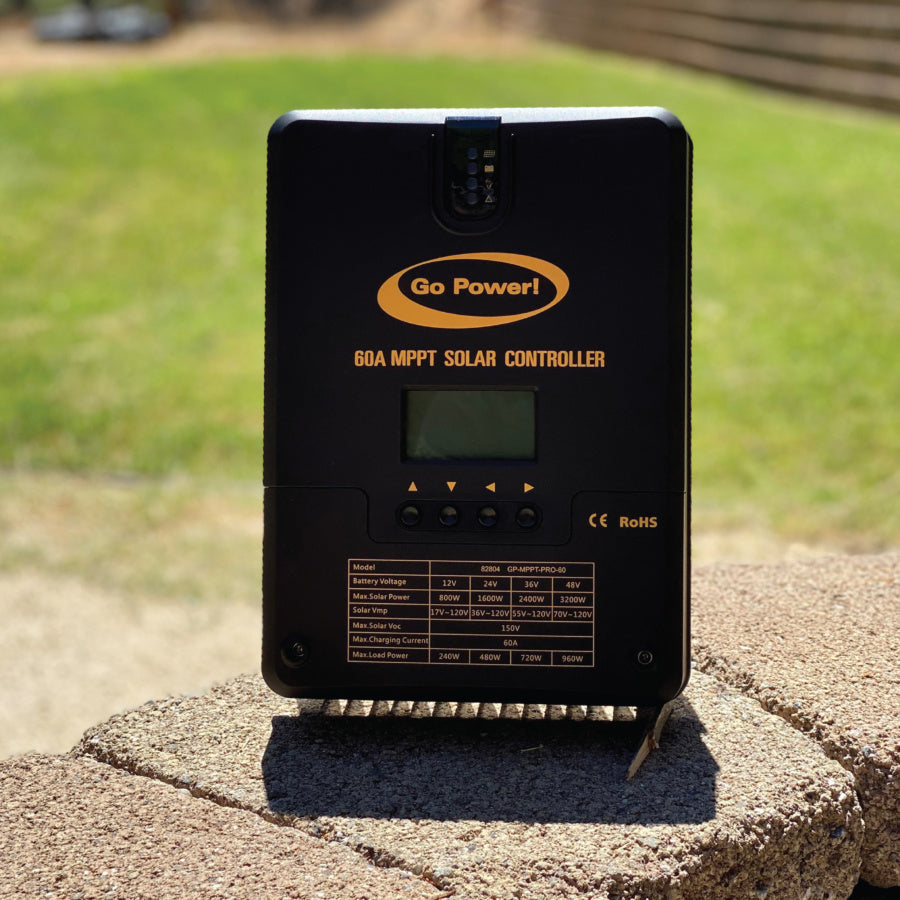

Go Power!'s largest solar controller. This 60 Amp MPPT Solar Controller uses Maximum Power Point Tracking (MPPT) charging with up to 98% efficiency.
Regulates and prevents the solar panel from overcharging batteries. Maximum Power Point Tracking (MPPT) charging and 4 battery charging profiles.
- The most efficient MPPT controller for RVs
- Compatible with all battery types, including Lithium
- Maximizes all power from your solar modules
- Easy-to-read back-lit digital remote display
- Stackable: add additional controllers to expand your solar array
- Included in our larger, multi-panel solar kits
- 5-year warranty
Optional Accessories

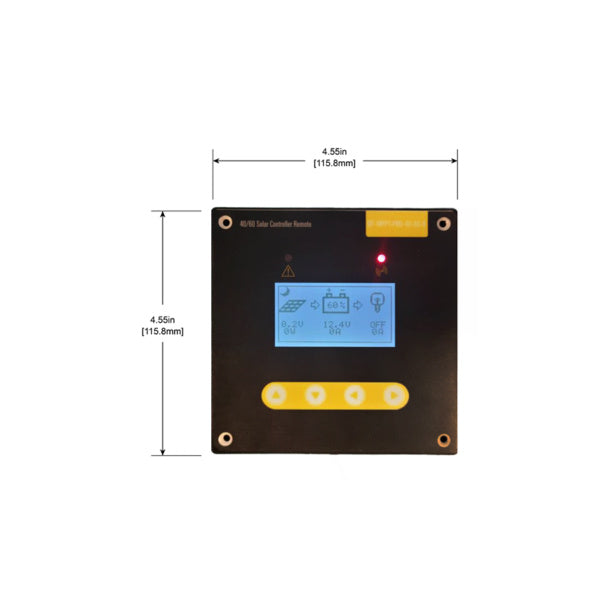

- Surface-mounted remote display; shows the charge current to the battery, battery voltage and battery-state-of-charge (SOC) - (GP-MPPT-PRO-R)
- Bluetooth® Wireless Technology Dongle; works seamlessly with the Go Power! Connect app to provide wireless monitoring of the controller's parameters and data view (GP-MPPT-PRO-BT-1)

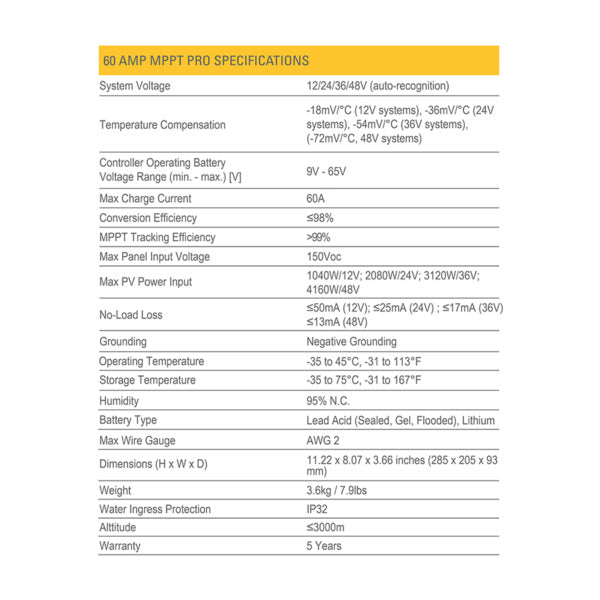

Specs
|
System Voltage |
12/24/36/48V (auto-recognition) |
|
Temperature Compensation |
-18mV/°C (12V systems), -36mV/°C (24V |
|
Controller Operating Battery Voltage Range (min. – max.) [V] |
9V – 65V |
|
Max Charge Current |
60A |
|
Float Charge (Default= SEALED) |
13.8/27.6V (25°C) |
|
Main Charge (Default= SEALED) |
14.1/28.2V (25°C), 0.5h Daily |
|
Boost Charge (Default- SEALED) |
14.4/28.8V (25°C), 2h, Activation: Battery Voltage <12.3/24.6V |
|
Equalization Charge (Flooded) |
14.8/29.8 (25°C),2h, Activation: Battery Voltage <12.1/24.2V (at least every 30 days) |
|
Over-Voltage Protection |
15.5/31.0V |
|
Max Panel Input Voltage |
150Voc |
|
Max PV Power Input |
1040W/12V; 2080W/24V; 3120W/36V; 4160W/48V
|
|
Min PV Voltage Input |
16V (12V Systems) / 33V (24V Systems) |
|
Idle Self-Consumption |
0.7W (60mA typical at 12.0V, 30mA typical at 24.0V) |
|
Grounding |
Negative Grounding |
|
Ambient Temperature |
-40° to +60° C |
|
Battery Type |
Lead Acid (Sealed, Gel, Flooded), Lithium |
|
Max Wire Cross Section |
AWG 2 |
|

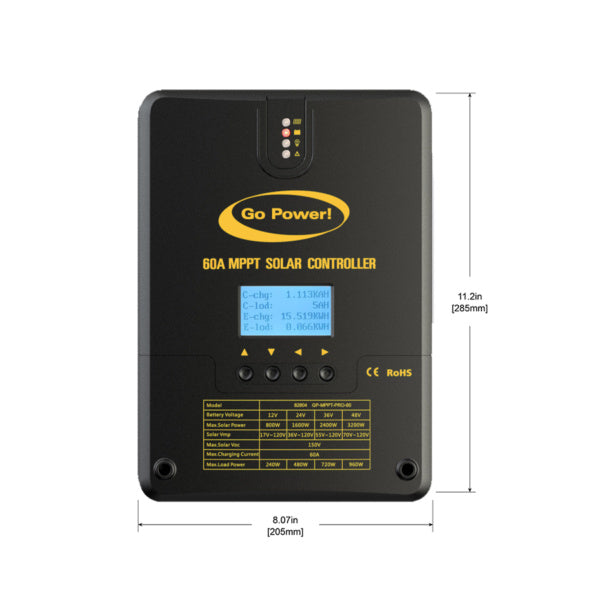

Dimensions |
11.22 x 8.07 x 3.66 inches (285 x 205 x 93 mm) |
|
Weight |
3.6kg / 7.9lbs |
|
Type of Protection |
IP32 |
|
Warranty |
5 Years |
