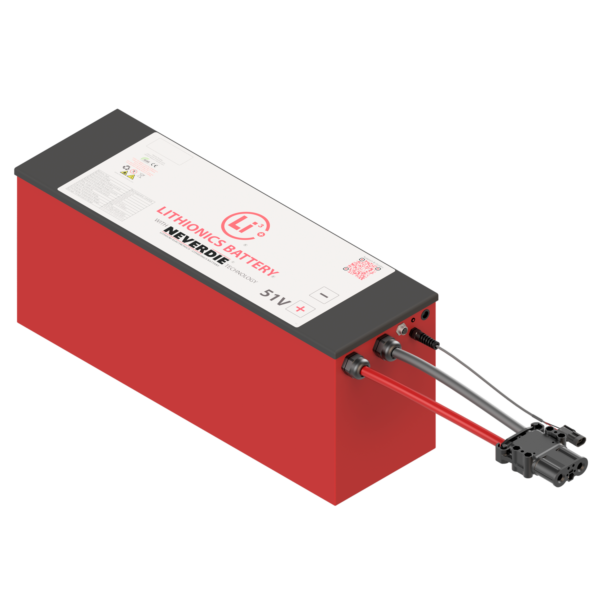

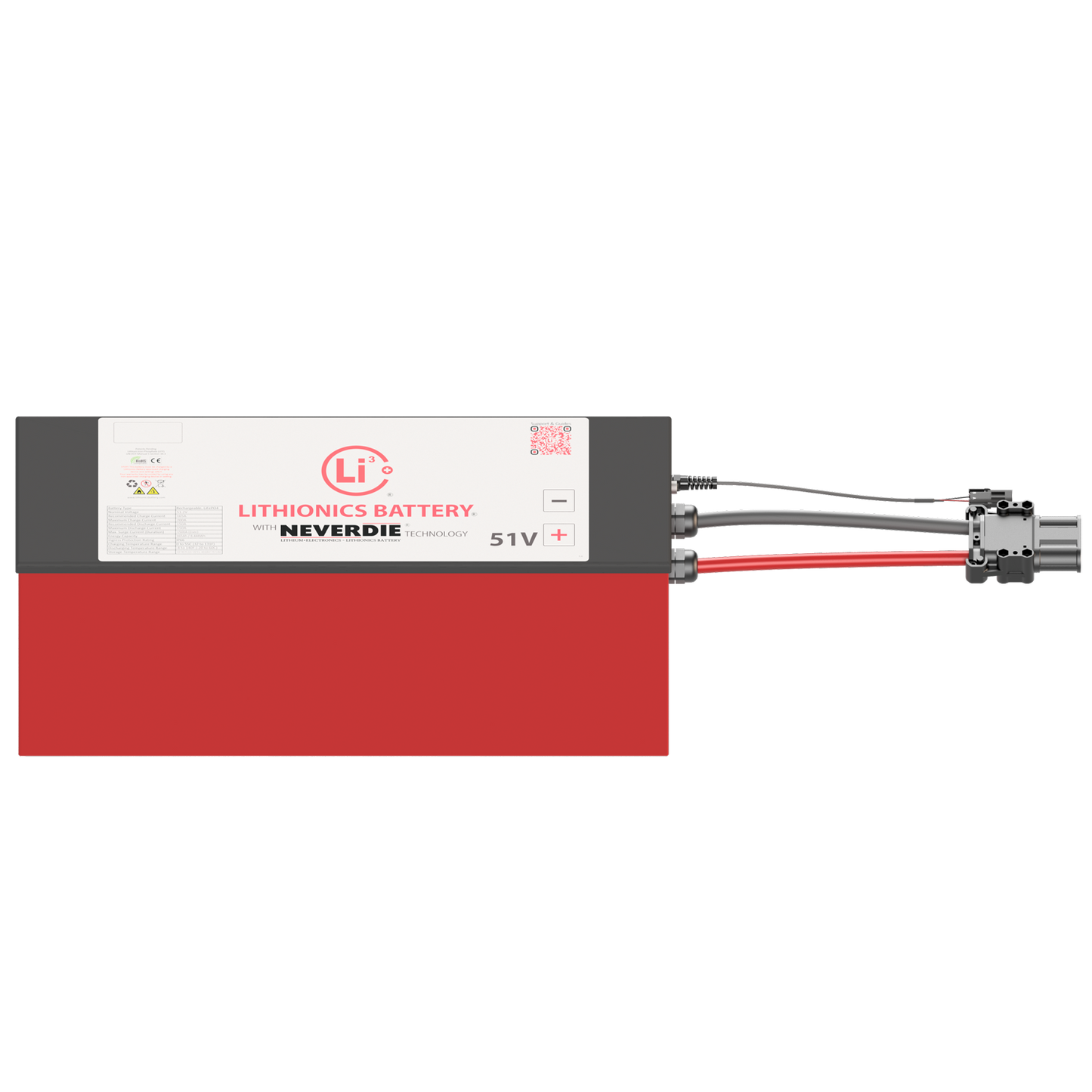

Lithionics 51V 165Ah E2609 GTO Module

MODEL NUMBER: GTO51V165A-E2609-DIN-HK

ENERGY:

165 AMP HOURS

PULSE AMPS: 1500 (1SEC)

8448 WATT-HOURS

EXTERNAL BMS REQUIRED

BMS SOLD SEPARATELY. SEE BMS DATA SHEET PROVIDED BY LITHIONICS BATTERY®.

Item

Model:
GTO51V165A-E2609-DIN-HK
Nominal Voltage:
51.2V
Nominal Capacity:
165 AH
Nominal Watt Hours:
8448 WH
Internal Resistance:
<300 milliohms
Charge

Charging temperature range:
32F to 140°F (0 to 60℃) OR -4F (-20C) with Heater Kit
Charge voltage:
57.6V
Recommended float charge voltage:
54.4V
Recommended charge current:
165A
Allowed max charge current:
200A
Discharge

Discharging temperature range:
22 to 140°F (-30 to 60°C)
Output Voltage Range:
46.4V to 57.6V
Recommended discharge current:
150A
Max discharge current:
150A
Pulse discharge current:
1500 Amps (1 SEC)
Discharge cut-off voltage:
NeverDie® Power Reserve @ 48.00V Low-Voltage Cut-Off @46.4V

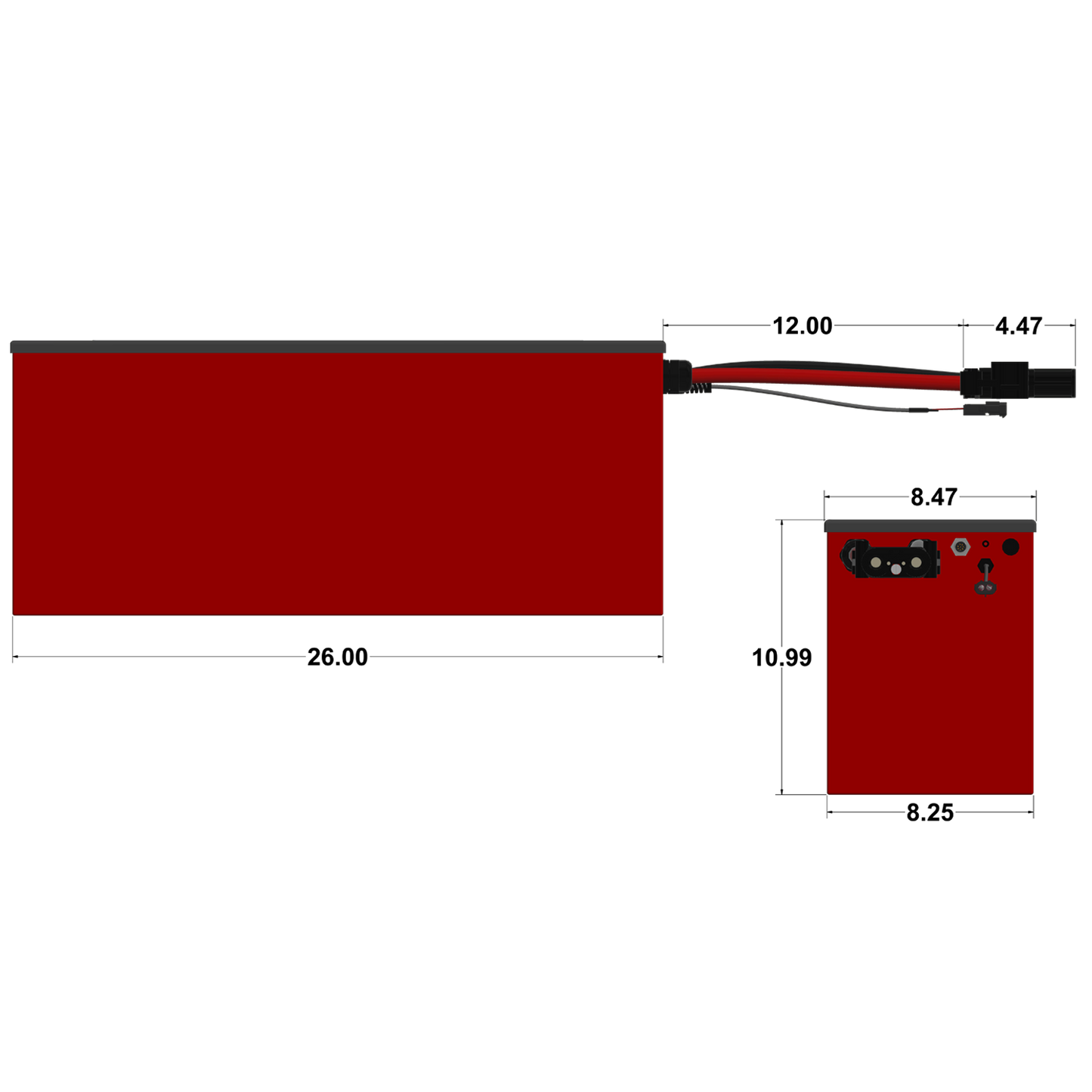

Mechanical characteristics

Length:
26in
Width:
8.25in
Height:
10.5in
Weight:
Approx. 132lbs
Storage

Storage Temperature & Humidity Range:
< 1 Month
-4~95°F (-20~35°C), 45~75%RH
< 3 Months
14~86°F (-10~30°C), 45~75%RH
Recommended storage
59~95°F (15~35°C),45%RH~75%RH
Self-discharge rate:
Residual capacity
≤3% per month; ≤15% per year
Reversible capacity
≤1.5%per month; ≤8% per year
Long Term Storage:

If the battery needs to be stored for > 3 months the voltage should be 52.8V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
