Raceline 947B Scout Van
Raceline 947B Scout Van
Regular price
$299.00 USD
Regular price
Sale price
$299.00 USD
Unit price
per
Couldn't load pickup availability

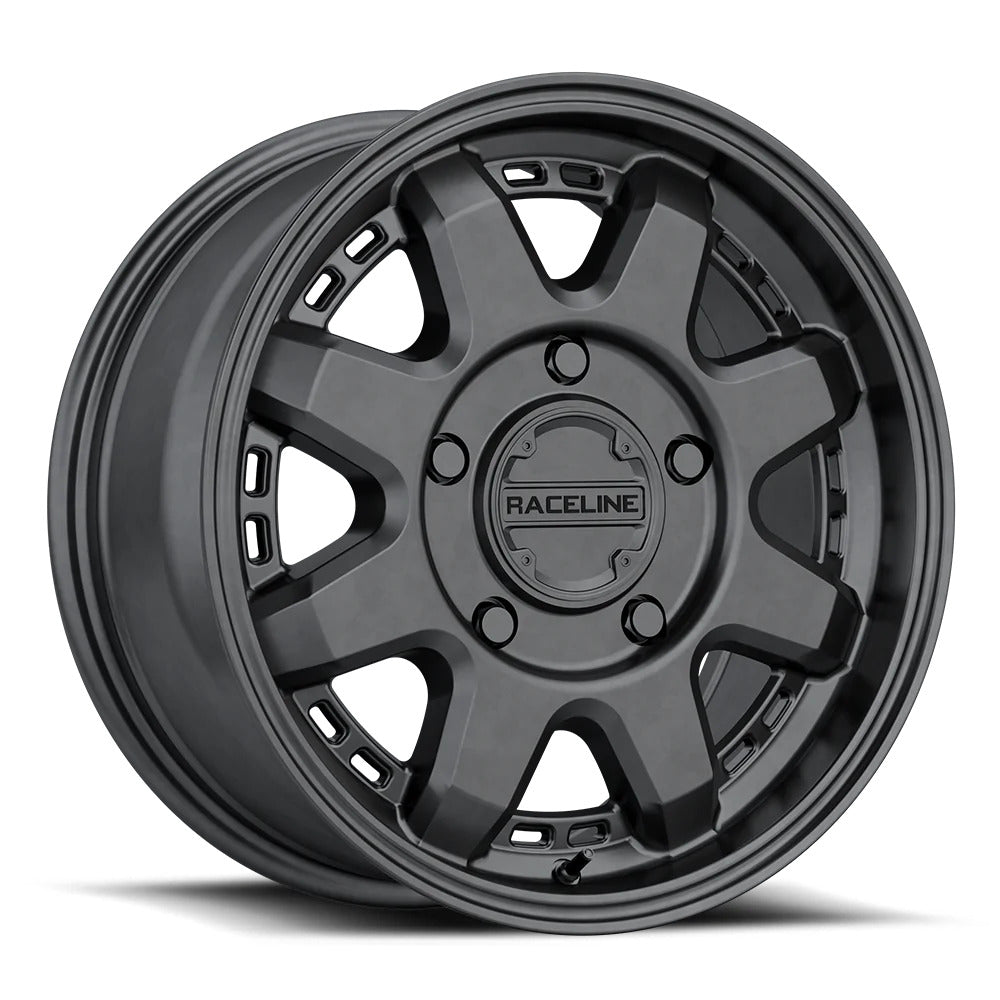

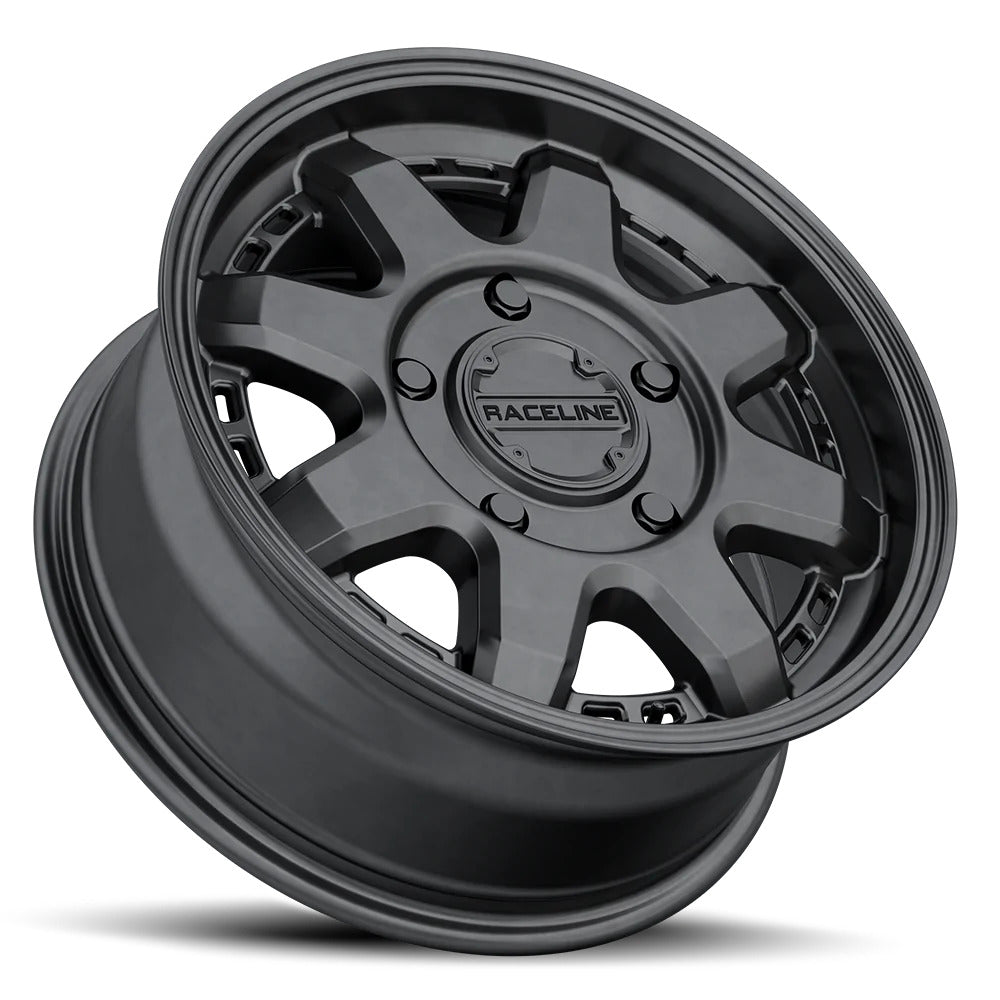

- Rally inspired 8-spoke design with vented barrel feature
- Constructed out of heavy duty A356 aluminum
- Available in Satin Black
- Available in 17”
- For Sprinters, Promasters, Transits
- Passes or exceeds all DOT standard load ratings
- Includes a Lifetime Structural Warranty (limitations may apply)
- The Official Wheel of SCORE International Off-Road Racing Series

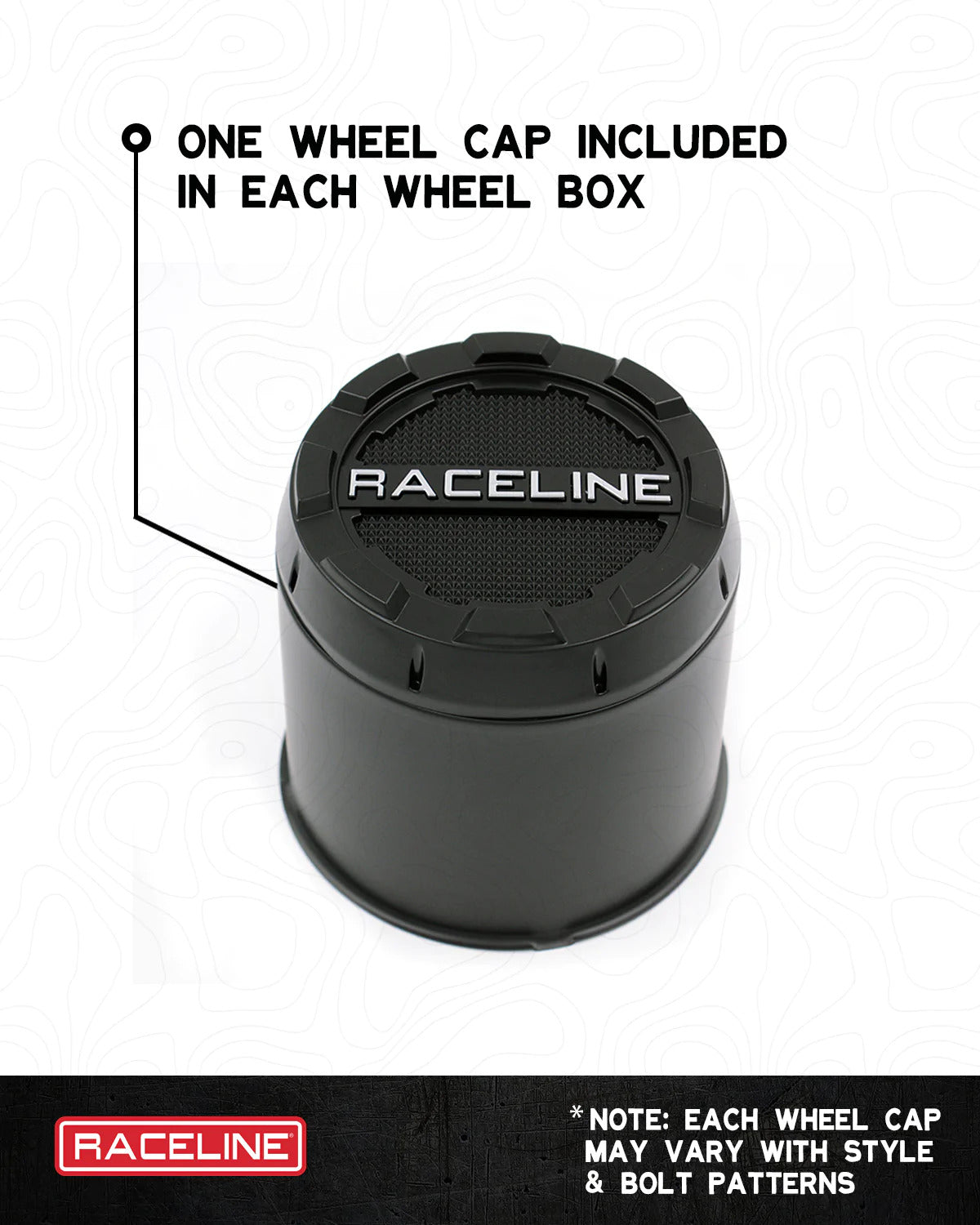

| Part Number | Size | Bolt Pattern (mm) | Offset (mm) | Back Space (Inches) | Hub Bore (mm) | Load Rating (Lb.) | Weight | Cap Part Number |
|---|---|---|---|---|---|---|---|---|
| 947B-77531+50 | 17X7.5 | 5X130 | 50 | 6.22 | 78.1 | 3650 | 29 | CPR947-63-B |
| 947B-77556+50 | 17X7.5 | 5X160 | 50 | 6.22 | 65.1 | 3650 | 29 | CPR947-56-B |
| 947B-77563+50 | 17X7.5 | 6X130 | 50 | 6.22 | 84.10 | 3650 | 29 | CPR947-63-B |
