Vitrifrigo C115iX OCX2 Front-Loading Refrigerator w/ Freezer Compartment - Stainless Steel
Vitrifrigo C115iX OCX2 Front-Loading Refrigerator w/ Freezer Compartment - Stainless Steel
STAINLESS STEEL REFRIGERATORS-FREEZERS
THE NEW OCX2 SERIES
The Stainless Steel Series has been completely updated in both design and function. The stylish new square edge door design with the Steelock positive latch handle has the added functionality of a vent position for air circulation during periods of non-use preventing mould or bad odours in the fridge. The single section, stainless steel fitting frame allows the fridge to be securely fixed either with the door flush or proud of your furniture and has integrated vent slots to improve air flow and the efficiency of the cooling unit behind.
TECHNICAL DATA
| Total volume lt | 115 |
| Freezer volume lt | 17,1 |
| Net weight kg. | 32 |
| Power supply | 12/24Vdc (also available with dual electronic box 12/24Vdc - 100-240Vac 50/60Hz) |
| Nominal consumption | 45W |
| Overall width mm. | 588 |
| Overall height mm. | 780 |
| Overall depth mm. | 558 |
| Also available in "fridge only" version (without freezer compartment) | yes (C115iX version only) |
| Reversible door | yes |

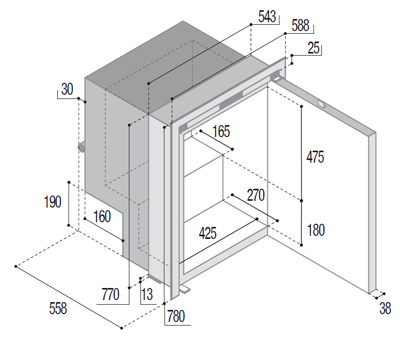

DIMENSIONS
built-in dimension with mounting flange (standard)
| FLUSH FLANGE | SURFACE FLANGE | |
|---|---|---|
| t | 1 | 1 |
| w | 23 1/8 | 23 1/8 |
| h | 30 11/16 | 30 11/16 |
| a | 22 3/16 | 20 7/16 |
| b | 21 5/16 | 21 5/16 |
| c | 30 3/8 | 30 3/8 |
FEATURES
UL Certification
Double Door Position
Double position FLUSH FLANGE - SURFACE FLANGE with one fitting flange
Steelock
design and technology into a "top" locking system
Vent position
important function to avoid unpleasant odours when not in use
D power (standard)
Dual electronic box 12/24Vdc - 100-240Vac 50/60Hz
LED light
High intensity new LED lighting system
"fridge only" version
Available upon request
