Vitrifrigo

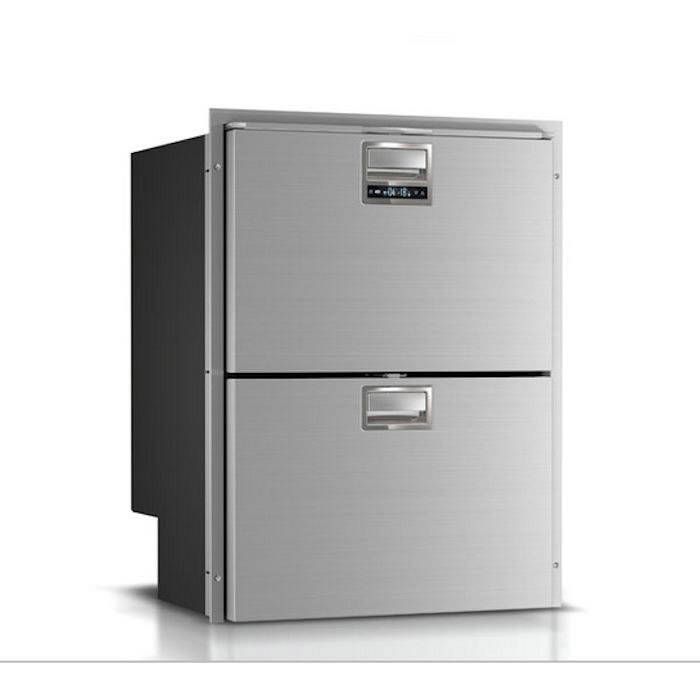

Vitrifrigo DRW180A 5.3 cu ft - Double Drawer Refrigerator / Freezer - Stainless Steel
Vitrifrigo DRW180A 5.3 cu ft - Double Drawer Refrigerator / Freezer - Stainless Steel
DRW180A
The ALL IN ONE... the ONLY ONE
The DRW180A is the latest Vitrifrigo feat to be introduced to the market. A double drawer refrigerator/freezer with an innovative "all in one" function. The two drawers can separately manage different temperatures, allowing you to get one single unit for all your needs. The various stylistic and technological innovations of the DRW180A have been awarded with the "Special Mention" at the prestigious DAME Award during the METS 2018.
TECHNICAL DATA
| Total volume (Cu. Ft.) | 5.3 |
| Net weight (Lbs.) | 121.3 |
| Power supply | 12/24Vdc - 100/240Vac |
| Overall width (In.) | 26 1/4 |
| Overall height (In.) | 34 7/16 |
| Overall depth (In.) | 23 7/16 |
| Max absorption during defrost | 130W (12/24Vdc) - 126W (115/230Vac) |
| Max consumption during defrost | 10.5 (12/24Vdc) -1.1 (115/230Vac) |
| Max consumption (normal operation) | 8A (12V) - 4A (24Vdc) - 0.9A (115Vdc) - 0.46A (230Vdc) |
| Daily consumption (T=77°F) - refrigerator / refrigerator (39°F / 39°F) | 0.6 kWh/24h (12/24Vdc) - 0.66 kWh/24h (115/230Vac) |
| Daily consumption (T=77°F) - refrigerator / freezer (39°F / 0°F) | 1.1 kWh/24h (12/24Vdc) - 1.21 kWh/24h (115/230Vac) |
| Daily consumption (T=77°F) - freezer / freezer (0°F / 0°F) | 1.2 kWh/24h (12/24Vdc) - 1.38 kWh/24h (115/230Vac) |
DIMENSIONS
overall dimension with Surface Flange
built-in dimension with mounting flange (standard)
| FLUSH FLANGE | SURFACE FLANGE | |
|---|---|---|
| t | 1 | 1 |
| w | 26 1/4 | 26 1/4 |
| h | 34 7/16 | 34 7/16 |
| a | 23 1/2 | 21 9/16 |
| b |
24 7/16 |
24 7/16 |
| c | 33 7/8 | 33 7/8 |
FEATURES
All In One
refrigerator+freezer, freezer+freezer, refrigerator+refrigerator
R290 Gas
The DRW series uses R290 natural refrigerant with low GWP
3-Star freezer
The freezer reaches 0°F with an ambient temperature up to 109°F
Double Door Position
Double position FLUSH FLANGE - SURFACE FLANGE with one fitting flange
Total No Frost
The new ventilation system ensures better food storage
New Drawers
New generation soft close runners and internal dividers
D power (standard)
Dual electronic box 12/24Vdc - 100-240Vac 50/60Hz
LED light
High brightness LED light system for a better internal viewing
