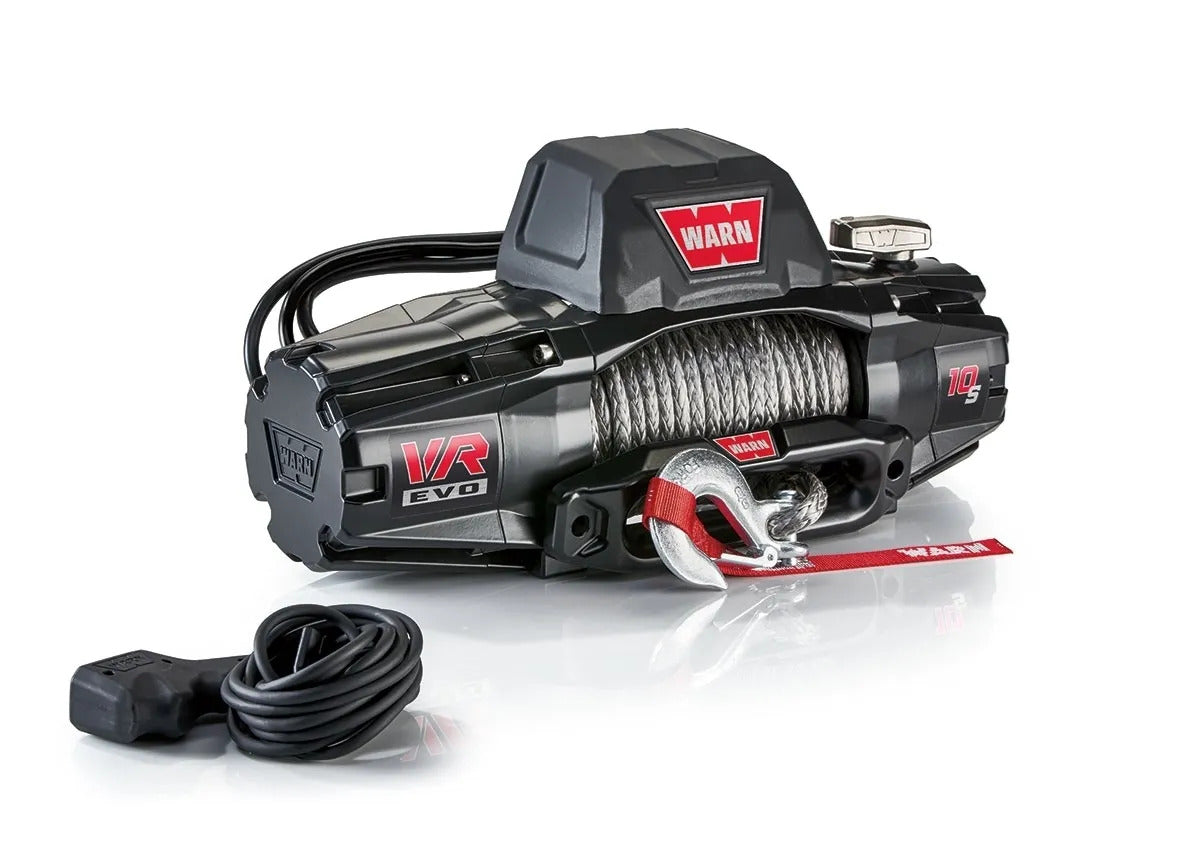

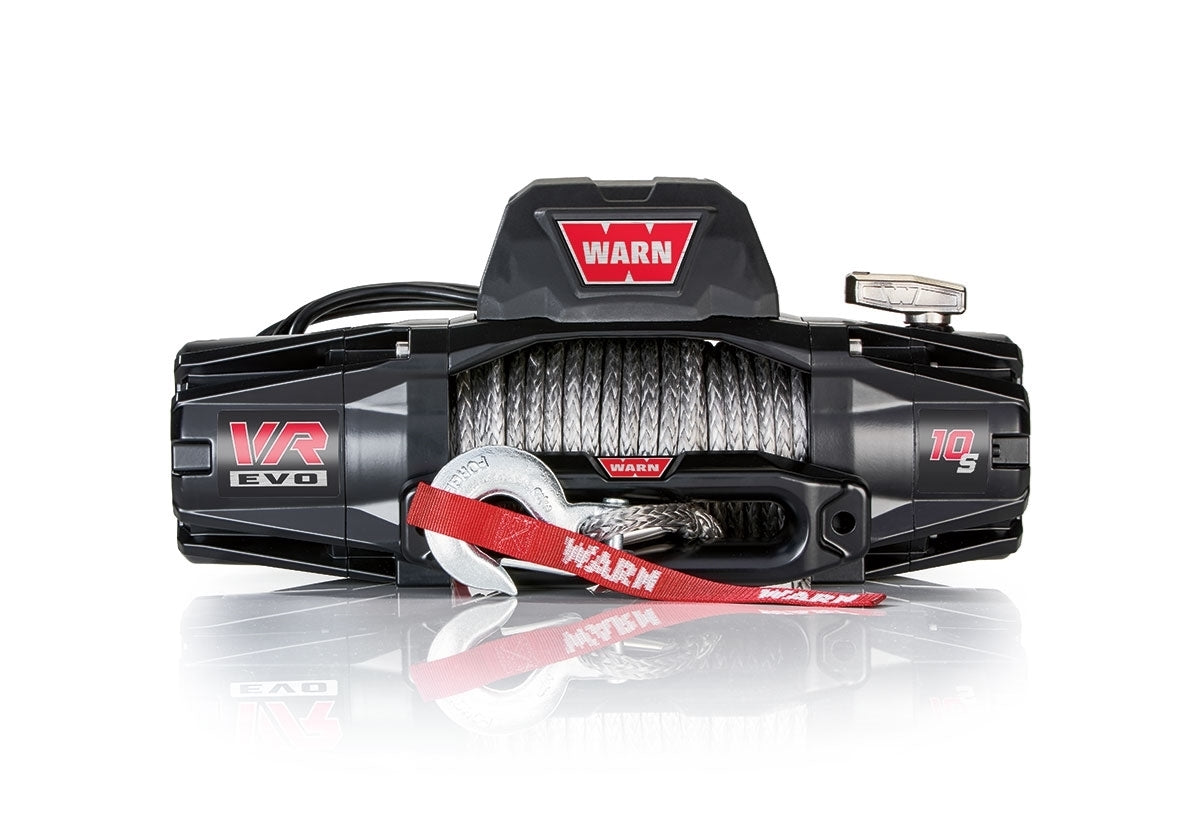

WARN VR EVO 10-S Winch w/ Synthetic Rope - 103253

SKU 103253
Sold out
Original price $864.99 - Original price $864.99
Original price
$864.99
$864.99 - $864.99
Current price $864.99

Not seeing your wholesale pricing? LOG IN or SIGN UP

FREE FREIGHT ON ORDERS $499+

Ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs. The VR EVO 10 features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility.

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please check dimensions and install guide to confirm fitment.

OVERVIEW

With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

  • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
  • IP68-rated waterproof winch construction keeps the elements out
  • High-performance Albright contactor delivers maximum reliability
  • Control packs can be relocated for low-profile installations
  • Durable, one-piece cast-aluminum tie-plate for added strength and durability
  • Two-in-one remote with wired AND wireless options for ease of use and versatility
  • Limited lifetime warranty for mechanical parts and 7 years on the electrical

DOWNLOADS

SPECS

TYPE Electric
RECOMMENDED USE Vehicle Recovery
MOUNT TYPE Vehicle Mount
VOLTAGE 12 Volt DC
ELECTRICAL CONTROL TYPE Albright Contactor
MOTOR TYPE Series Wound
DRIVE GEAR TYPE 3-Stage Planetary
GEAR REDUCTION RATIO 218:1
FREE SPOOLING Yes
BRAKE TYPE Spring
LINE DIAMETER (IN) 3/8 Inch
LINE LENGTH (FT) 90
LINE MATERIAL Synthetic
FAIRLEAD TYPE Hawse
REMOTE TYPE 2 in 1 plug in remote with wireless capability
MOUNTING HOLE QUANTITY 4
MOUNTING PATTERN LENGTH (IN) 10 Inch
MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
INCLUDES MOUNTING HARDWARE Yes
COLOR Black
DRUM MATERIAL Steel
MAX LINE PULL/ LINE SPEED 10,000 pound/5.2 feet per minute
MAX AMP DRAW/ LINE PULL 358 Amps / 10,000 lbs
