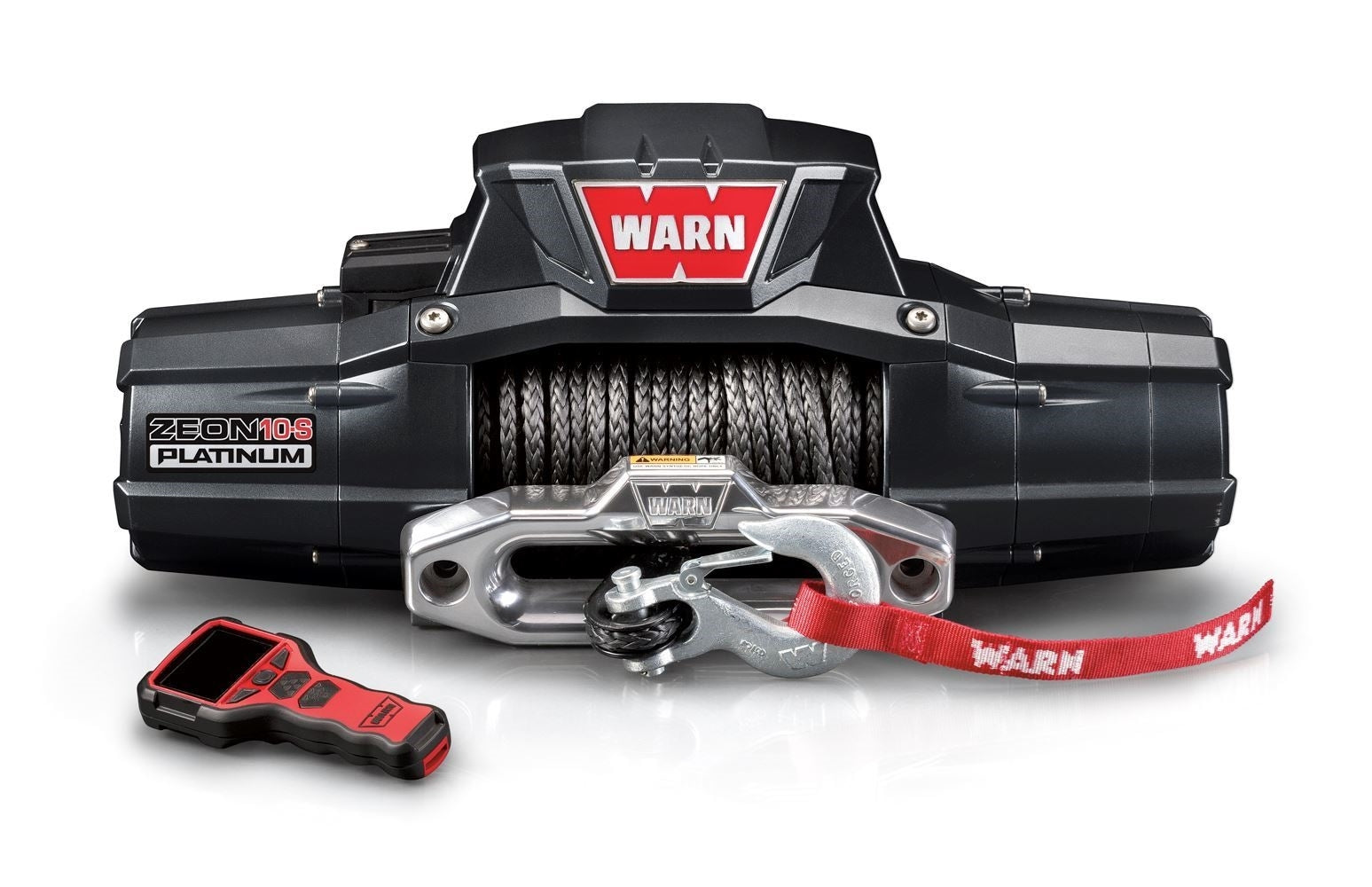

WARN ZEON 10-S Platinum Winch - 92815

WARN'S TOP-OF-THE-LINE WINCH

The key to going outback is getting yourself back out. From the top of Alaska’s remote Dalton Highway to the end of Tierra del Fuego, adventure-seeking overlanders demand and depend on the durable reliability that only comes with the ZEON Platinum. It’s the top of the winching food chain.

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please check dimensions and mounting data to confirm fitment prior to ordering.

WINCHING IN THE 21ST CENTURY

With state-of-the-art features, cutting-edge technology, and world-class engineering, the ZEON Platinum is indeed the future of winching. Its one-of-a-kind Advanced Wireless Remote controls the clutch, power in/out, and displays motor temperature and vehicle battery info. It also can control two, 12-volt accessories that can be plugged directly into the winch.

  • High-speed motor and unique gear train provides 33% faster line speed than the ZEON (Up to 70% faster than other winches) and increased durability
  • Plug two 12V accessories directly into the winch and control with remote—no drilling through the firewall
  • Full IP68 waterproofing keeps water and the elements out
  • Large diameter drum reduces rope wear, dissipates brake heat, and features a unique rope anchor system for strength
  • Convertible control pack for upright or low-profile mounting options
  • Best-in-class cone brake; holds the winch’s full-rated load
  • Available in 10,000 lb. and 12,000 lb. capacities with lightweight, easy-to-handle Spydura synthetic rope or durable steel rope
  • Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)

FEATURES

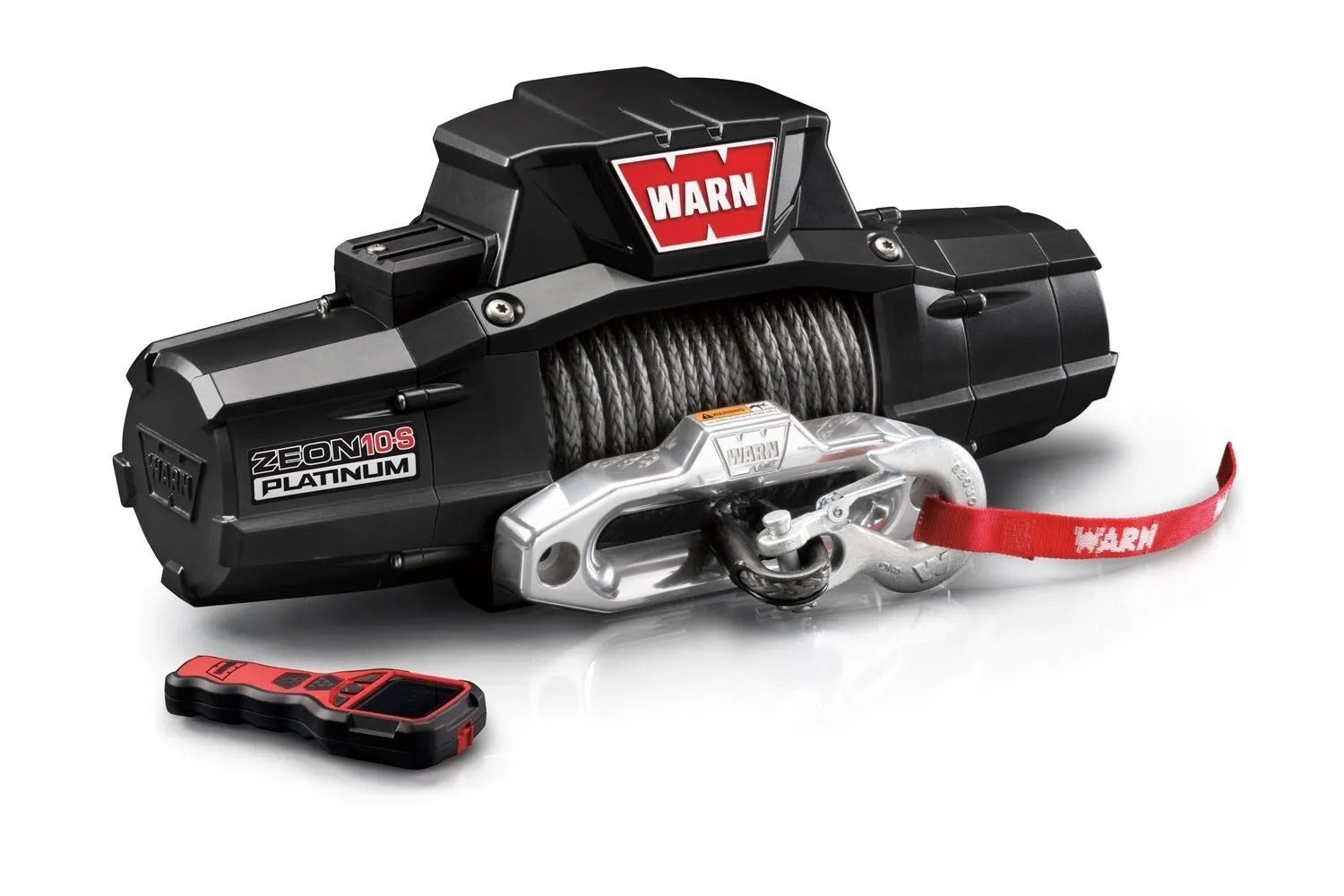

The ZEON 10-S Platinum is built for those who push the limits-with double the durability, 20% faster line speed, and extreme IP68-rated waterproofing. The Advanced Wireless Remote controls not only the winch, but also the clutch and other accessories. With a 10,000 lb. pulling capacity, high-performance motor package, and Spydura® Synthetic Rope, you'll be equipped to go places others only dream about.

  • Rated line pull of 10,000 lbs. (4536 kg) single-line
  • Comes with 100' of 3/8" (30m of 9.52mm) Spydura synthetic rope with a matte aluminum hawse fairlead.
  • Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winch-out, and freespool operations. The manual clutch has been eliminated. No more re-engaging a manual clutch, with frozen fingers while standing in the mud.
  • The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter.
  • All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating.
  • Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance-exceeding 400 hours of salt-spray testing.
  • Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation.
  • Extreme waterproofing meets rigorous IP68 standards--the highest rating in the WARN Truck/SUV winch lineup.
  • Automatic mechanical cone brake offers excellent control while winching.
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance.
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

    SPECS

    TYPE Electric
    MOUNT TYPE Vehicle Mounted
    RECOMMENDED USE Vehicle Recovery
    VOLTAGE 12 Volt
    ELECTRICAL CONTROL TYPE Contactors
    MOTOR TYPE Series Wound
    THERMAL SHUTOFF No
    DRIVE GEAR TYPE Planetary
    GEAR REDUCTION RATIO 162:1
    FREE SPOOLING Yes
    BRAKE TYPE Mechanical Cone
    LINE DIAMETER (IN) 3/8 Inch
    LINE LENGTH (FT) 100 Feet
    LINE MATERIAL Synthetic
    FAIRLEAD TYPE Hawse
    REMOTE TYPE Wireless

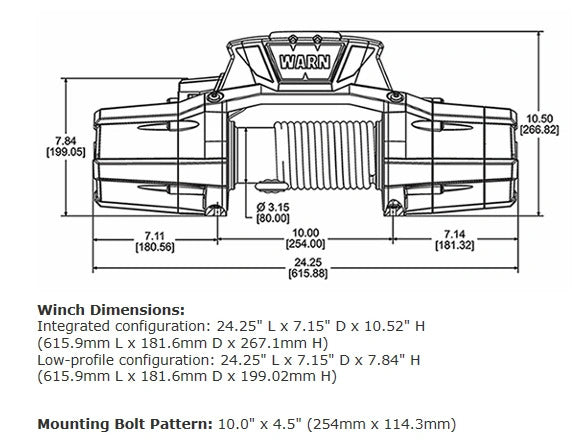

    MOUNTING HOLE QUANTITY 4
    MOUNTING PATTERN LENGTH (IN) 10 Inch
    MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
    INCLUDES MOUNTING HARDWARE Yes
    COLOR Black
    DRUM MATERIAL Aluminum

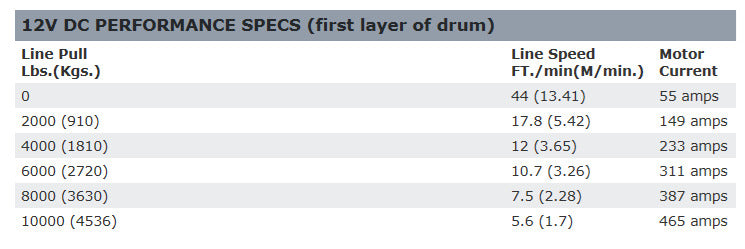

    MAX LINE PULL/ LINE SPEED 10000 Pound/ 5.6 Feet Per Minute
    MAX AMP DRAW/ LINE PULL 465 Amp Draw/ 10000 Pound
