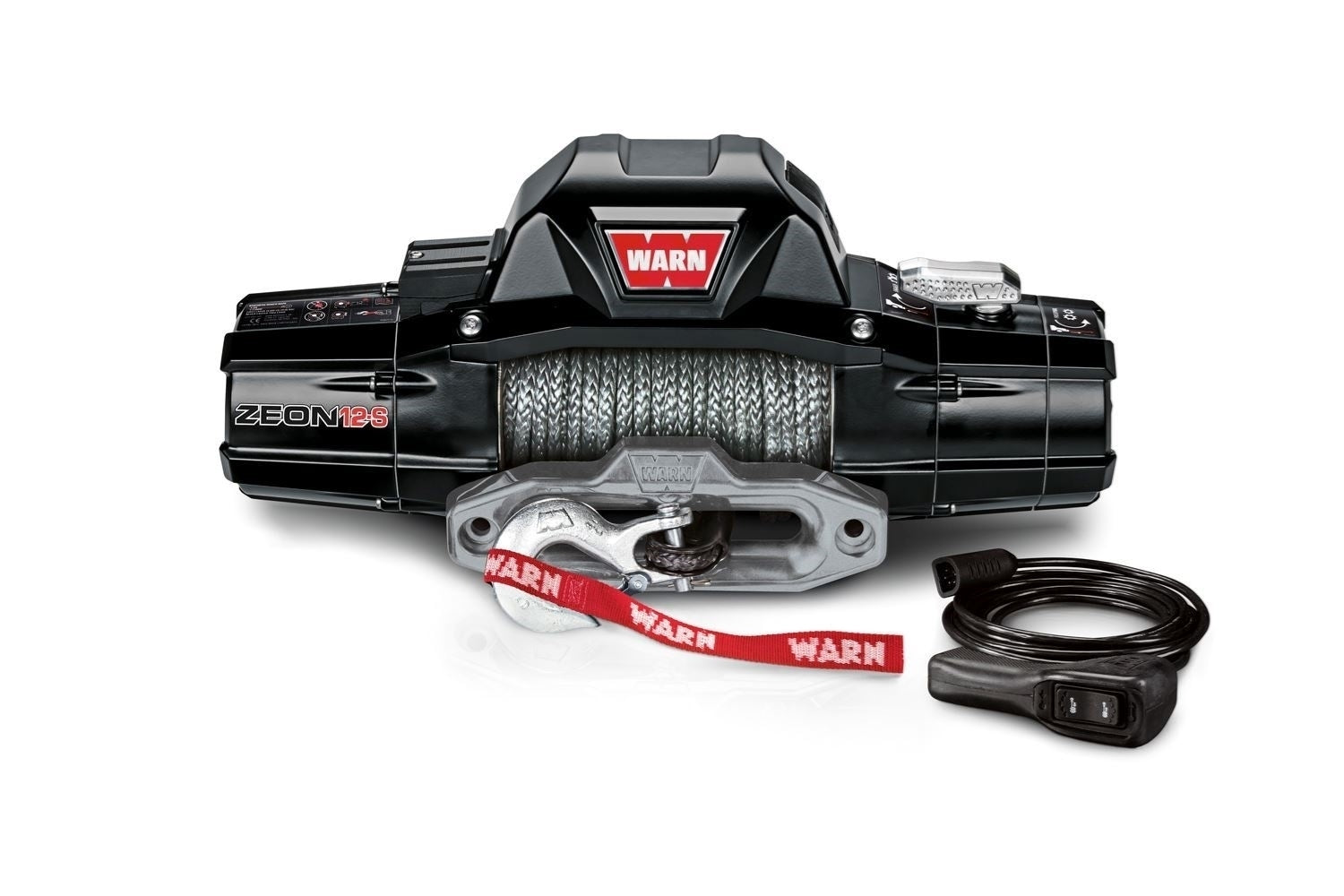

WARN ZEON 12-S Winch - 95950

ZEON: ENABLING FEARLESSNESS WORLDWIDE

Rubicon. Sledgehammer. Hell’s Revenge. Legendary trails are littered with the ghosts of lesser winches. But those are the kinds of places that salute the WARN Premium Series Winch: ZEON. As reliable as a swollen creek is fast, this winch stands as a top performer on the world’s toughest trails.

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please check dimensions and install guide to confirm fitment.

ADVANCED, CAPABLE, AND STRONG

The WARN ZEON continues to redefine winching. ZEON is the premium winch line for trucks, Jeeps, and SUVs, and provides unmatched durability, performance, and style. These winches have become top sellers for a good reason: They’ve been the top choice of editors and off-roaders worldwide, and look as good as they perform.

  • Automotive-grade busbars replace unsightly wires for greater electrical efficiency, superior connection, and a cleaner look
  • Full metal armor protects vital components from impact and damage
  • Twice the corrosion resistance of entry-level winches; rated to 408 hours in rigorous salt-spray tests
  • 33 ft/min no-load line speed—27% faster than our Standard Duty winches
  • Full IP68 waterproofing to keep water and the elements out
  • Large diameter drum for longer rope life; unique and durable rope attachment point
  • Convertible control pack for upright or low-profile mounting options
  • Available in 8,000, 10,000, and 12,000 lb. capacities with lightweight, easy-to-handle Spydura synthetic rope or durable steel rope
  • Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)
  • 2X the corrosion resistance of entry-level winches
  • 33 Feet/Min No-Load Line Speed
  • IP68 Water and Dust Proofing Rated
  • 408 Hours in Rigorous Salt-Spray Tests
  • 8K/10/12K Pound Pulling Capacities Available


FEATURES

The WARN ZEON® has proven itself in the field and among off roaders. Now you can get the 12,000 Pounds capacity ZEON winch with Spydura® Pro synthetic rope. The new ZEON 12-S winch trims weight but keeps plenty of muscle for the big jobs and the toughest rescues. And the light, easy-to-handle synthetic rope makes any winching situation a bit easier. It's the perfect choice for heavily loaded off road vehicles.

  • Legendary WARN reliability and performance; 12,000 lb. (5443 kg) capacity - perfect for the bigger vehicles.
  • Unique exterior styling and symmetrical design give this winch a look that is advanced, capable, and strong.
  • New-design planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
  • Flat black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion.
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
  • Aluminum winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
  • Robust aluminum structure is durable and helps dissipate heat.
  • Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup.
  • Contactor control for extreme reliability and weather resistance.
  • Automatic mechanical cone brake holds the full rated load and offers excellent control while winching.
  • Ultra-durable metal-reinforced rubberized corded remote with 12' lead.
  • Includes 80' of 3/8" Spydura Pro synthetic rope and aluminum hawse failead with powder-coat finish.
  • Proprietary and strongest-in-class Spydura Pro synthetic rope is found on many military vehicles. This rope features a urathane-coated 12-strand braid, heat treated under tension. A 20 ft. Nomex™ heat sleeve protects the rope on the layer nearest the drum.
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

    SPECS

    TYPE Electric
    MOUNT TYPE Vehicle Mounted
    RECOMMENDED USE Vehicle Recovery
    VOLTAGE 12 Volt
    ELECTRICAL CONTROL TYPE Solenoid
    MOTOR TYPE Series Wound
    THERMAL SHUTOFF No
    DRIVE GEAR TYPE Planetary
    GEAR REDUCTION RATIO 216:1
    FREE SPOOLING Yes
    BRAKE TYPE Mechanical Cone
    LINE DIAMETER (IN) 3/8 Inch
    LINE LENGTH (FT) 80 Feet
    LINE MATERIAL Synthetic
    FAIRLEAD TYPE Hawse
    REMOTE TYPE 12 Feet Lead
    OPERATION TYPE Automatic

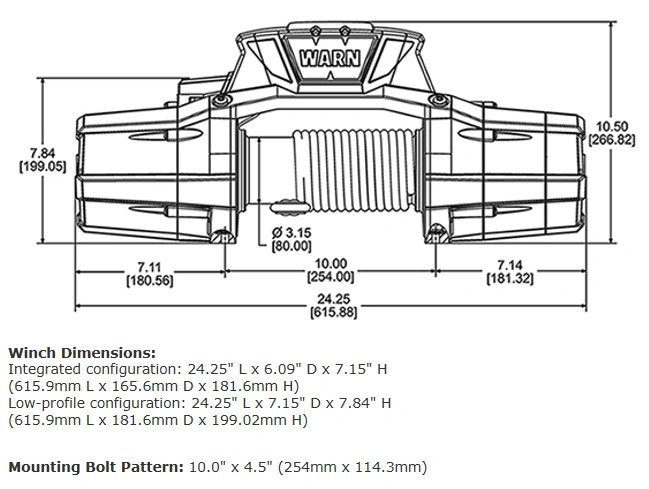

    MOUNTING PATTERN LENGTH (IN) 10 Inch
    MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
    DRUM MATERIAL Aluminum
    COLOR Black

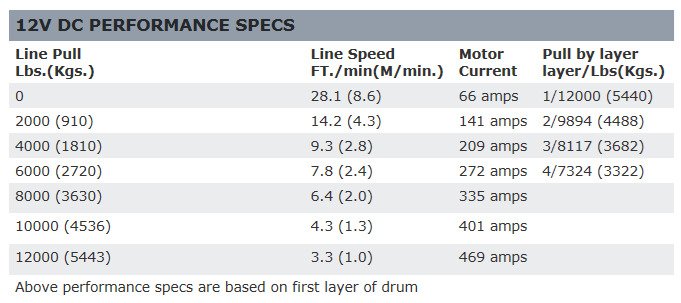

    MAX AMP DRAW/ LINE PULL 469 Amp Draw/ 12000 Pound
    MAX LINE PULL/ LINE SPEED 12000 Pound/ 3.3 Feet Per Minute
