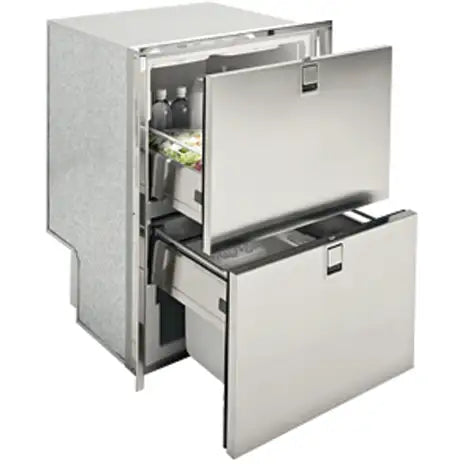

Isotherm Drawer 160 - 5.5 cu ft

The Isotherm Drawer DR 160 Light INOX Refrigerator / Freezer- 5.5 cu. ft. features a user-friendly design, high quality materials and robust construction to ensure a long service life in the marine environment. The lower drawer is the freezer compartment. Both drawers have a positive latching handle and the unit works with AC and DC power.

Features:

• Rugged drawer construction specifically designed for the marine environment
• Positive latching handles and lock mechanisms keep drawers closed even in rough sea conditions
• Universal DC / AC works with common power supplies used worldwide
• User-friendly access and ease of use
• Stainless steel drawer fronts, handles and flange
• The Isotherm warranty is 2 years from the date of purchase on all components and a 5 year limited warranty on the compressor

Specifications:

• Model No. 3160BB3C00017
• Refrigerator Type: Double Drawer
• Interior Light: LED (blue)
• Mount: Built-In / Flush
• Total Volume / Capacity: 5.5 cu. ft.
  • Refrigerator (top): 3.2 cu. ft
  • Freezer (bottom): 2.3 cu. ft
• (2) Pull-out refrigerator drawers
• Compressor: Danfoss BD80F
• Voltage: 12 / 24V DC and 115 / 230V AC (60 / 50 Hz)
• Current Draw: 6.0 Amp @ 12V DC (half at 24V DC)
• Fuse: 15 Amp for 12V DC / 7.5 Amp for 24V DC
• Drawer and 4-Sided Flange Finish: Stainless steel
• Operating Ambient Temperature Range: 32°F - 107°F
• Dimensions (Cut-Out): 33.8" H x 24.25" W x 21.5" D
