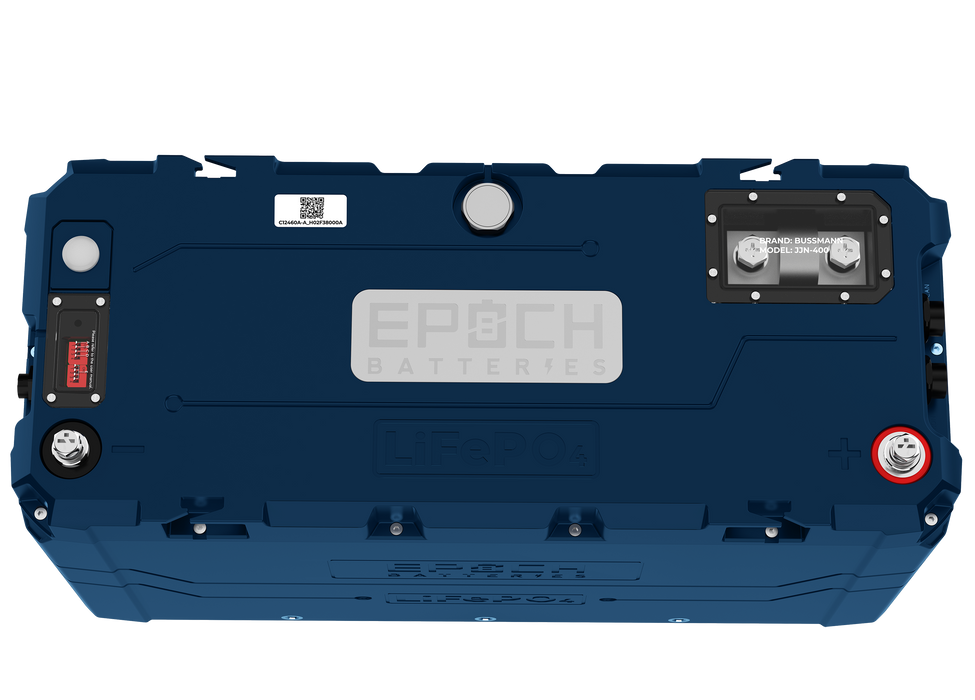

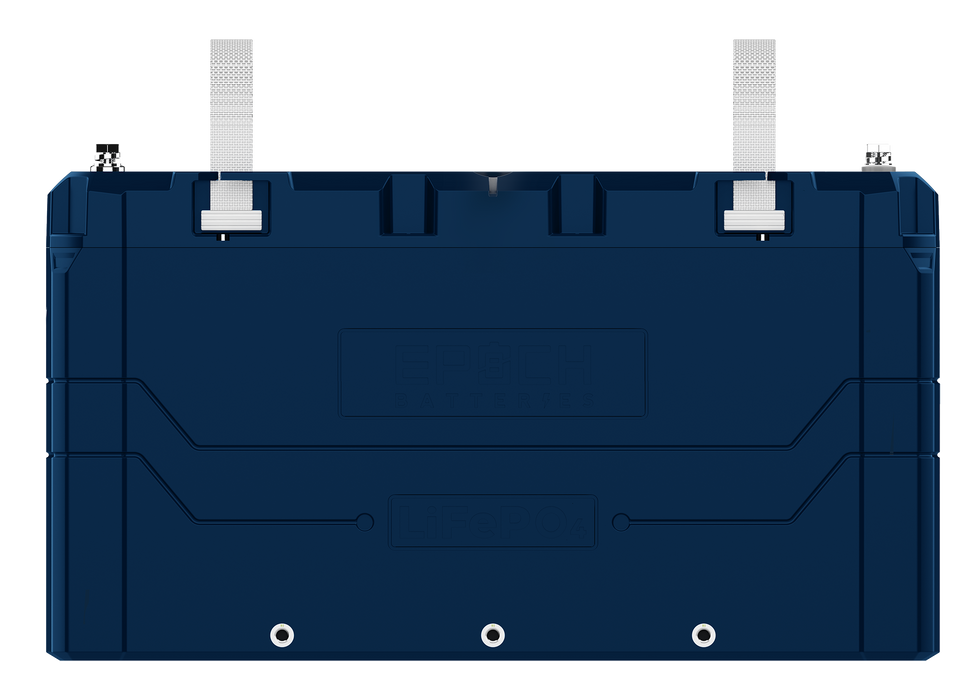

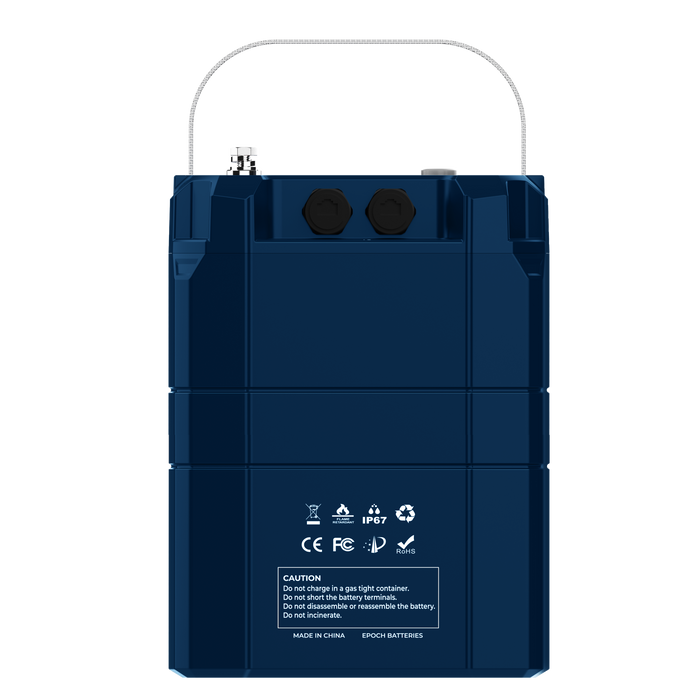

Epoch 12V 460Ah V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery

Epoch 12V 460Ah V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery

SKU C12460A-A
Sold out
$2,199.00 - $2,199.00
$2,199.00
$2,199.00 - $2,199.00
$2,199.00

Not seeing your wholesale pricing? LOG IN or SIGN UP

Special Order: Lead times vary. Contact us to confirm before ordering.

FREE FREIGHT ON ORDERS $499+

V2-T Elite — Key Specs

Quick overview and technical details

Chemistry

LiFePO4

Maintenance-free, long cycle life

Capacity

460Ah @ 12.8V

High usable energy for 12V systems

Continuous (Charge / Discharge)

230A / 230A

Peak Discharge

500A (30s), 1300A (1s)

For short high-load events

IP67 Dust & Waterproof Internal Heating (below 0°C charging) Bluetooth App (iOS/Android) Victron Comms (Parallel up to 16) External Power Button & Gauge Included User-Serviceable 400A EATON Class-T Fuse

Protection & Certifications

  • Built-in Smart Battery Management System (BMS)
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • UL60691 certified internal fuse
  • Cells: UL1642, U9540A, IEC 62619:2022 certified
  • Pack: UL1973 certified
  • 4000+ cycle life & maintenance-free
  • 11 Year Manufacturer Warranty

Configuration

  • Cell Configuration4S2P
  • ChemistryLiFePO4

Current

  • Ah Capacity460Ah
  • Max Continuous Discharge230A
  • Max Continuous Charge230A
  • Max Discharge Peak500A (30s), 1300A (1s)
  • Series / ParallelMax 4S OR Max 16P

Voltage

  • Voltage12.8V
  • Max Charge Voltage14.6V
  • Operating Voltage Range10.0 – 14.6V

Temperature

  • Charge Temp Range-30°C to 55°C (self-heating)
  • Discharge Temp Range-20°C to 55°C
  • Storage Temp0°C to 35°C

Physical

  • Weight97 lb
  • Length20.75 in
  • Width8.5 in
  • Height12 in

IP67 Rated

Experience worry-free adventures with robust IP67 protection. Completely sealed against dust and protected for temporary immersion up to 1 meter for 30 minutes.

Fully Dustproof
Waterproof up to 1m
All-Weather ProtectionSubmersible Design

Non-Victron Charging Settings

Recommended

  • Absorption voltage: 14.2V
  • Absorption time: 15 minutes per battery
  • Float voltage: 13.5V
  • Equalization: Off
  • No temperature compensation: Disabled

Victron Integration (V2-T Elite)

  • Plug with waterproof bung into master blue port.
  • RJ45 cable out of master black port into slave1 blue port.
  • RJ45 cable out of slave1 black port into the next slave blue port; daisy chain up to 16 batteries in parallel.
  • Set DIP switches as per manual.
  • Plug grey RJ45 into Cerbo or Ekrano GX BMS CAN port. For Cerbo MK2: use VE-CAN1 or VE-CAN2 and set port speed to 500 KBPS LV.
  • Confirm Epoch battery appears on GX device list. In Details, verify modules online equals batteries installed and total Ah equals installed Ah.
  • On GX: enable DVCC; set controlling BMS to Epoch; set battery monitor to Epoch.
  • During charging, GX inverter tile should show External Control (not while inverting). System cycles to 14.2V absorption (minimum ~15 min per battery) then 13.5V float.
  • Recommendation: manually program Multiplus/Quattro and other charge sources to the same parameters in case CAN communication is lost.

Fuse & Current Ratings

  • 400A EATON Class-T fuse (user serviceable)
  • Max continuous discharge: 230A
  • Max continuous charge: 230A
  • Max discharge peak: 500A (30 seconds), 1300A (1 second)
