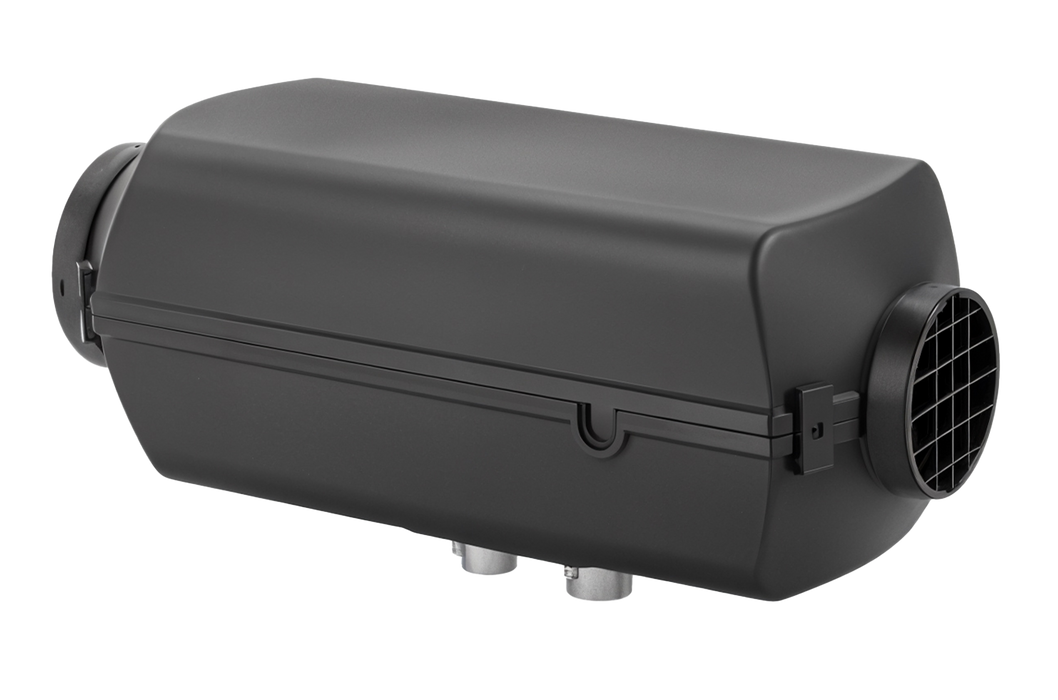

AUTOTERM Air 4D
SKU AT/Air/4D-12
Original price
$799.00
-
Original price
$799.00
Original price
$799.00
$799.00
-
$799.00
Current price
$799.00
FREE FREIGHT ON ORDERS $499+
The top choice for efficiently heating medium-sized compartments or interiors. Perfect for any vehicle, from van compartments to boat cabins!
Power: 4 kW
Altitude: 4200m
Certified: R10 & R122
KEY BENEFITS
Reliability
Reliable operation in low temperatures as low as -45°C/-49°F
High Altitude
This heater is equipped with a high altitude sensor which allows it to heat in altitude up to 4200m.
Great Fitment
AUTOTERM Air 4D can be installed or retrofitted in nearly any land vehicle or marine vessel.
High Efficiency
The heater consumes only 0.42 - 1.00 liters of diesel per hour, depending on set power.
Extended Warranty
If installation is registered by a certified AUTOTERM service, the warranty extends to 3 years or 2000 hours.

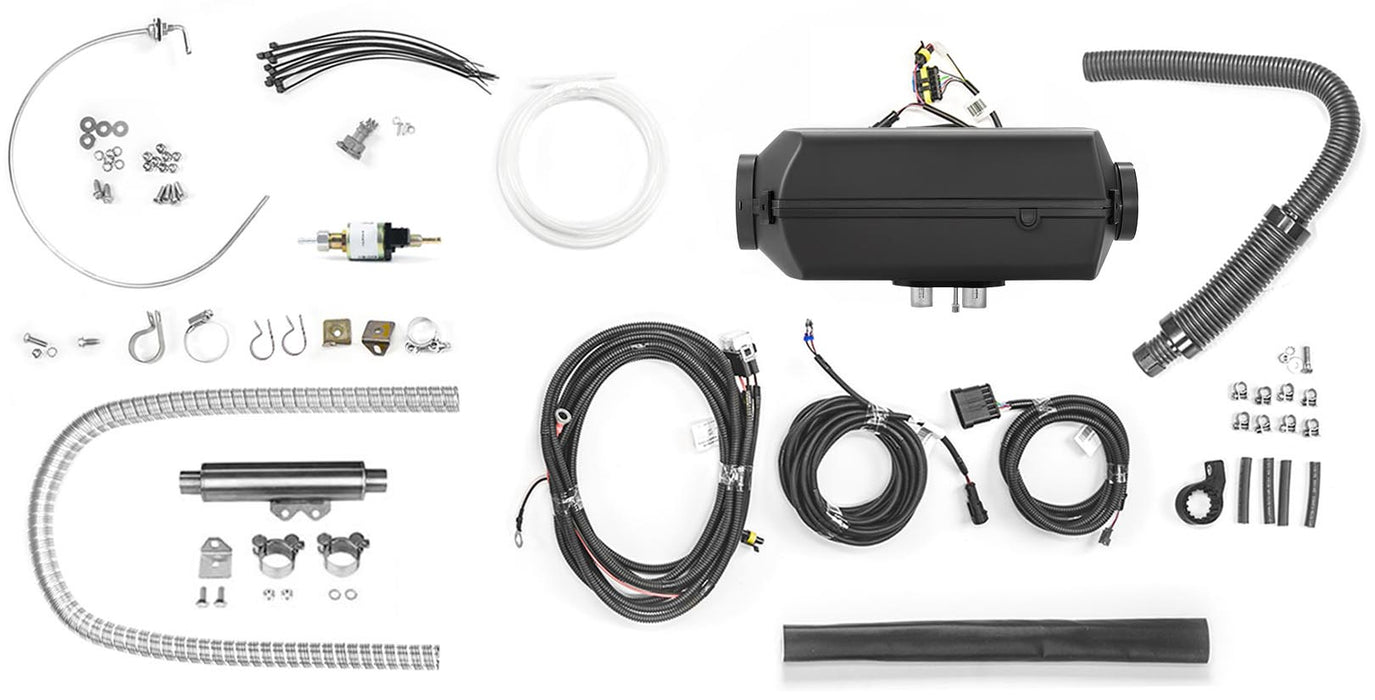

THE STANDARD KIT INCLUDES:
Air 4D Heater 1pce
Fuel intake 1pce
Fuel pump harness 1pce
Control panel harness 1pce
Muffler 1pce
Muffler installation kit 1pce
Air intake 1pce
Power supply harness 1pce
Air intake mounting kit 1pce
Mounting kit for harnesses 1pce
Mounting kit of fuel system 1pce
Mounting kit of exhaust pipe and heater 1m
Fuel supply line 5.5m
Exhaust pipe 1m
Silent fuel pump 1pce
Cable ties 10pcs
Heat insulation 1pce
Air 4D SPECIFICATION
| Specification | Value | Unit |
|---|---|---|
|
Voltage
|
12V or 24 | V |
|
Heating medium
|
Air | - |
|
Heating power
|
1.0-4.0 | kW |
|
Heated air volume
|
70-168 | m3/h |
|
Power consumption
|
10-57 | W |
|
Fuel
|
Diesel - EN590 | HVO100 - EN15940 | - |
|
Fuel consumption
|
0.12-0.51 | l/h |
|
Max. work altitude (MASL)
|
4200 | m |
|
Control mode
|
Manual, standard remote control, modem | - |
|
Compatible control panels
|
Comfort Control, Comfort Boiler Control, Push Control, Mini Control | - |
|
Weight of the heater
|
5.5 | kg |
|
Weight of the set
|
11.4 | kg |
|

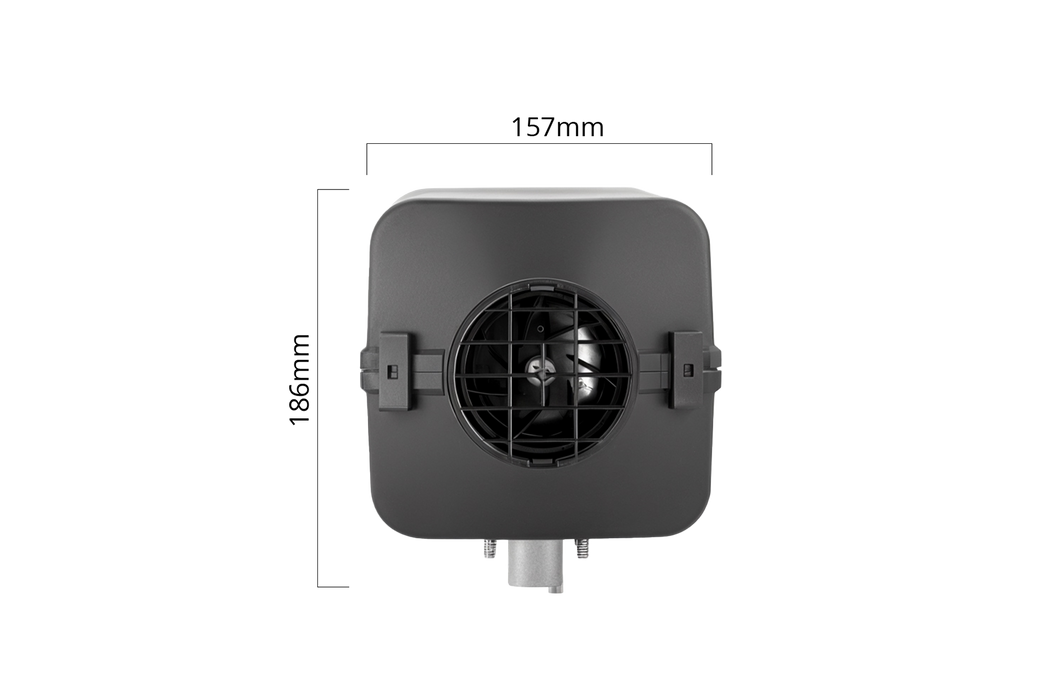

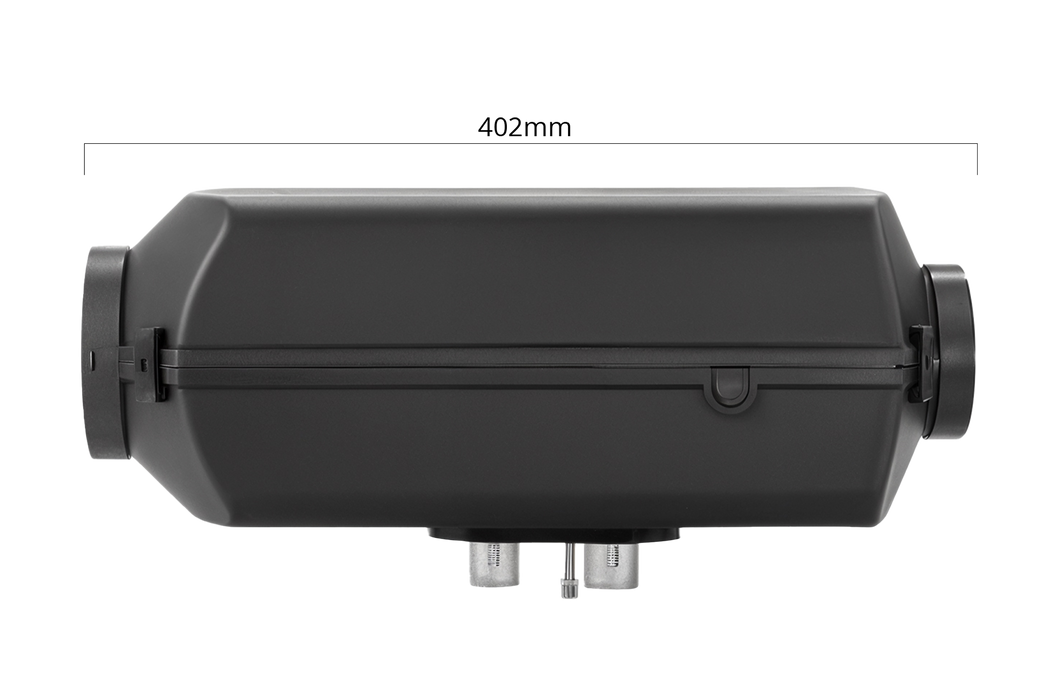

Heater dimensions
|
402x157x188 | mm |
|
Package dimensions
|
45x34x22 | cm |
