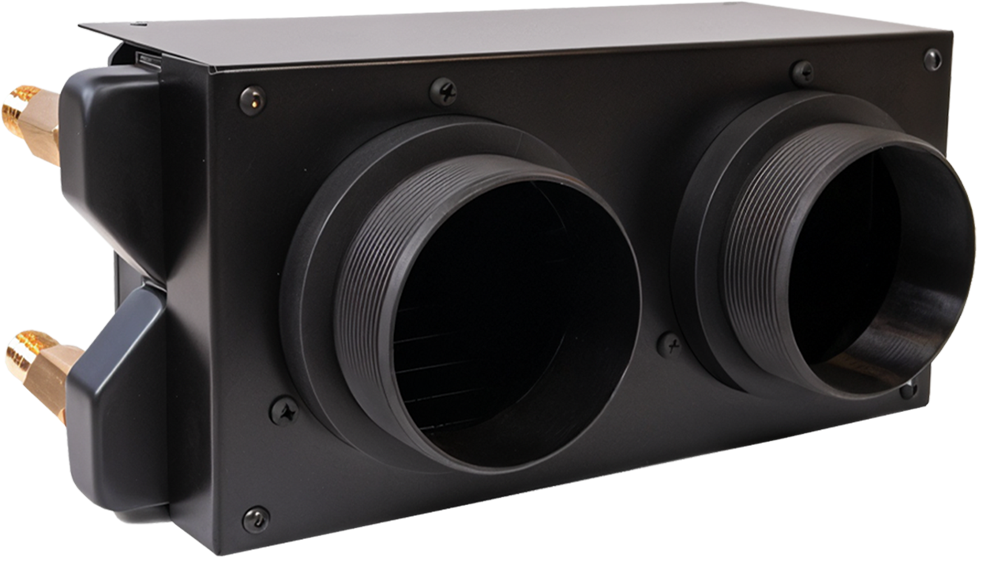

Autoterm CHX Liquid Heat Exchanger - Black
SKU FR070
Original price
$249.00
-
Original price
$249.00
Original price
$249.00
$249.00
-
$249.00
Current price
$249.00
FREE FREIGHT ON ORDERS $499+
Liquid heat exchanger with a fan with a zinc-coated and painted steel body, designed to heat 1-2 rooms by separating the hot air with air pipes.
Allows the addition of up to 2 x 75mm air pipes to direct the airflow to multiple compartments, or can be used without them.
Power: 2.5kW
Air Flow: 190m3/h
Voltage: 12V or 24V options

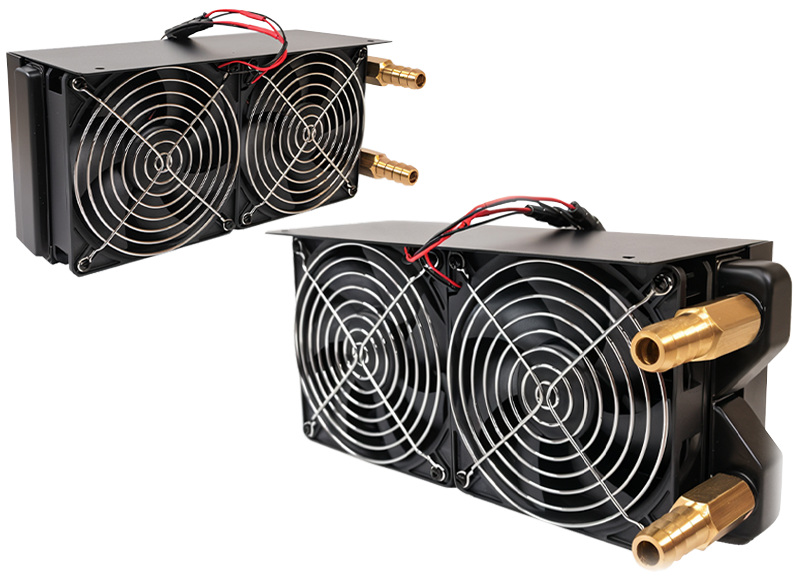

EQUIPPED WITH SILENT FANS
It features two internal SILENT fans with a radiator, each fan being individually adjustable or controlled together using a fan speed regulator.
COMPATIBILITY
AUTOTERM CHX BLACK is compatible with both Flow 5 & Flow 14D liquid heaters! The Flow 5 supports up to two CHX Black heat exchangers, while the Flow 14D can connect up to five additional units.
AUTOTERM CHX Black Specification
| Specification | Value |
|---|---|
|
Voltage
|
12V or 24V options |
|
Heating capacity
|
2.5 kW |
|
Air flow rate:
|
190 m3/h |
|
Air pipe connection diameter
|
2x ø75 |
|
Max power consumption
|
29 W |
|
Fan motor max. speed
|
3100 RPM |
|
Number of silent fans
|
2 |
|
Heating medium
|
Ethylene glycol |
|
Ethylene glycol MAX temperature
|
95 °C |
|
Max internal pressure
|
2 bar |
|
Inlet & outlet for ethylene glycol
|
ø 16 mm |
|
Front frame/body
|
Powered coated metal |
|
Weight
|
1.7 kg |
|
Dimensions
|
273 x 123 x 118 mm |
