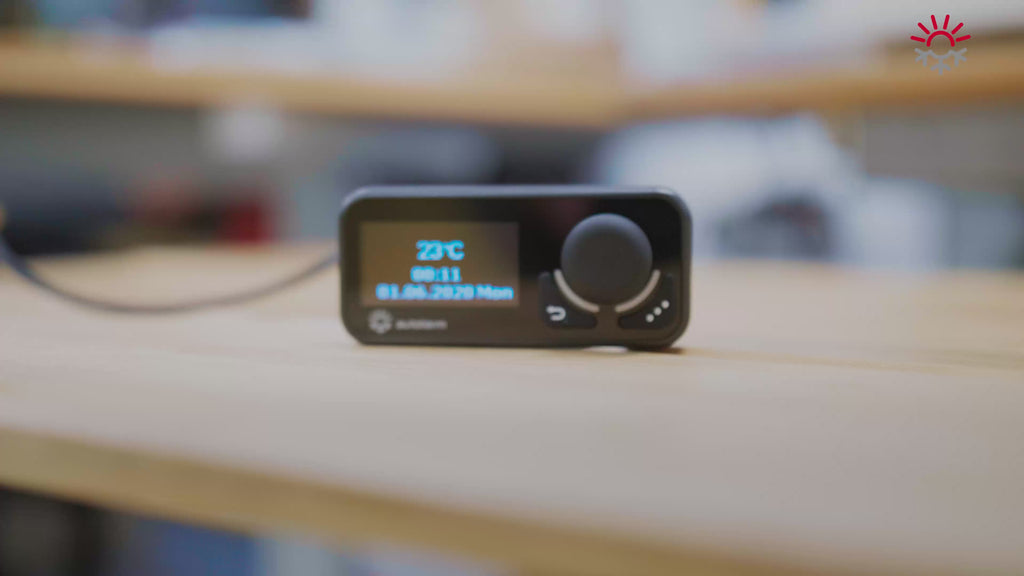

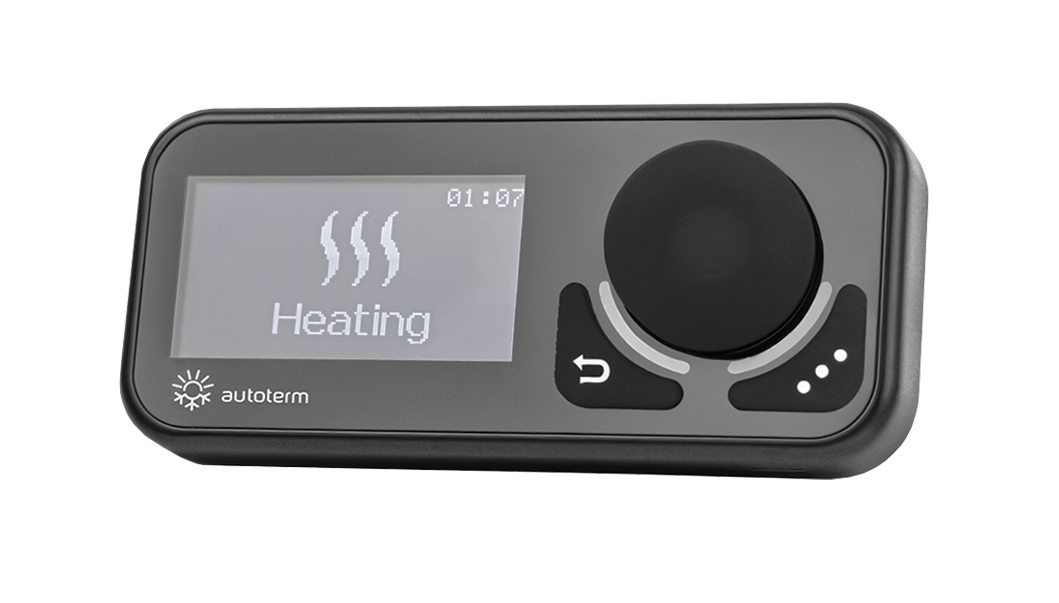

AUTOTERM Comfort Control Panel
SKU AT0050
Original price
$149.00
-
Original price
$149.00
Original price
$149.00
$149.00
-
$149.00
Current price
$149.00
FREE FREIGHT ON ORDERS $499+
This panel offers intuitive control for both Air & Flow Series heaters, featuring multiple work modes, advanced timers, and multilingual support, making it a favorite among AUTOTERM users.
WORKMODES WITH AIR SERIES
Comfort Control allows to set multiple workmodes and advanced timers on all AUTOTERM Air Series heaters.
TEMPERATURE MODE
The heater will maintain a set temperature by reducing the heating power. When the temperature is above the setpoint, combustion will switch off.
POWER MODE
The heater will operate constantly at a set power level.
HEAT + VENTILATION
The heater runs until the temperature reaches 1°C above the set point, then shuts off and ventilates until it drops 2°C below, before resuming to heat.
THERMOSTAT MODE
The heater runs until the set temperature is reached, then shuts off and restarts heating when the temperature drops.
Comfort Control SPECIFICATION
|
Temperature sensor
|
Custom calibrated digital sensor with +/- 1.5 degree offset. |
|
Timers
|
Max - 3 timers. Heating mode can be chosen for each timer. All 3 timers can be active simultaneously. Set timer is active continuously till disabled Available cycles: ED - Every day EW - Every workday Custom days |
|
Status display
|
LED red - heating LED blue - ventilation LED green - shutting down |
|
Wiring compatibility
|
assy.2067 - Wiring for control panel (1.8 m); assy.2324 - Wiring for control panel (5.0 m); assy.3298 - Wiring for control panel (7.0 m); assy.4269 - Extension wiring for control panel (2.6 m); assy.4111 - Extension wiring for control panel (3 m); assy.2468 - Extension wiring for control panel (5 m); assy.4366 - Cable wiring for AUTOTERM Flow 5D (12V); assy.4044 - Cable wiring for AUTOTERM Flow 5D / 5B (12V); assy.4394 - AUTOTERM Flow 14D wiring harness for control panel (1.8 m). Maximum allowed cable wiring length with Comfort Control - 10 m |
|
Compatibility with Air Heaters:
|
AUTOTERM Air 2D; AUTOTERM Air 4D; AUTOTERM Air 9D; Travel Box 2.0. (For verification of compatibility for older heaters sold by AUTOTERM, please contact us: service@autoterm.com) |
|
Compatibility with Liquid Heaters:
|
AUTOTERM Flow 5D / 5B; AUTOTERM Flow 14D. (for verification of compatibility for older heaters sold by AUTOTERM, please contact us: service@autoterm.com) |
|
Compatibility with other Control Panels
|
Push Control S; Push Control L. (For verification of compatibility, please contact us: service@autoterm.com). |
|
Display dimensions
|
37x20mm |
|
Control panel dimensions
|
82x37x19mm |
