Autoterm Liquid Heat Exchanger - Silver
SKU FR058
Original price
$379.00
-
Original price
$379.00
Original price
$379.00
$379.00
-
$379.00
Current price
$379.00
FREE FREIGHT ON ORDERS $499+

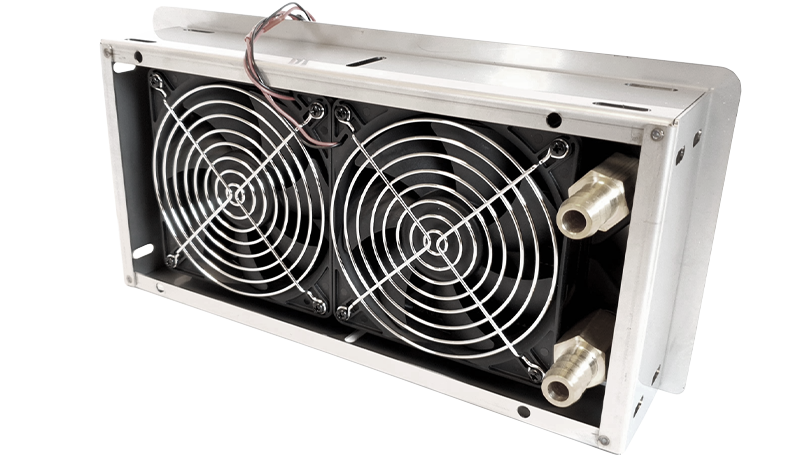

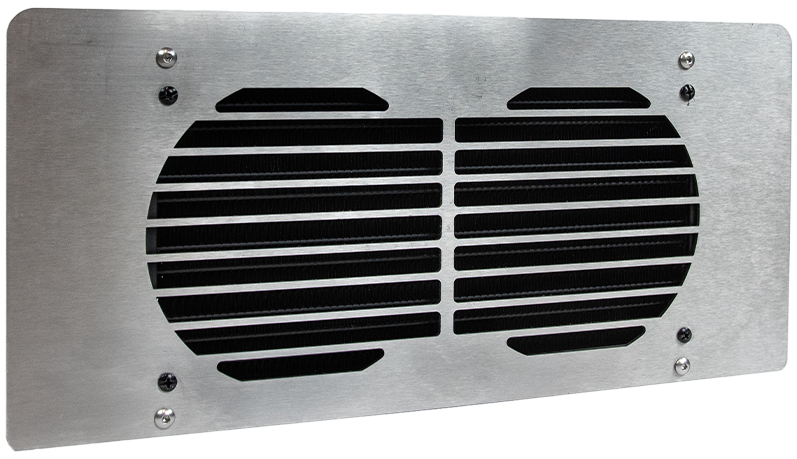

Liquid heat exchanger for room heating, equipped with 2 internal fans and a radiator. Each fan can be controlled additionally if needed or both together by a fan speed regulator.
Power: 1.4kW
Air Flow: 140m3/h
Voltage: 12V or 24V Option
LOW NOISE & LOW CONSUMPTION
Equipped with low noise & low power consumption fans it is a great addition of comfort in your vehicle.
COMPATIBILITY
With a heating capacity of 1.4 kW and a hot air flow rate of 140 m³/h, the AUTOTERM CHX is an excellent choice for campervans, RVs, and boats.
It pairs perfectly with any AUTOTERM Flow series liquid heater for enhanced comfort and efficiency.
AUTOTERM CHX Silver Specification
| Specification | Value |
|---|---|
|
Voltage
|
12V or 24V Option |
|
Heating capacity
|
1.4 kW |
|
Air flow rate
|
140 m3/h |
|
Air flow static pressure
|
7.1 mm H20 |
|
Power consumption
|
14 W |
|
Fan motor max. speed
|
3100 RPM |
|
Fan noise level up to
|
44.5 dB |
|
Heating medium
|
Ethylene glycol |
|
Inlet & outlet for ethylene glycol
|
ø 16 mm |
|
Max internal pressure
|
2 bar |
|
Operating temperature range
|
-10 C deg. +80 C deg |
|
Operating temperature range
|
-10 C deg. +80 C deg |
|
Front frame/body
|
Stainless steel (AISI 304) |
|
Weight
|
2.4 kg |
|
Dimensions
|
336.17 x 157 x 81.88 m |
