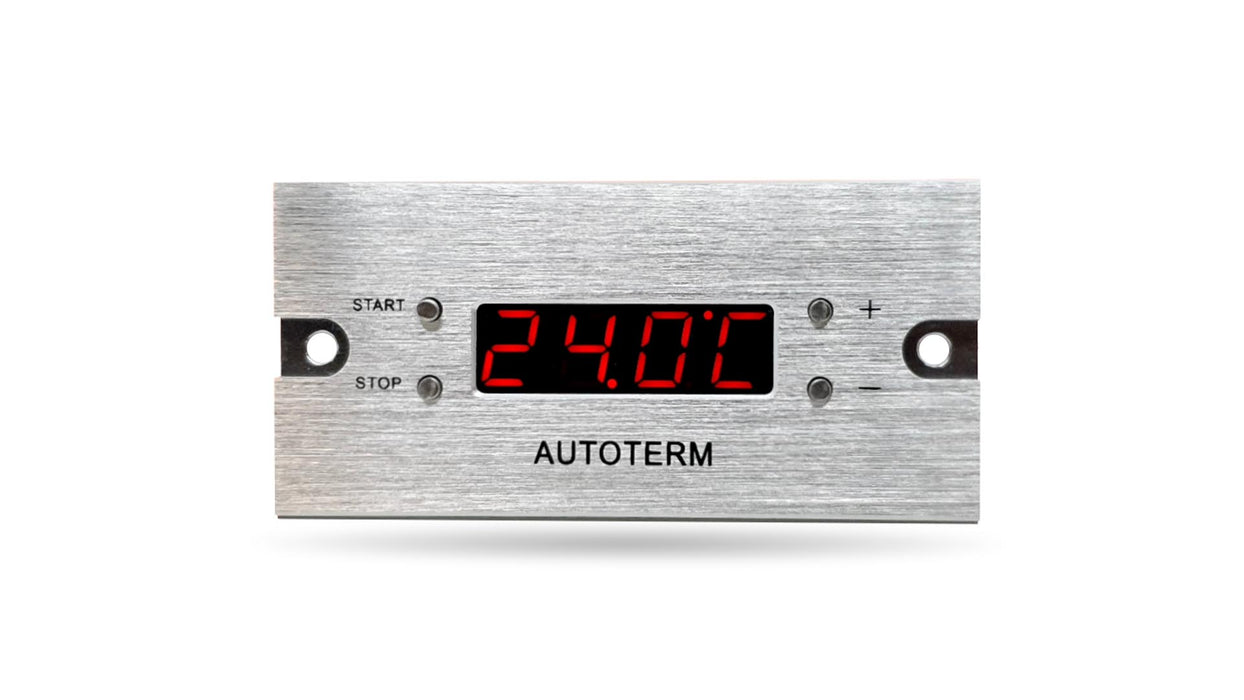

AUTOTERM Thermal Fan Controller CHM36
SKU FR059
Original price
$139.00
-
Original price
$139.00
Original price
$139.00
$139.00
-
$139.00
Current price
$139.00
FREE FREIGHT ON ORDERS $499+
AUTOTERM CHM36 is a programmable controller with heating/cooling functions that work based on temperature read-out according to the set start-up and power-off temperature. This thermal fan controller is an excellent addition to the AUTOTERM CHX heating matrix for automatic room/space heating by your set temperature with our without additional fan speed controller AUTOTERM FC9.
Voltage DC: 12/24V
Front plate material: Aluminum
Number of channel outputs: 4 channels
Max power load per channel: 30W
Dimensions: 92 x 44 x 35 mm
- Celsius / Fahrenheit degrees
- Heating or cooling modes
- Adjustable hysteresis
- Temperature correction
- Start time delay
AUTOTERM CHX Silver Specification
| Specification | Value |
|---|---|
|
Voltage
|
12V/24V |
|
Heating capacity
|
1.4 kW |
|
Air flow rate
|
140 m3/h |
|
Air flow static pressure
|
7.1 mm H20 |
|
Power consumption
|
14 W |
|
Fan motor max. speed
|
3100 RPM |
|
Fan noise level up to
|
44.5 dB |
|
Heating medium
|
Ethylene glycol |
|
Inlet & outlet for ethylene glycol
|
ø 16 mm |
|
Max internal pressure
|
2 bar |
|
Operating temperature range
|
-10 C deg. +80 C deg |
|
Operating temperature range
|
-10 C deg. +80 C deg |
|
Front frame/body
|
Stainless steel (AISI 304) |
|
Weight
|
2.4 kg |
|
Dimensions
|
336.17 x 157 x 81.88 m |
