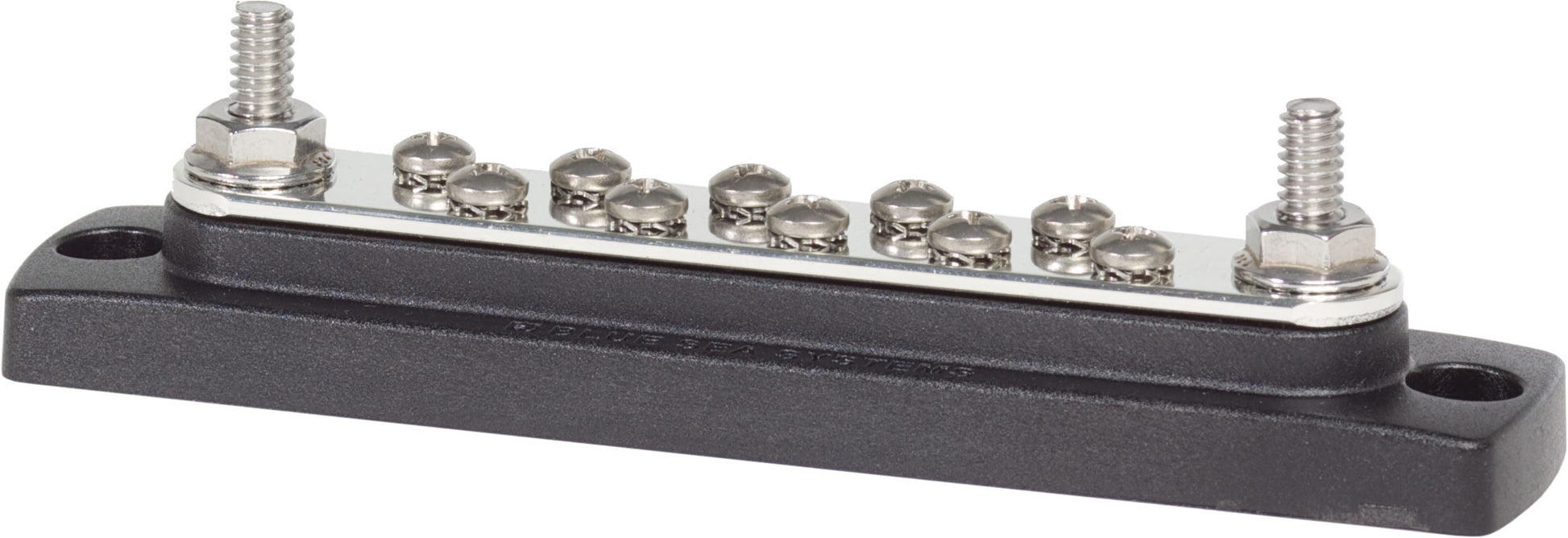

Blue Sea 150A BusBar - 10 Gang

SKU 2301
Original price $25.49 - Original price $25.49
Original price
$25.49
$25.49 - $25.49
Current price $25.49

Not seeing your wholesale pricing? LOG IN or SIGN UP

FREE FREIGHT ON ORDERS $499+

  • The industry standard busbar for positive distribution
  • The industry standard busbar for the collection of negative or AC ground circuits
Specifications
Maximum Voltage 300V AC
48V DC
Number of Screw Terminals 10
Number of Terminal Studs 2
Terminal Type 1/4" Stud
#8-32 Screw
Continuous Rating  130A AC
150A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Torque 60 in-lb (6.78 Nm)
Weight 0.34lb (0.15 kg)
Weight 0.34lb (0.15 kg)
