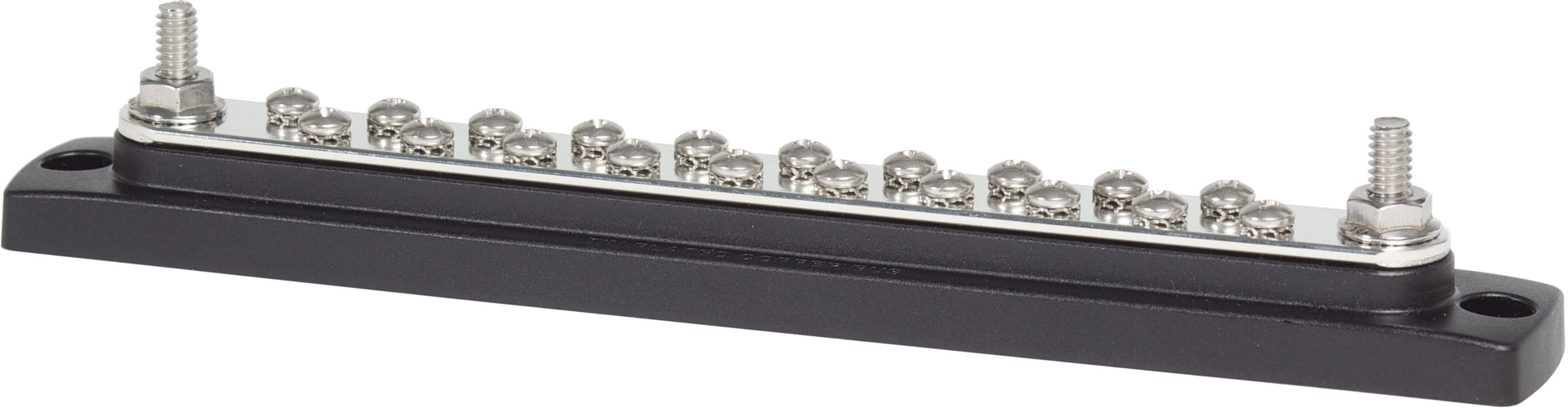

Blue Sea 150A BusBar - 20 Gang

SIGN IN FOR WHOLESALE PRICE

Svg Vector Icons : http://www.onlinewebfonts.com/icon
  • The industry standard busbar for positive distribution
  • The industry standard busbar for the collection of negative or AC ground circuits



Specifications
Maximum Voltage 300V AC
48V DC
Number of Screw Terminals 20
Number of Terminal Studs 2
Terminal Type 1/4" Stud
#8-32 Screw
Continuous Rating  130A AC
150A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Torque 60 in-lb (6.78 Nm)
Weight 0.53lb (0.24 kg)
Weight 0.51lb (0.23 kg)
-->
