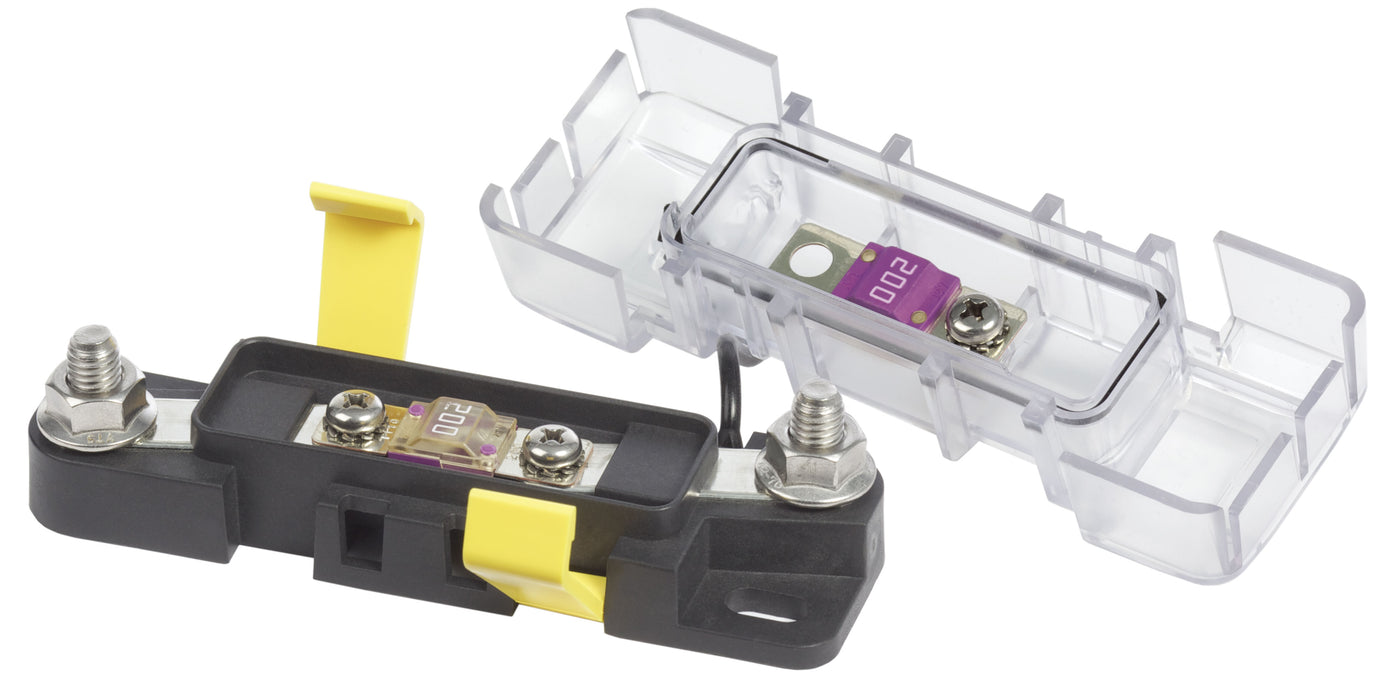

Blue Sea AMI / MIDI Safety Fuse Block

SKU 7720
Original price $35.99 - Original price $35.99
Original price
$35.99 - $35.99
Current price $35.99

Not seeing your wholesale pricing? LOG IN or SIGN UP


  • Ignition protected for installation aboard gasoline or diesel powered boats
  • Sealed cover protects fuses from the harsh marine environment
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • 200A maximum with 4/0 cable
  • Accepts Blue Sea Systems Square Format standard or custom label
  • Fuses sold separately
Maximum Amperage  200A
Maximum Voltage 32V DC
Stud Size M8 x 1.25
Fuse Screw M5 x 0.8
Recommended Screw Torque 27 in-lb (3.05 N·m)
Recommended Stud Torque 120 in-lb (13.56 N·m)
Ring Terminal Size M8 (5/16")
Weight 0.15lb (0.07 kg)
