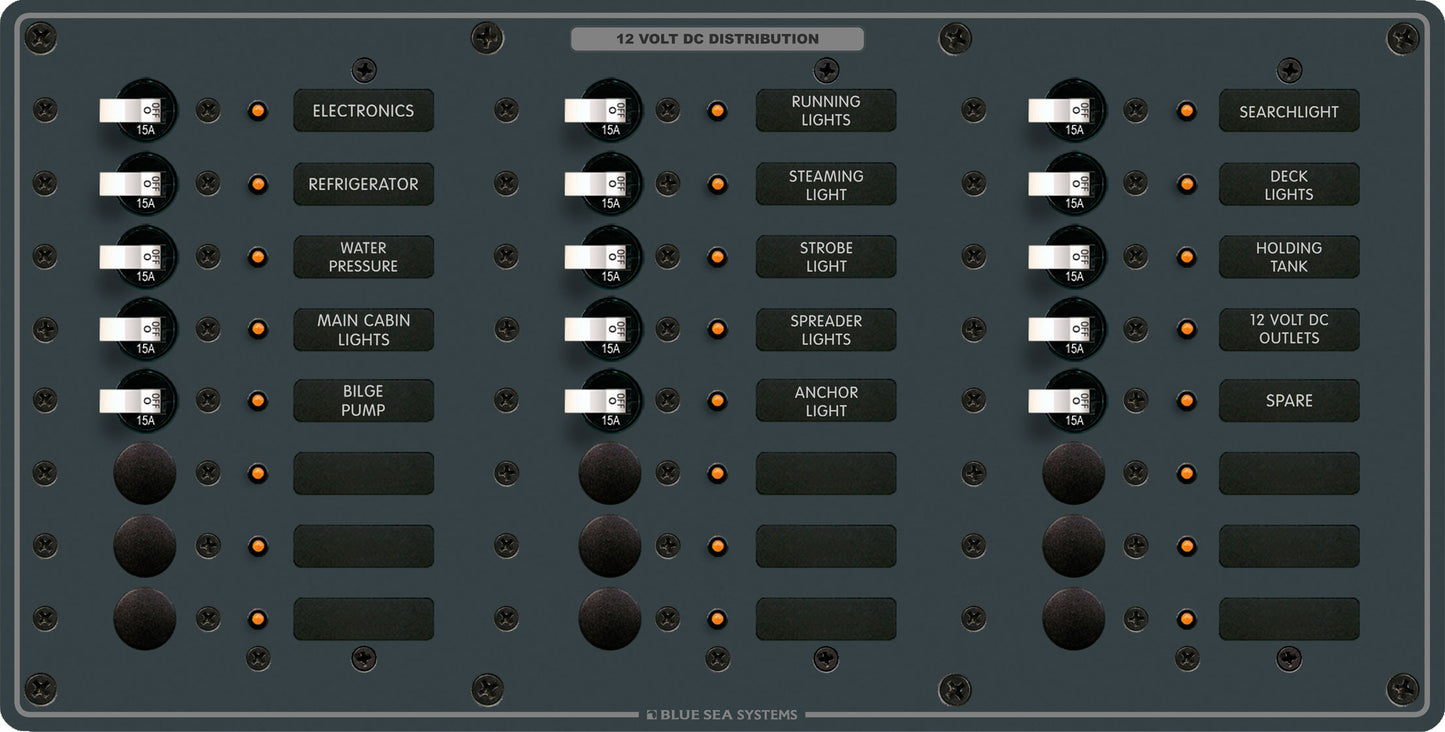

Blue Sea DC Circuit Breaker Panel - 24 Positions
Blue Sea DC Circuit Breaker Panel - 24 Positions
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
| Specifications | |
|---|---|
| Positions | 24 |
| Nominal Voltage | 12V DC 24V DC |
Maximum Amperage
|
100A per bus |
| Height | 7.50in (190.5 mm) |
| Width | 14.75in (374.65 mm) |
| Weight | 7.45lb (3.38 kg) |
| Weight | 7.45lb (3.38 kg) |
