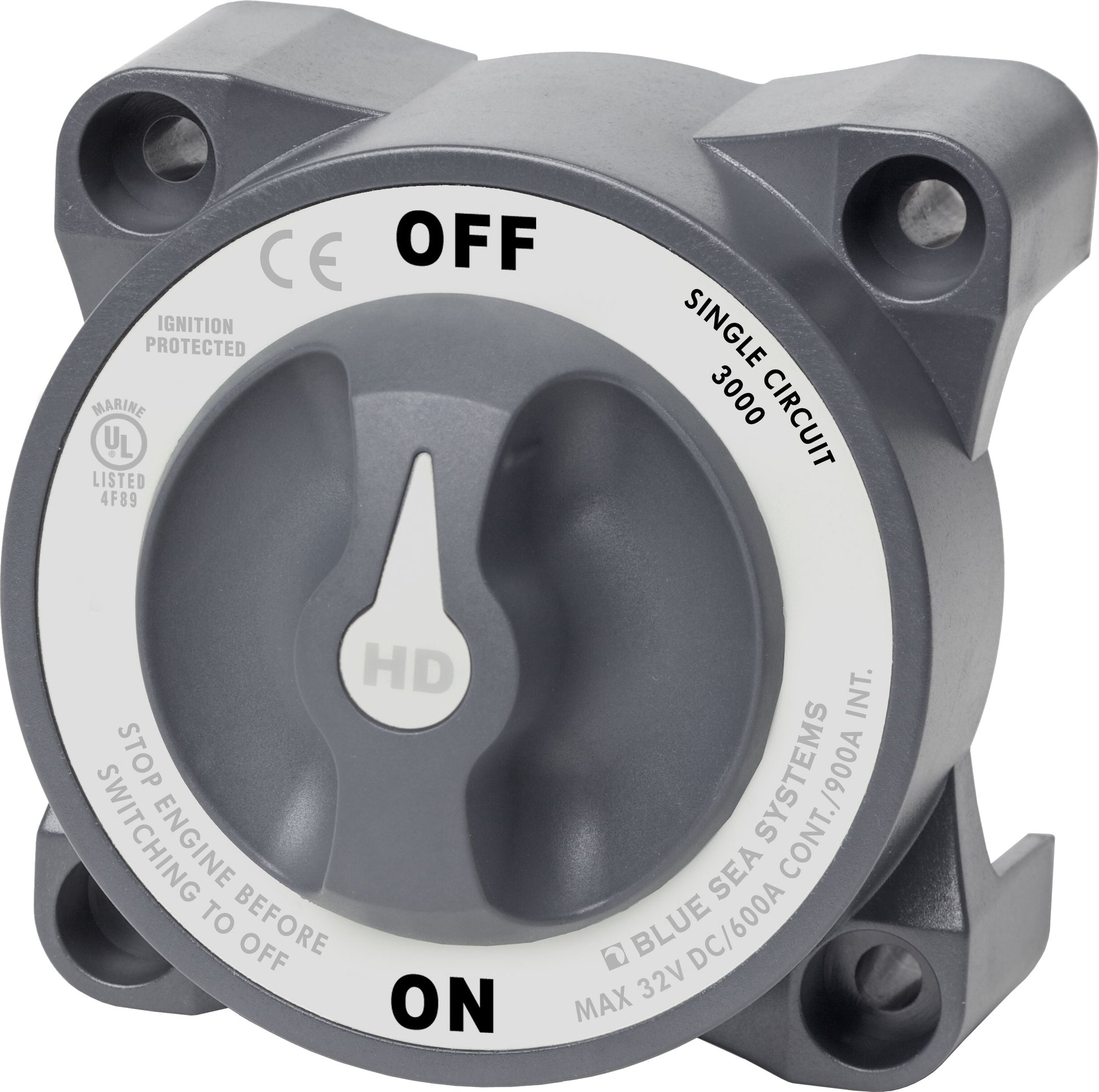

Blue Sea Heavy Duty On/Off Battery Switch - HD-Series
Blue Sea Heavy Duty On/Off Battery Switch - HD-Series
Switches a single battery to a single load group
View full details
- Ignition protected—safe for installation aboard gasoline powered boats

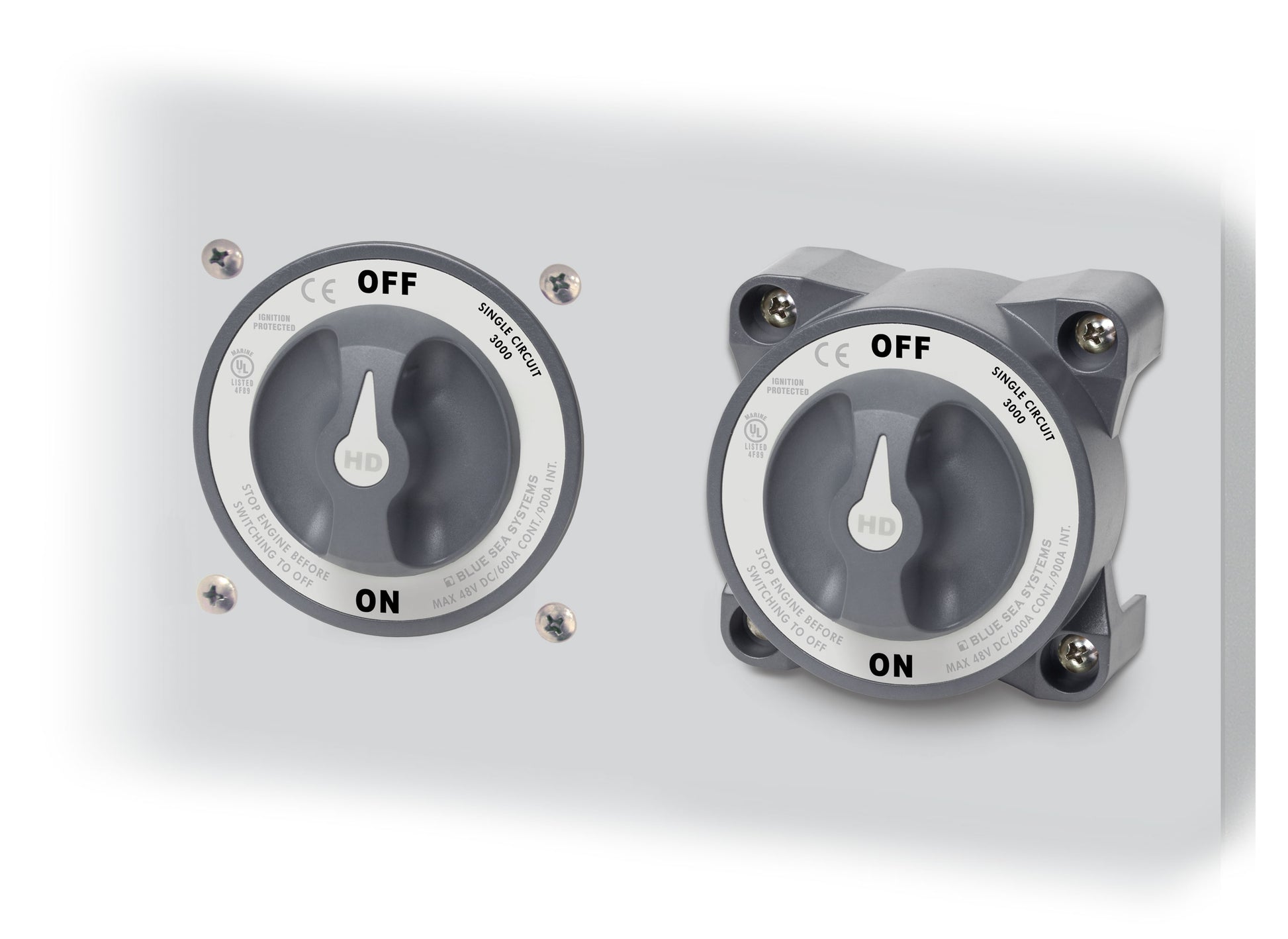

- Case design allows surface or rear panel mounting

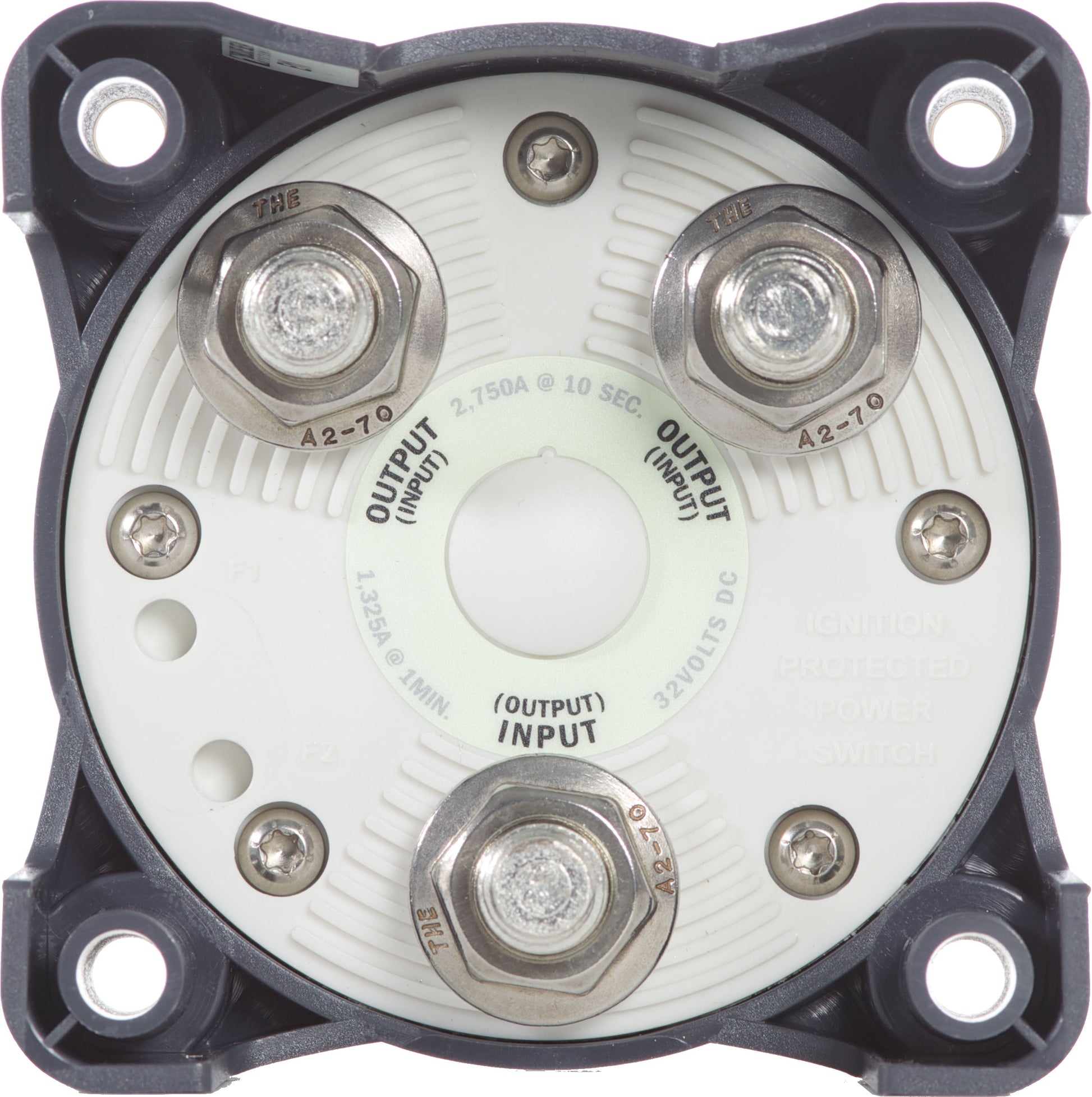

- Accepts two 4/0 AWG (95mm²) battery cables
| Specifications | |
|---|---|
Switch Type
|
Single Circuit ON-OFF |
| Color | Grey |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect
|
No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 220 in-lb (24.86 Nm) |
| Continuous Rating
|
600A |
| Intermittent Rating
|
900A (5 min) |
| Cranking Rating 30 sec
|
1750A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Quantity to Meet Ratings | Two Cables |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Terminal Stud Size | 1/2" (M12) |
| Weight | 1.30lb (0.59 kg) |
