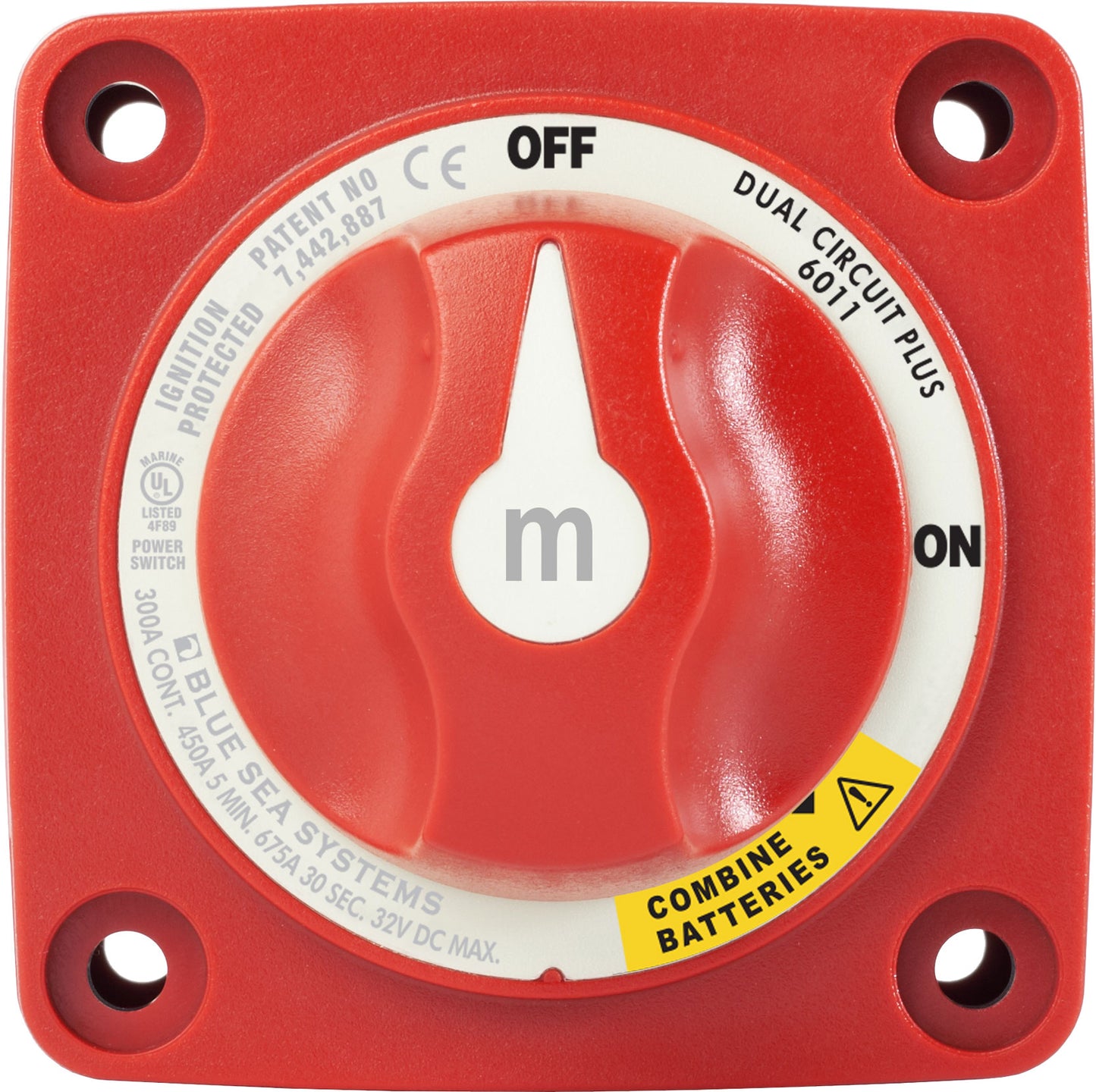

Blue Sea Mini Dual Circuit Plus Battery Switch - m-Series

Simultaneously switches two isolated battery banks or combines battery banks to all loads

• Make before break contact design allows switching between battery banks without power interruption

Specifications
Switch Type	Dual Circuit Plus
Color	Red
Switch Positions	3
Battery Combine	Yes
Alternator Field Disconnect	No
Maximum Voltage	32V DC

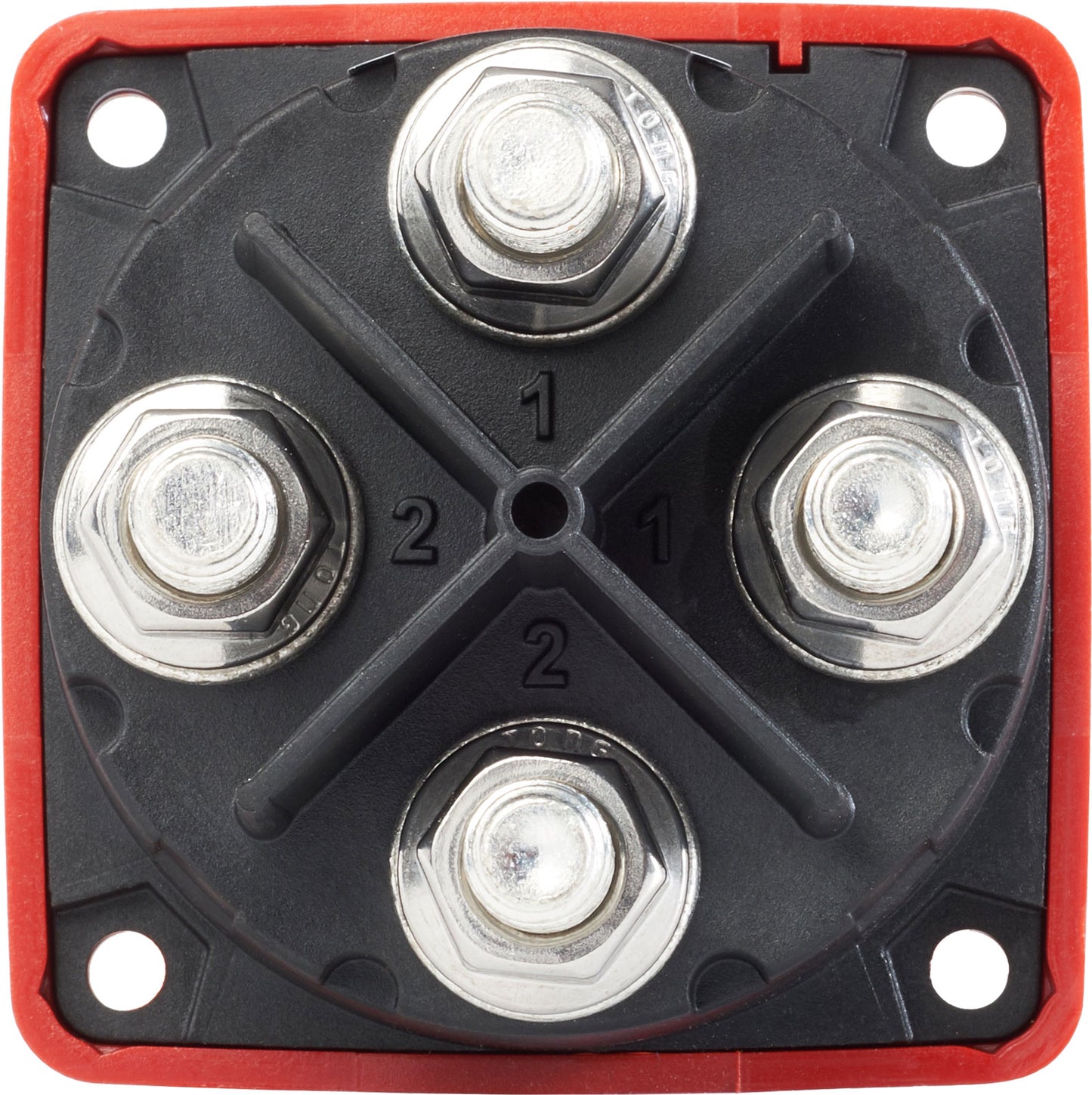

Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	450A (5 min)
Cranking Rating 30 sec	675A per circuit
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)

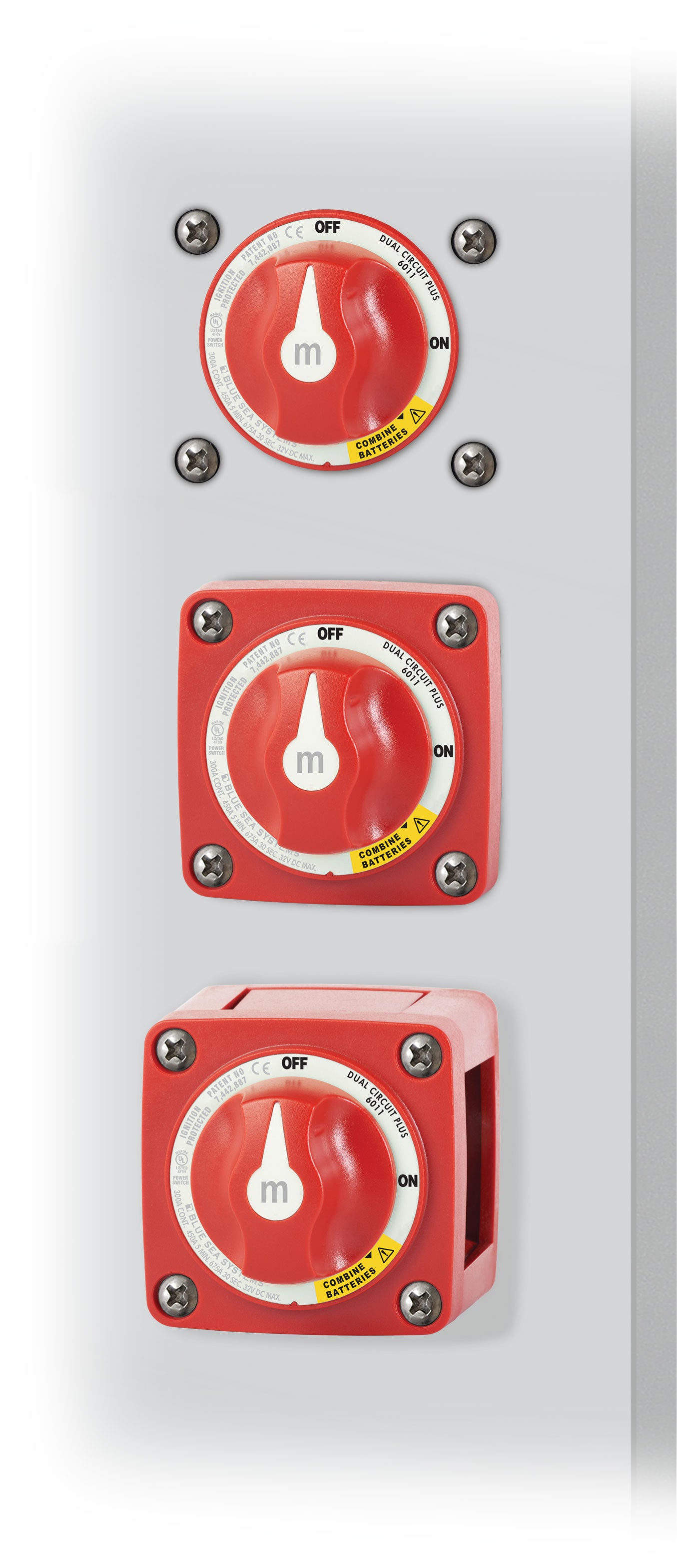

Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
Weight	0.80lb (0.36 kg)
