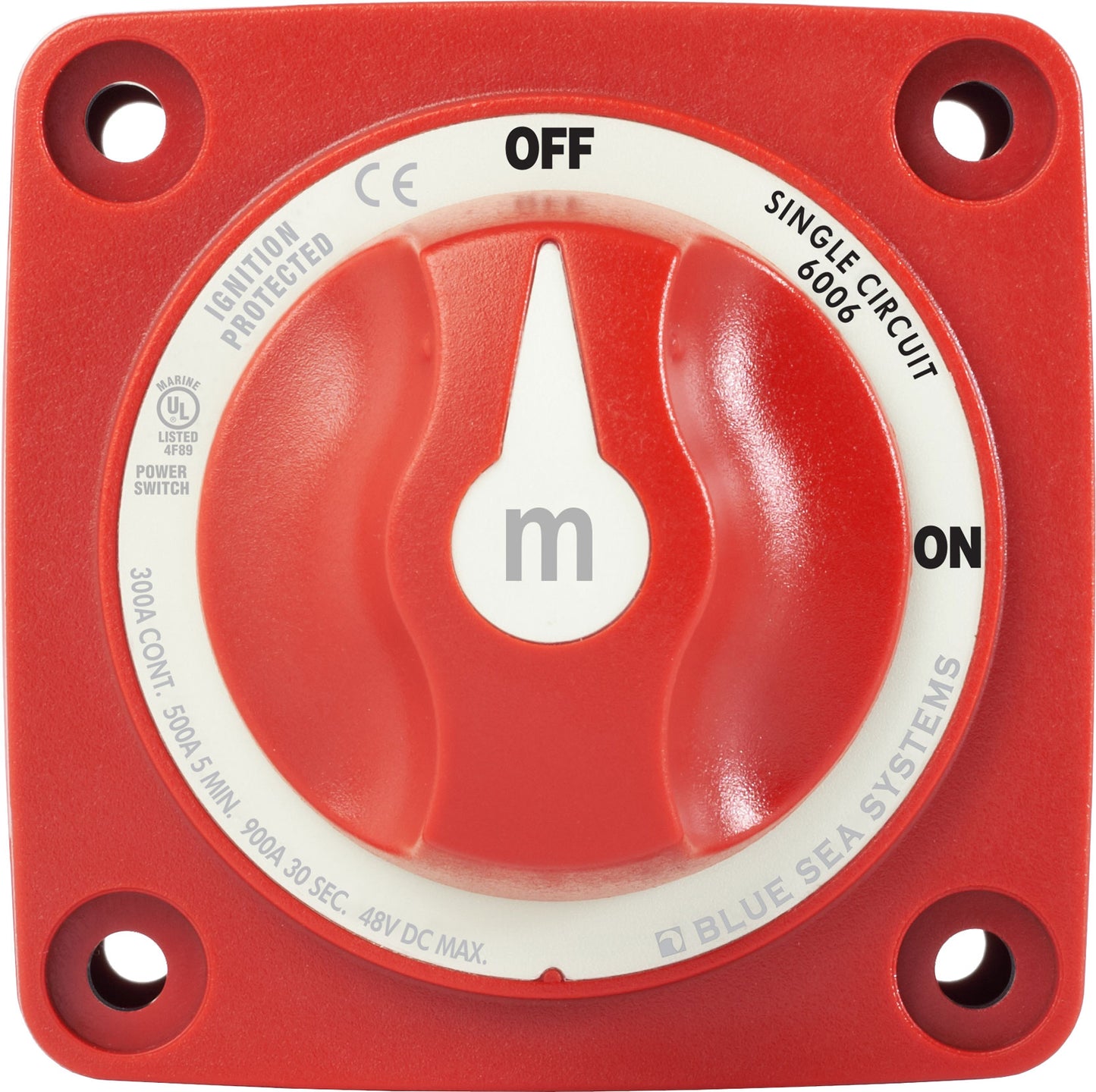

Blue Sea Mini On/Off Battery Switch - m-Series
SKU 6006
Original price
$35.39
-
Original price
$35.39
Original price
$35.39
$35.39
-
$35.39
Current price
$35.39
FREE FREIGHT ON ORDERS $499+
Switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats

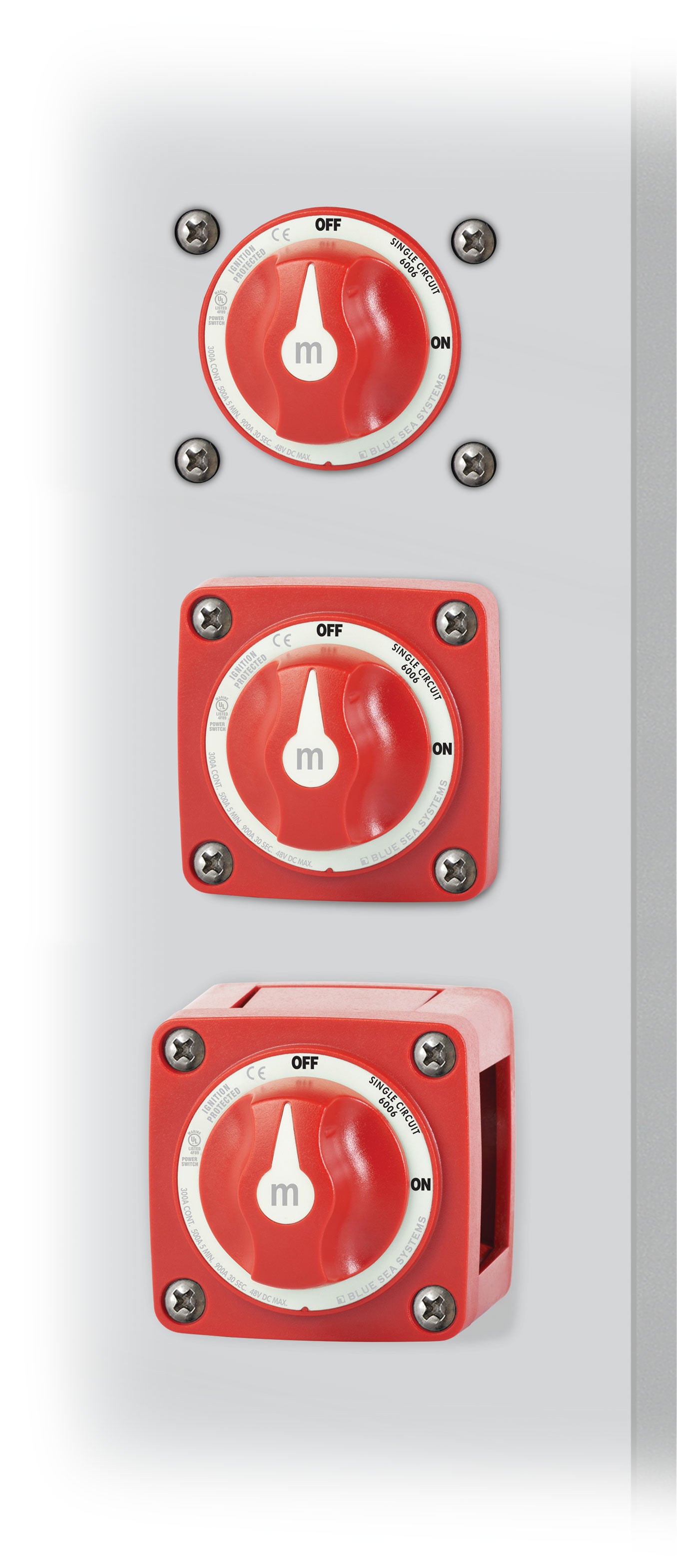

- Case design allows surface, front panel, or rear panel mounting

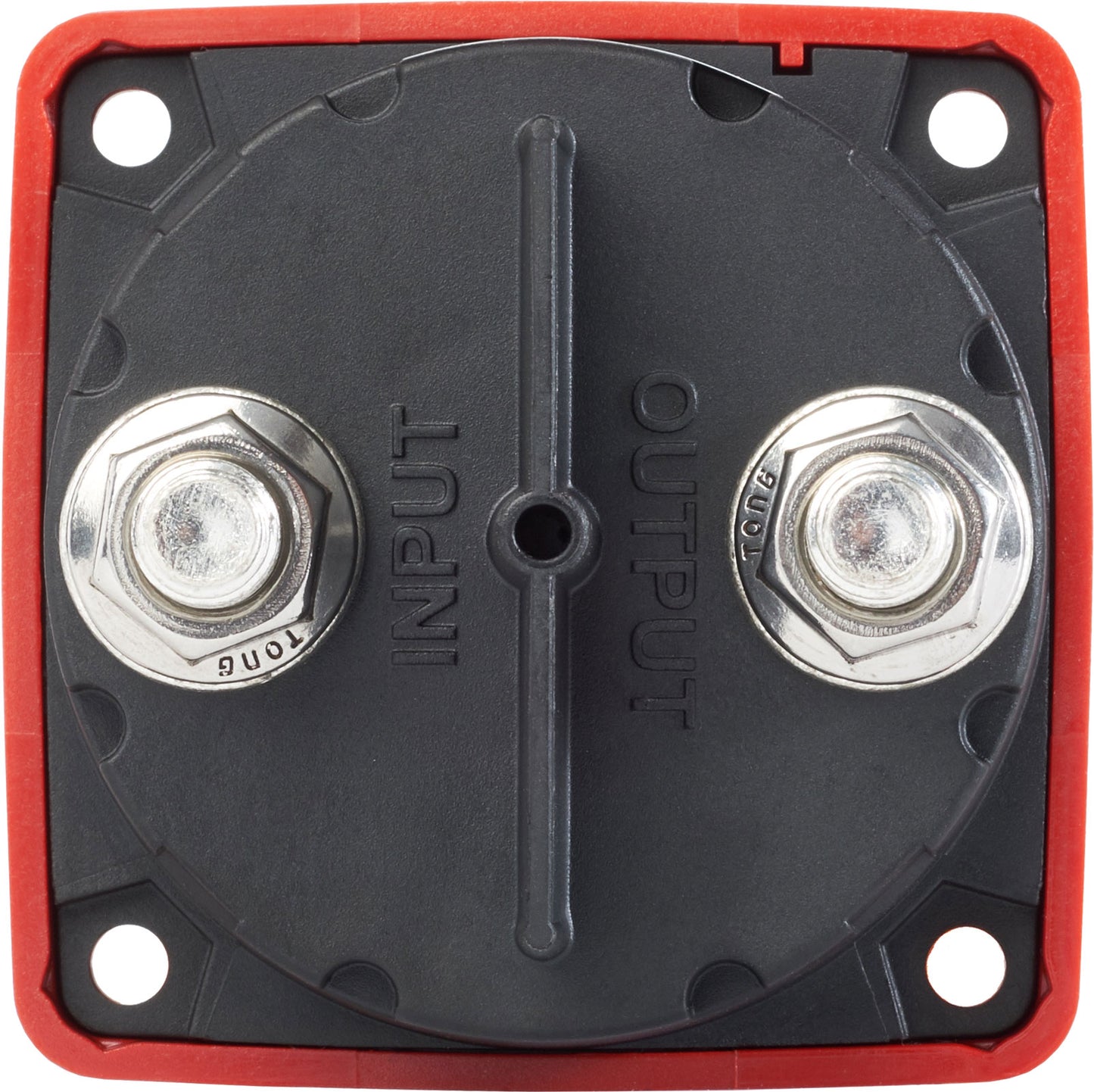

- Isolating cover with snap-on sections protects rear contacts
| Specifications | |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.65lb (0.29 kg) |
| Weight | 0.65lb (0.29 kg) |
