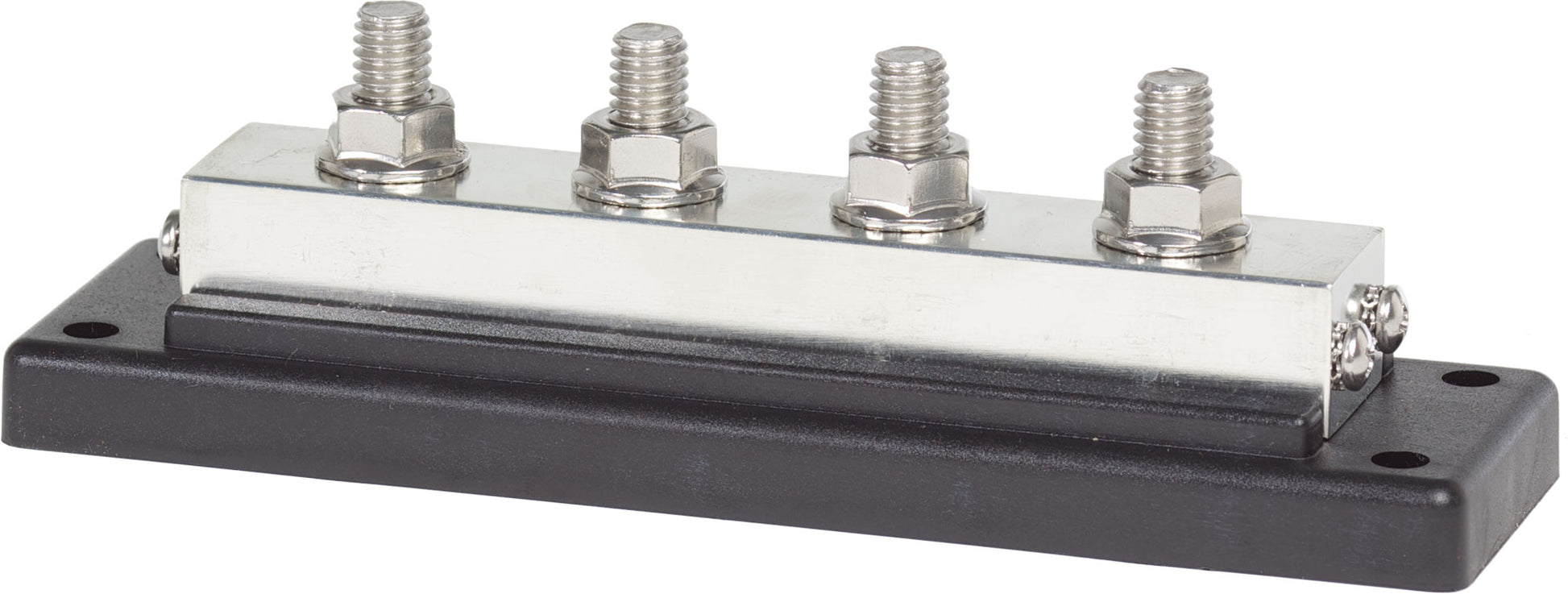

Blue Sea PowerBar 600A BusBar - Four 3/8"-16 Studs

Blue Sea PowerBar 600A BusBar - Four 3/8"-16 Studs

Specifications
Maximum Voltage 300V AC
48V DC
Number of Terminal Studs 4
Terminal Type 3/8"-16 Stud
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating  545A AC
600A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110/UNS11000
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Torque 140 in-lb (15.82 Nm)
Weight 1.71lb (0.78 kg)
Weight 1.75lb (0.79 kg)
