Blue Sea ST Blade Fuse Block - 6 Independent Circuits w/ Cover
Blue Sea ST Blade Fuse Block - 6 Independent Circuits w/ Cover
Regular price
$45.49 USD
Regular price
Sale price
$45.49 USD
Unit price
per
Couldn't load pickup availability
- Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system

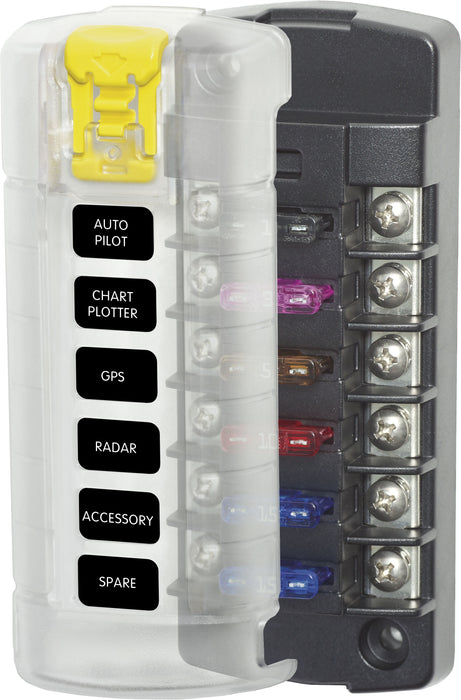

- Clear insulating cover with label recesses accepts Small Format Labels
- Spare fuse holder in cover
- Accepts ring or snap fork type terminals
- Includes two terminal block jumpers
Specifications | |
---|---|
Circuits | 6 |
Maximum Amperage ![]() |
30A per circuit 40A per jumped circuit group |
Maximum Voltage | 32V DC |
Mounting | #8 Screw (M4) |
Screw Terminal Torque | 18 in-lb (2.03 Nm) |
Screw Terminal Type | #8-32 with Captive Star Lockwasher |
Weight | 0.35lb (0.16 kg) |
