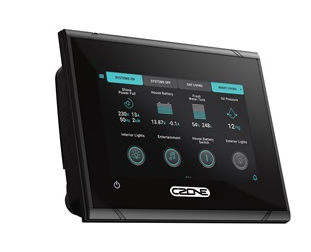

CZone Touch 5 Display Kit
FREE FREIGHT ON ORDERS $499+
Built-in WiFi allows direct-connection of an iPad for wireless control and monitoring of the system
The compact Touch 5 is small but mighty, offering a powerful touch screen interface for CZone's powerful digital control and monitoring. With a compact sleek design, the Touch 5 complements nearly any vessel dash
or vehicle space.
Built-in WiFi connectivity brings your CZone system into the wireless dimension, allowing full control of system functions—from mode selection, system monitoring and individual circuit control—straight to your fingertips, no matter where onboard you are.
-
Easy to use touch interface
-
Glass dash styling
-
Super bright widescreen display
-
Low profile flush mounting
-
Reduced system cost and complexity, combines display and Wireless Interface functionality into one unit
-
IPX7 water ingress protection
-
Built-in WiFi connectivity
-
Micro SD card slot
-
NMEA 2000 compatible
Specifications
| General specifications | ||
| Screen | 5” LED-backlit projected capacitive widescreen touch | |
| Resolution | 800 x 480 pixels | |
| Brightness (cd/m2) | 1200 | |
| Interfaces | NMEA2000, Micro SD | |
| Dimensions, hxwxd | 120 x 152 x 58 mm 4.7 x 6.0 x 2.3 inch |
|
| Compliance | CE, RCM | |
| Technical specifications | ||
| Power consumption | 900 mA at 13.5 V | |
| Protection degree | IPX7 water ingress | |
| Supply voltage | 12 V | |
