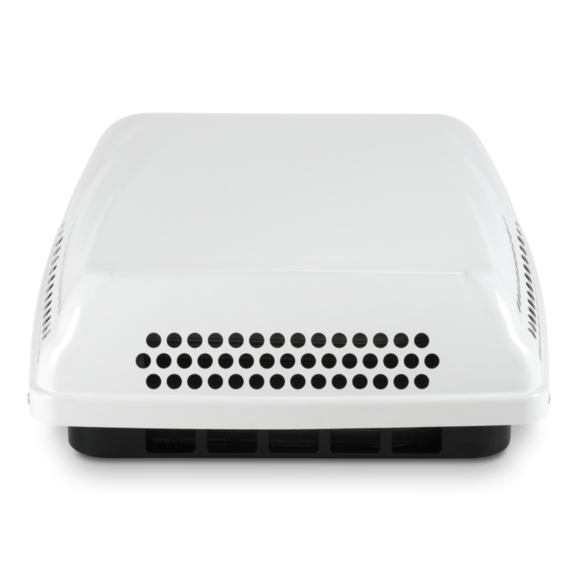

Dometic Penguin II Air Conditioner - 13,500 BTU - Cooling Only

13,500 BTU - ROOFTOP LOW PROFILE AIR CONDITIONER - NO PRE-INSTALLED CONTROLS

NON-DUCTED APPLICATION: AIR DISTRIBUTION BOX SOLD SEPARATE

DUCTED APPLICATION: RETURN AIR GRILLE AND CONTROL KIT SOLD SEPARATE

This low-profile rooftop air conditioner with sleek, futuristic styling offers premium comfort control and improved aerodynamics. A high-performance motor and fan deliver superb cooling performance.

  • High-performance motor and fan
  • Low profile – 11 1/4" / 29 cm high
  • Sleek, contemporary shroud improves aerodynamics, reduces wind resistance
  • Ducted or Non-ducted cooling
  • Requires inside ceiling assembly and control kit (available separately)

LOW-PROFILE AERODYNAMICS

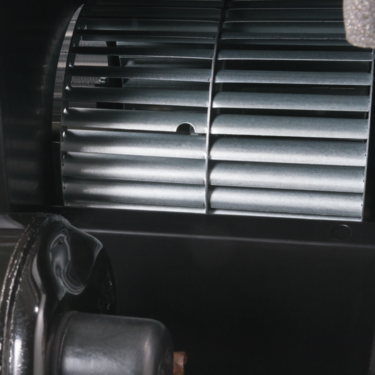

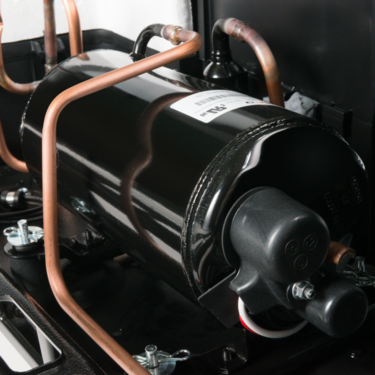

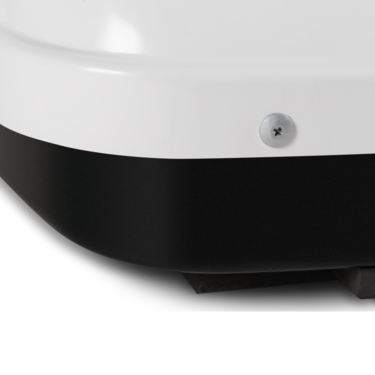

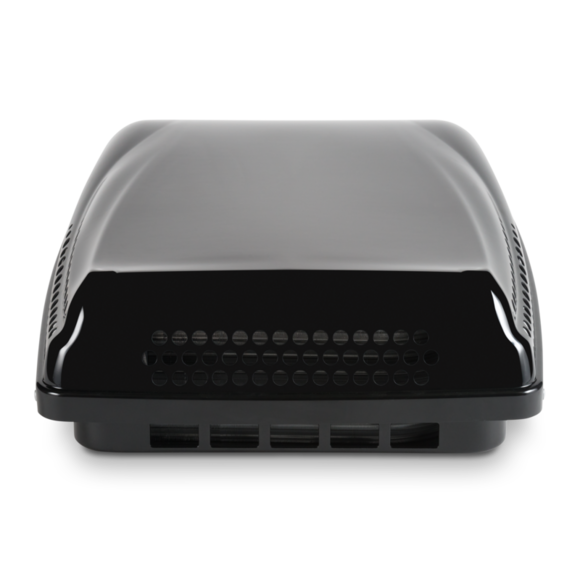

The Dometic Penguin II Rooftop Air Conditioner features a futuristic look and powerful cooling performance. With a low-profile, 11 1/4 in./29 cm, the sleek shroud reduces wind resistance while the vehicle is moving. A rib-reinforced base pan delivers lasting strength, while its R410A refrigerant is more eco-friendly and releases heat efficiently. Its high-performance motor and fan deliver a first-class cooling performance. The Penguin II can operate in ducted and non-ducted cooling systems. Non-ducted application requires an Air Distribution Box (available separately). Available in white and black.


REQUIRED ACCESSORIES

ADB

Universal ADB, Center Duct Wall Application

  • Modernly convenient design
  • Powerful distribution
  • Easy manual control
THERMOSTAT, CCC2

SPECIFICATIONS

GENERAL
  • Model: 13.5K Btu
  • Scope of delivery: 1 Air conditioner, 1 Warranty card
  • Cool Only or Heat Pump: Cool Only
  • Product Description: 13,500 BTU - Rooftop Low Profile Air Conditioner - No pre-installed controls - Non-ducted application: air distribution box required - ducted application: return air grille and control kit required
  • Thermostat Zones: Single or Multi
DIMENSIONS
  • Dimensions product depth: 29 "
  • Dimensions product height: 11 1/4 "
  • Dimensions product width: 40 1/2 "
  • Net weight: 101 lbs
ELECTRICAL
  • Input voltage: (AC) 115 V
  • Input frequency: 60 Hz
PERFORMANCE
  • Cooling capacity (ISO 5151): 3956.46 W
  • Cooling Capacity: 13500  BTU
  • Power consumption - Cooling mode (ISO 5151): 1731 W
ADDITIONAL
  • Thermostat control: Manual Thermostat
  • Certificates: CSA
LOGISTICS
  • Dimensions parcel depth: 29.72 "
  • Dimensions parcel height: 12.20 "
  • Dimensions parcel width: 41.54 "
  • Parcel weight: 107.60 lbs
