Dometic Penguin II Air Conditioner - 13,500 BTU w/ Heat Pump

SKU 651815HXX1J0-01
Original price $1,823.99 - Original price $1,823.99
Original price
$1,823.99
$1,823.99 - $1,823.99
Current price $1,823.99

Not seeing your wholesale pricing? LOG IN or SIGN UP

FREE FREIGHT ON ORDERS $499+

13,500 BTU Low Profile Rooftop Heat Pump, Ducted or Non-Ducted Application - ADB REQUIRED.

This low-profile rooftop air conditioner with sleek, futuristic styling offers premium comfort control and improved aerodynamics. A high-performance motor and fan deliver superb cooling performance.

  • 13,500 BTU COOLING CAPACITY
  • LIGHTWEIGHT: UNDER 75 LB / 34 KG
  • EASY INSTALLATION
  • THERMOSTAT ZONES: MULTIZONE

FOR REPLACEMENT:

  • If your existing Dometic Penguin A/C model number begins with 630035, 630515, or 651515, this is the direct replacement unit for you.

This product should be installed by a certified Dometic service center.

LOW-PROFILE AERODYNAMICS

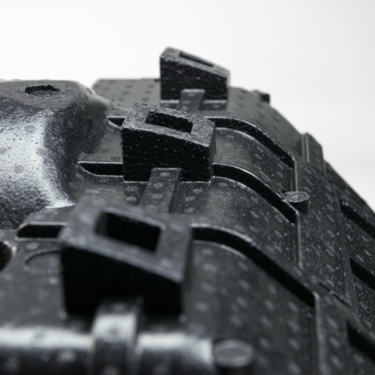

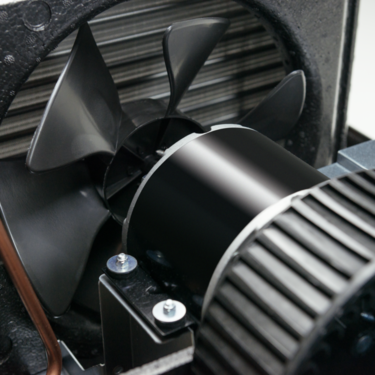

The leading low-profile RV air conditioner, the Penguin II Rooftop Air Conditioner is a powerful cooler. With its ultra-low profile, this streamlined rooftop unit is aerodynamically designed to reduce drag when on the move. It also looks fantastic! The high-performance motor and fan deliver powerful cooling performance using a more eco-friendly R410A refrigerant. Despite its compact and lightweight design, features such as the robust rib-reinforced base pan ensure that the Penguin II can handle tough environments for a longer service life.


REQUIRED ACCESSORIES

  • Modernly convenient design
  • Powerful distribution
  • Easy manual control
  • Digital display - modern design and user-friendly
  • Zoned climate control
  • Low profile bluelight display

This product should be installed by a certified Dometic service center.

SPECIFICATIONS

GENERAL
  • SKU number: 9600003812
  • Model: 13.5K Btu Heatpump with Control Box
  • Model on label: 651815HXX1J0-01
  • Scope of delivery: 1 Air conditioner, 1 Warranty card
  • Cool Only or Heat Pump: Heat Pump
  • Product Description: 13,500 BTU LOW PROFILE ROOFTOP AIR CONDITIONER, DUCTED OR NON-DUCTED APPLICATION - ADB REQUIRED.
  • Thermostat Zones: Multizone
DIMENSIONS
  • Dimensions product depth: 29 "
  • Dimensions product height: 11 1/4 "
  • Dimensions product width: 40 1/2 "
  • Net weight: 101 lbs
ELECTRICAL
  • Input voltage: (AC) 115 V
  • Input frequency: 60 Hz
PERFORMANCE
  • Cooling capacity (ISO 5151): 3956.46 W
  • Cooling Capacity: 13500  BTU
ADDITIONAL
  • Thermostat control: Electronic Thermostat
  • Certificates: CSA
LOGISTICS
  • Dimensions parcel depth: 29.72 "
  • Dimensions parcel height: 12.20 "
  • Dimensions parcel width: 41.54 "
  • Parcel weight: 107.60 lbs

DOWNLOADS

This product should be installed by a certified Dometic service center.
