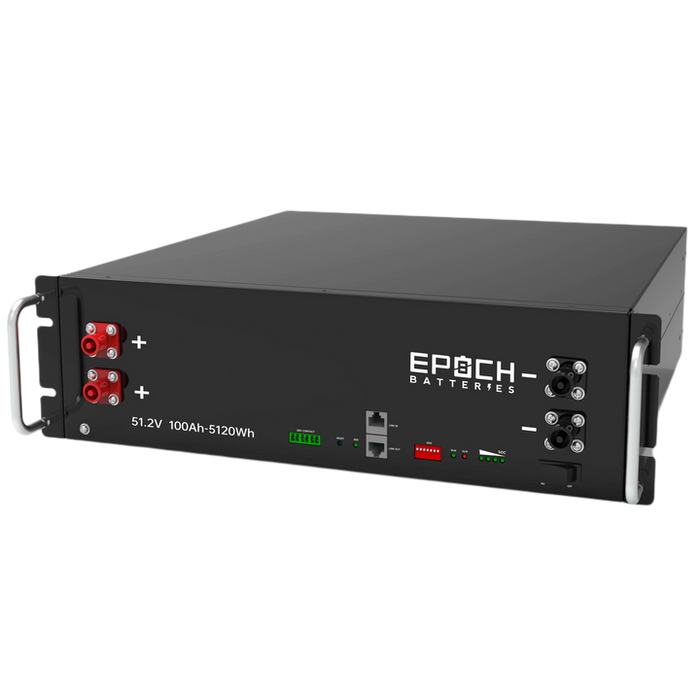

Epoch 48V 100Ah 5.12kWh - Self-Heating Server Rack Lithium Battery
SKU SR48100H
Original price
$1,499.00
-
Original price
$1,499.00
Original price
$1,499.00
$1,499.00
-
$1,499.00
Current price
$1,499.00
FREE FREIGHT ON ORDERS $499+
- ALL WIRING IS INCLUDED
- LiFePO4 Chemistry
- 100Ah Capacity - 5120kWh
- SELF-HEATING - Charge as low as -25°C
- 100A Max Continuous Discharge (119A 5mins Discharge) (200A 15sec Peak Discharge)
- CAN/RS485 Communication
- Compatible INVERTER list - Victron/Sol-Ark/Solis/Growatt/Studer/Goodwe/Sunsynk/Voltronic/ALPHA-OUTBACK/Deye/Sofar/SMA
- LUXPOWER/Schneider/TBB/MPP/SAJ/MEGAREVO

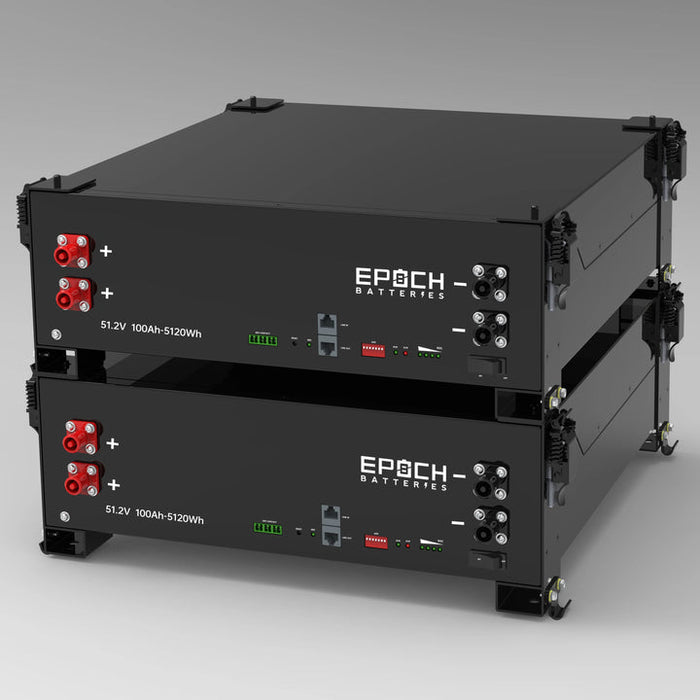

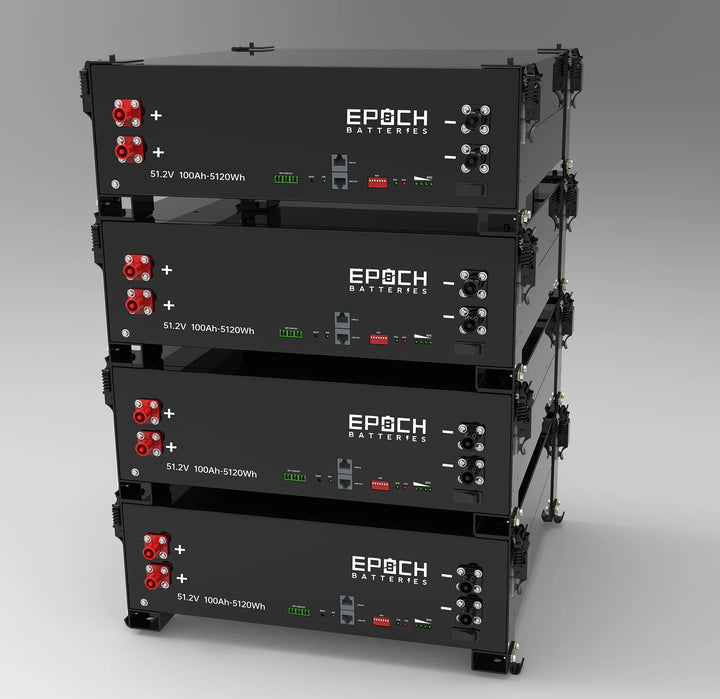

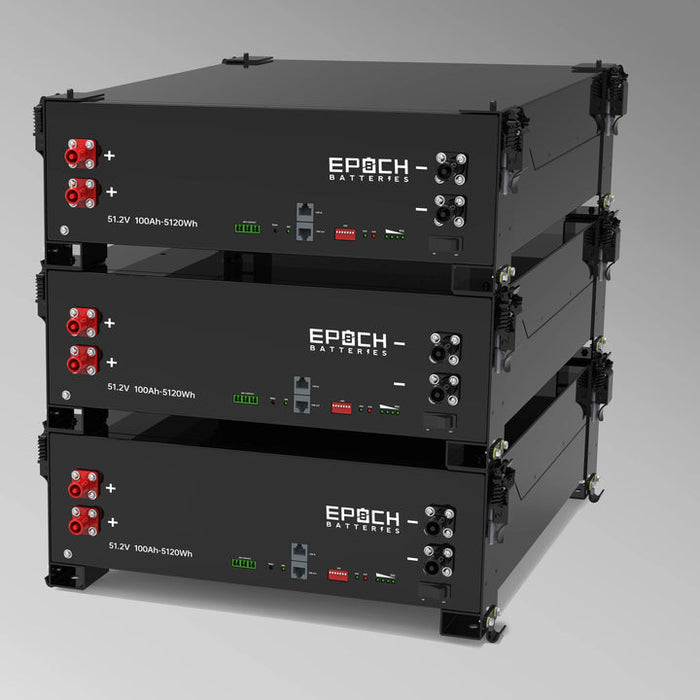

- Max 32 in parallel, Plug & Play
- 6000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
SPECS
Configuration
Cell Configuration: 16S1P
Chemistry: LiFePO4
Current
Ah Capacity: 100Ah
Max Continuous Discharge Amps: 100A
Max Charge Current Amps: 70A
Max Discharge Peak Current Amps: 200A @ 15sec
Series | Parallel: Max (32) in Parallel, Plug & Play
Voltage
Voltage: 51.2V
Max Charge Voltage: 56.0V
Operating Voltage Range: 48.0V - 56.0V
Temperature
Charge Temp Range: -10°C (14°F) / 50°C (122°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 50°C (122°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)
Weight: 101lbs
Length: 17.4 (inches)
Width: 18.1 (inches)
Height: 5.2 (inches)
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
IP20
Experience worry-free adventures with our robust IP54 protection. Your battery is effectively shielded against dust and water splashes, giving you the confidence to use it in light rain or dusty conditions. While not fully waterproof, IP54 provides reliable protection for most everyday outdoor scenarios.
- Dust Protected
- Splash Resistant
- Weather Resistant
- Daily Use Protection
