General Components WALRUS 5000C Water Heater Kit
SKU GC0070
Original price
$1,099.00
-
Original price
$1,099.00
Original price
$1,099.00
$1,099.00
-
$1,099.00
Current price
$1,099.00
FREE FREIGHT ON ORDERS $499+

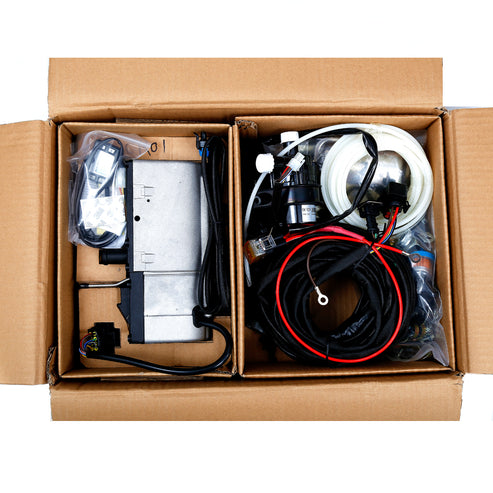

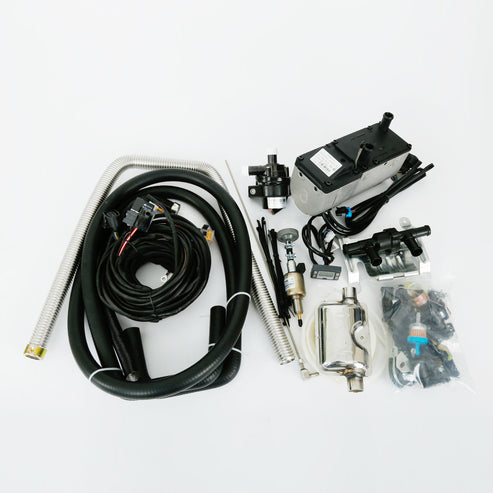

The Walrus 5000C delivers 5kW (17,000 BTU) of efficient water and/or air heating for diesel or gas vehicles. Built to perform in harsh cold, it features an elevation adjustment function for reliable operation. This hydronic heater ensures fast starts and comfort in any environment. The complete kit includes everything needed for installation: fuel pump, wiring harness, coolant pump, exhaust pipe with muffler, mounting hardware, and more.
- Powerful Heating: Provides 5kW/17,000 BTU of heat

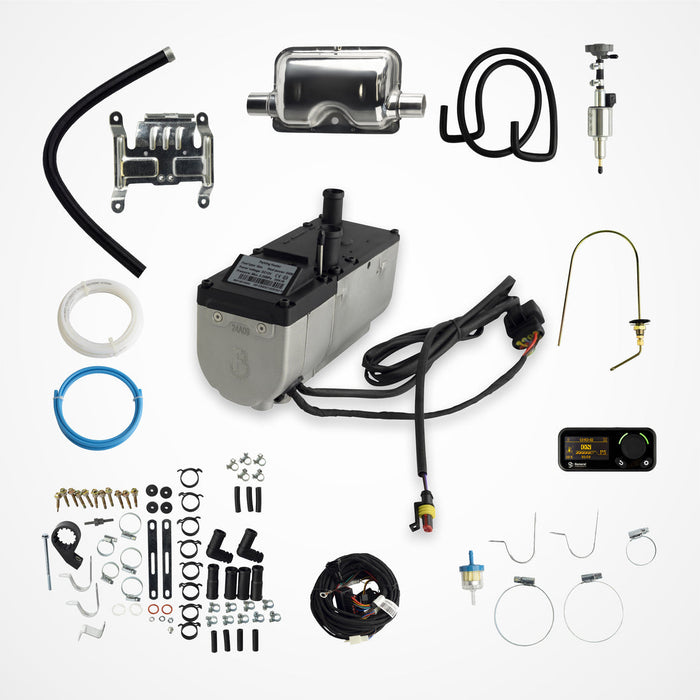

- Complete Installation Kit: Includes a mounting bracket, hardware, fuel pump, fuel line, wiring harness, exhaust pipe with muffler, coolant pump, screws, clamps, and straps.
- Built-In Elevation Adjustment: Adaptable to elevations up to 5000 meters, ensuring consistent performance in high-altitude environments.
- Versatile Application: Suitable for diesel engines and other systems that use liquid as a heat-carrying medium.

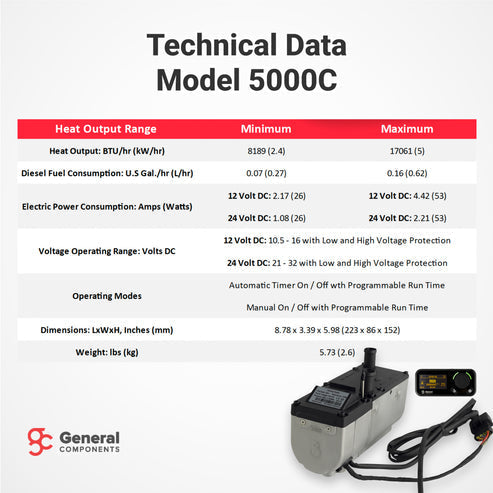

| Specification | Value |
|---|---|
| Heat Output: BTU/hr (kW/hr) | 8189(2.4) – 17061(5) |
| Diesel Fuel Consumption: U.S Gal./hr (L/hr) | 0.07(0.27) – 0.16(0.62) |
| Electric Power Consumption: Amps (Watts) @12VDC | 2.17(26) – 4.42(53) |
| Electric Power Consumption: Amps (Watts) @24VDC | 1.08(26) – 2.21(53) |
| Voltage Operating Range: Volts DC (for 12V models) | 10.5 – 16 with Low and High Voltage Protecton |
| Voltage Operating Range: Volts DC (for 24V models) | 21 – 32 with Low and High Voltage Protecton |
| Operating Modes | Automatic Timer On / Off wth Programmable Run Time |

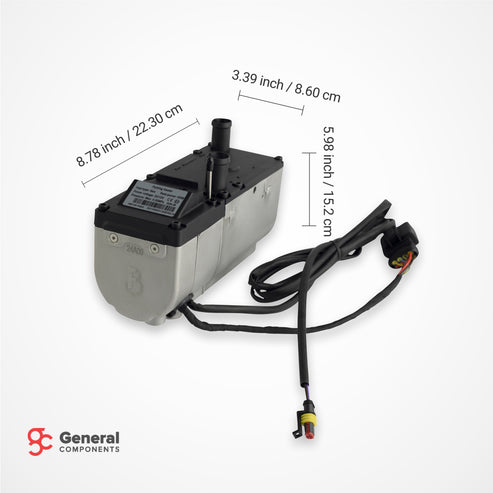

| Dimensions: LxWxH, Inches (mm) | 8.78 x 3.39 x 5.98 (223 x 86 x 152) |
| Weight: lbs (kg) | 5.73 (2.6) |
Warranty
- 2-Year Warranty when installed by a certified dealer
- 1-Year Warranty for marine or off-road use
- Full access to our support team + dealer network across North America
