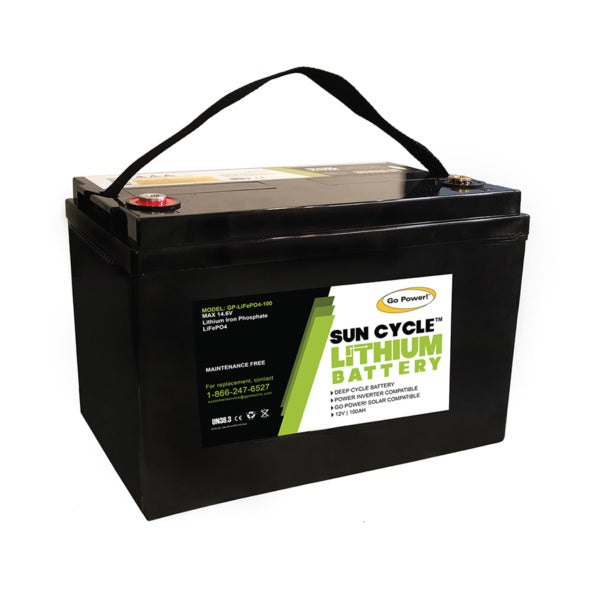

Go Power 100Ah LiFePO4 Solar Battery - GP-LIFEPO4-100
FREE FREIGHT ON ORDERS $499+
Go further off-the-grid with the new Go Power! 100ah Lithium Iron Phosphate solar battery. Built specifically for mobile applications, this deep cycle battery is ideal for life on the road.
Lithium technology offers a lightweight, safe alternative to traditional batteries, giving almost double the usable capacity of Lead Acid. The GP-LIFEPO4-100 provides 100 amp-hours of DC power. Use on its own or connect up to four together to build a powerful battery bank.
Product Overview
- Compatible with all Go Power! solar, inverters and charge controllers
- Max Power Capacity; carries almost double the power of regular batteries
- Lightweight
- Quick charging
- Built-in Battery Management System (BMS)
- Over and under voltage protection
- Over and under temperature protection
- Charge and discharge over current protection
- Short circuit protection
- Drop-in replacement for Group 31 Lead Acid or AGM batteries
- 10-year warranty
Safety Features

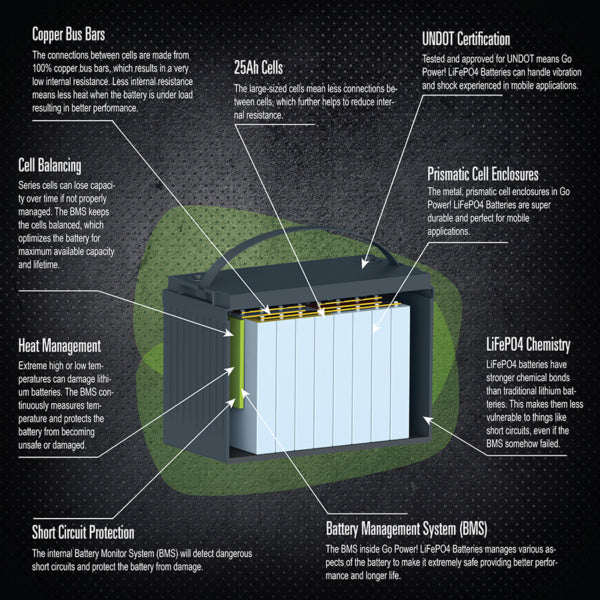

Go Power! Lithium batteries feature a built-in Battery Management System (or, BMS) which ensures safety and long battery life by constantly monitoring battery performance, internal temperature, and other critical elements required in safely functioning battery.
Go Power! LiFePO4 Lithium batteries feature several safety components in the BMS, which Include:
- Over and under voltage protection, which disconnects the battery from the load or charger, to prevent damage if it occurs
- Over and under temperature protection, which also disconnects from the load if the temperature limits are exceeded
- Charge and discharge over current protection, which automatically balances the voltages during recharge cycles to bring all the battery cells to full charge at the same time, ensuring longer battery life.
- Short circuit protection, which open circuits the battery terminals if a short is detected

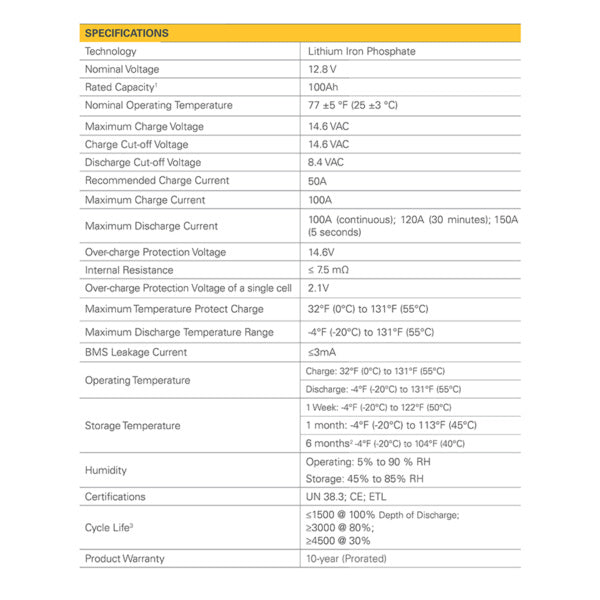

SPECIFICATIONS |
|
|
Technology |
Lithium Iron Phosphate |
|
Nominal Voltage |
12.8 V |
|
Rated Capacity |
100Ah |
|
Nominal Operating |
77 ±5 °F (25 ±3 °C) |
|
Maximum Charge Voltage |
14.6 VAC |
|
Charge Cut-off Voltage |
14.6 VAC |
|
Discharge Cut-off Voltage |
8.4 VAC |
|
Recommended Charge Current |
50A |
|
Maximum Charge Current |
100A |
|
Maximum Discharge Current |
100A (continuous); 120A (30 minutes); 150A (5 seconds) |
|
Over-charge Protection Voltage |
14.6V |
|
Internal Resistance |
≤ 7.5 mΩ |
|
Over-charge Protection Voltage of a single cell |
2.1V |
|
Maximum Temperature Protect Charge |
32°F (0°C) to 131°F (55°C) |
|
Maximum Discharge Temperature Range |
-4°F (-20°C) to 131°F (55°C) |
|
BMS Leakage Current |
≤3mA |
|
Operating Temperature |
Charge: 32°F (0°C) to 131°F (55°C) |
|
Discharge: -4°F (-20°C) to 131°F (55°C) |
|
|
Storage Temperature |
1 Week: -4°F (-20°C) to 122°F (50°C) |
|
1 month: -4°F (-20°C) to 113°F (45°C) |
|
|
6 months: -4°F (-20°C) to 104°F (40°C) |
|
|
Humidity |
Operating: 5% to 90 % RH Storage: 45% to 85% RH |
|
Certifications |
UN 38.3; CE |
|
Cycle Life |
≤1500 @ 100% Depth of Discharge; ≥3000 @ 80%; ≥4500 @ 30% |
|
Product Warranty |
10-year (Prorated) |
