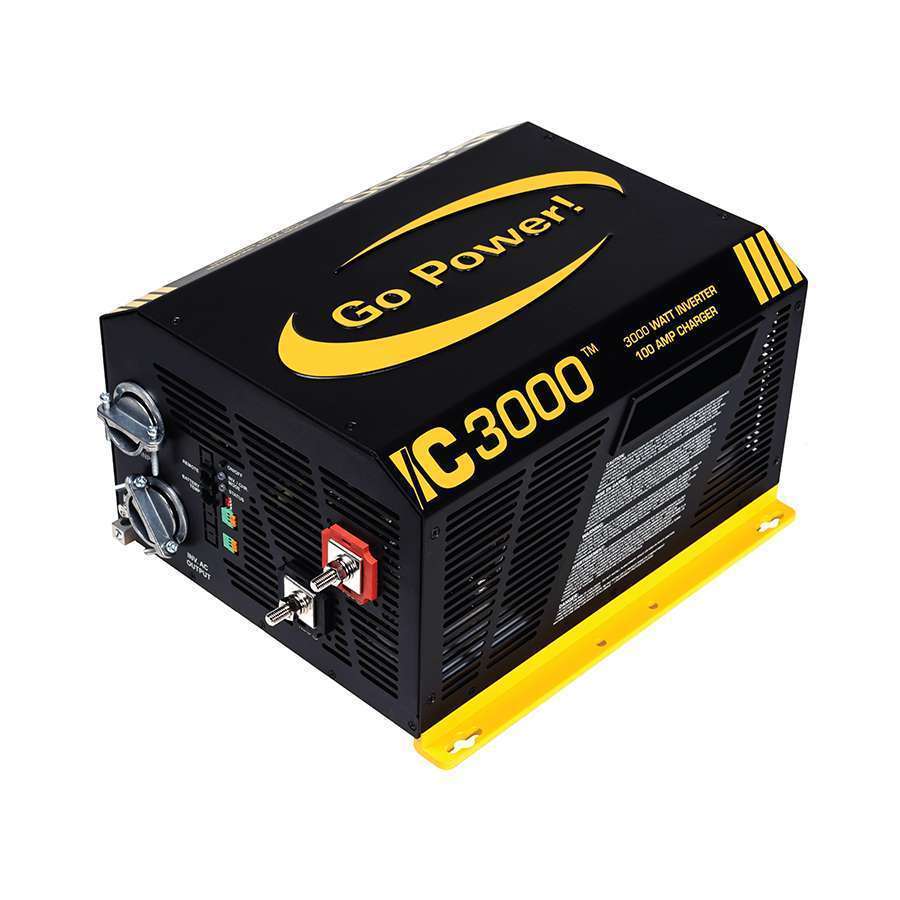

Go Power 3000W IC Series Inverter Charger

Go Power!'s IC Series 3000-watt Inverter Charger offers more power in the same footprint. An inverter, battery charger and transfer switch in one compact unit. The Go Power! 3000-watt Inverter Charger 3000 delivers top features and performance at an economical price. The GP-IC-3000 has a compact footprint that saves space and simplifies installation - there are fewer components and cables to install!

The two 50 amp legs set its performance apart from common 50 amp inverter chargers. The configuration allows users to make full use of a 100 amp shore power service (240V) by passing through up to 12,000 watts of power! It is also compatible with all 30 amp services.

It is a 3-in-1 system that expertly combines an inverter, battery charger and automatic transfer switch into one powerful and lightweight unit.

Features

  • 3000 watt pure sine wave inverter; 4800 watt surge (5 seconds)
  • High inverter efficiency - >90%
  • 125 amp battery converter/charger
  • 100 amp automatic transfer switch (50 amps per leg at 120V AC)
  • Built-in handles offers easier handling during installation
  • Industry standard protection features
  • Meets UL 458 with marine supplement
  • 3 year warranty

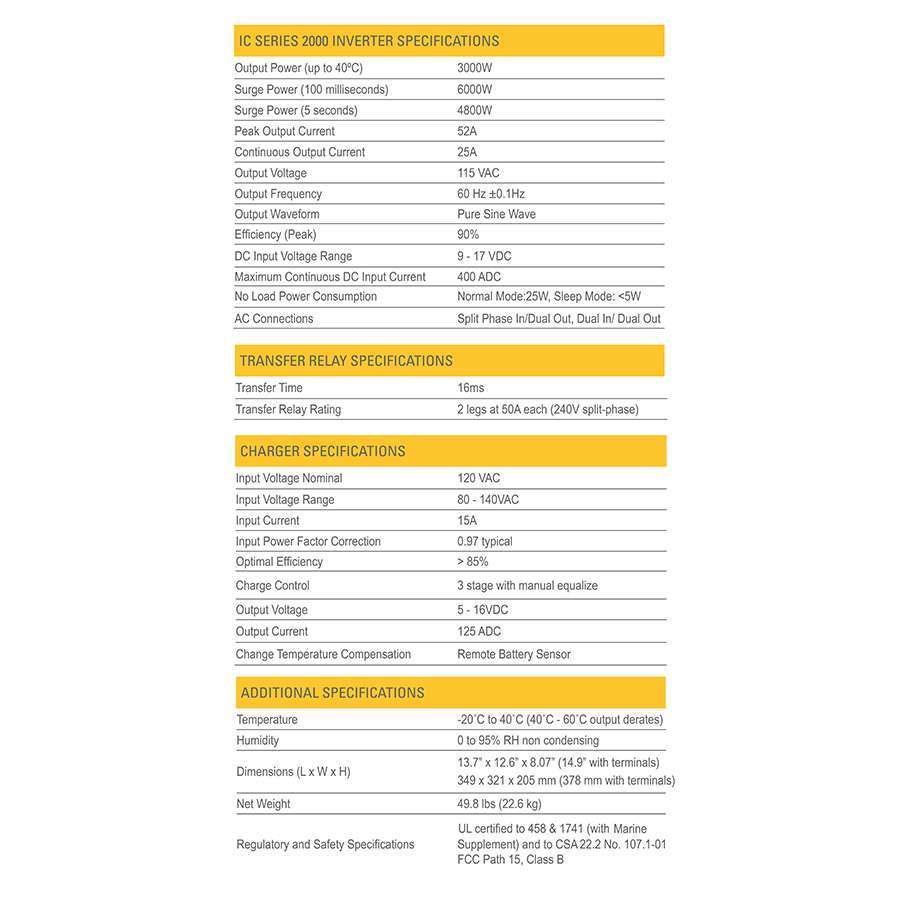

Inverter Specifications

Output Power (up to 40ºC)

3000W

Surge Power (100 milliseconds)

6000W

Surge Power (5 seconds)

4800W

Peak Output Current

52A

Continuous Output Current

25A

Output Voltage

115 VAC

Output Frequency

60 Hz ±0.1Hz

Output Waveform

Pure Sine Wave

Efficiency (Peak)

90%

DC Input Voltage Range

9-17 VDC

Maximum Continuous DC Input Current

400 ADC

No Load Power Consumption

Normal Mode:25W,

Sleep Mode: <5W

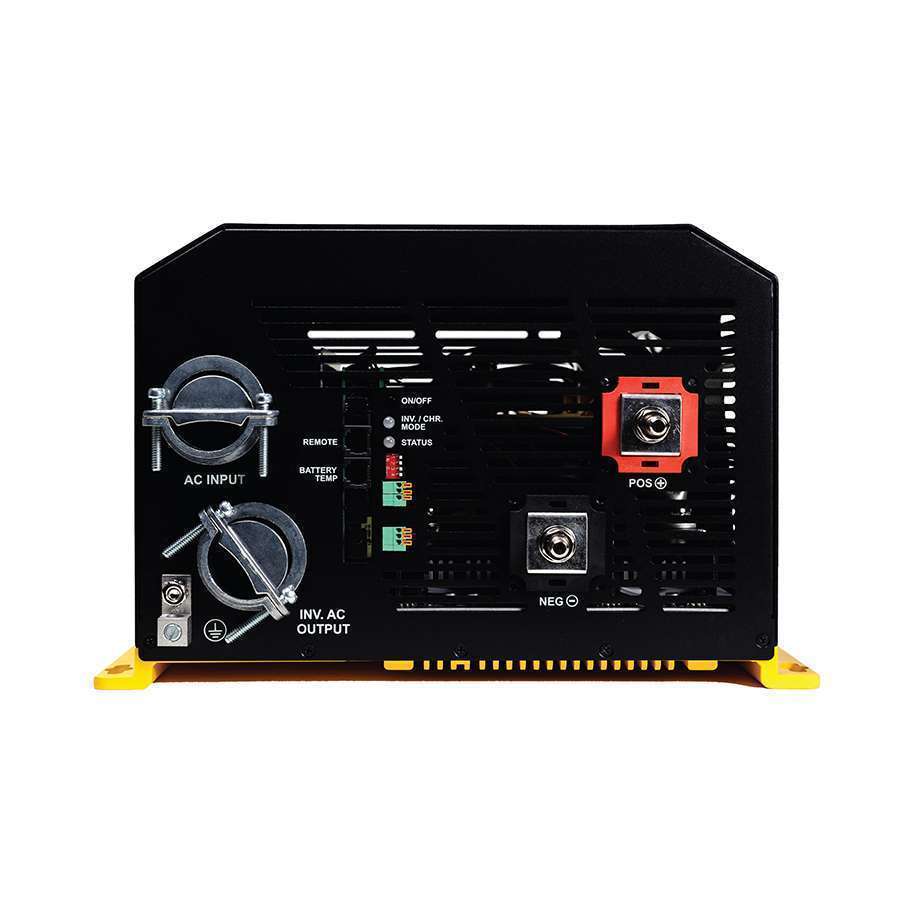

AC Connections

Split Phase In/Dual Out,

Dual In/ Dual Out



Transfer Time

16ms

Transfer Relay Rating

2 legs at 50A each (120V each leg)





Input Voltage Nominal

120 VAC

Input Voltage Range

80 – 140VAC

Input Current

15A

Input Power Factor Correction

0.97 typical

Optimal Efficiency

>85%

Charge Control

3 stage with manual equalize

Output Voltage

5-16 VDC

Output Current

125ADC

Change Temperature Compensation

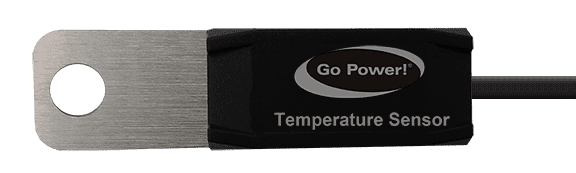

Remote Battery Sensor



Temperature

-20˚C to 40˚C

(40˚C – 60˚C output derates)

Humidity

0 to 95% RH non condensing

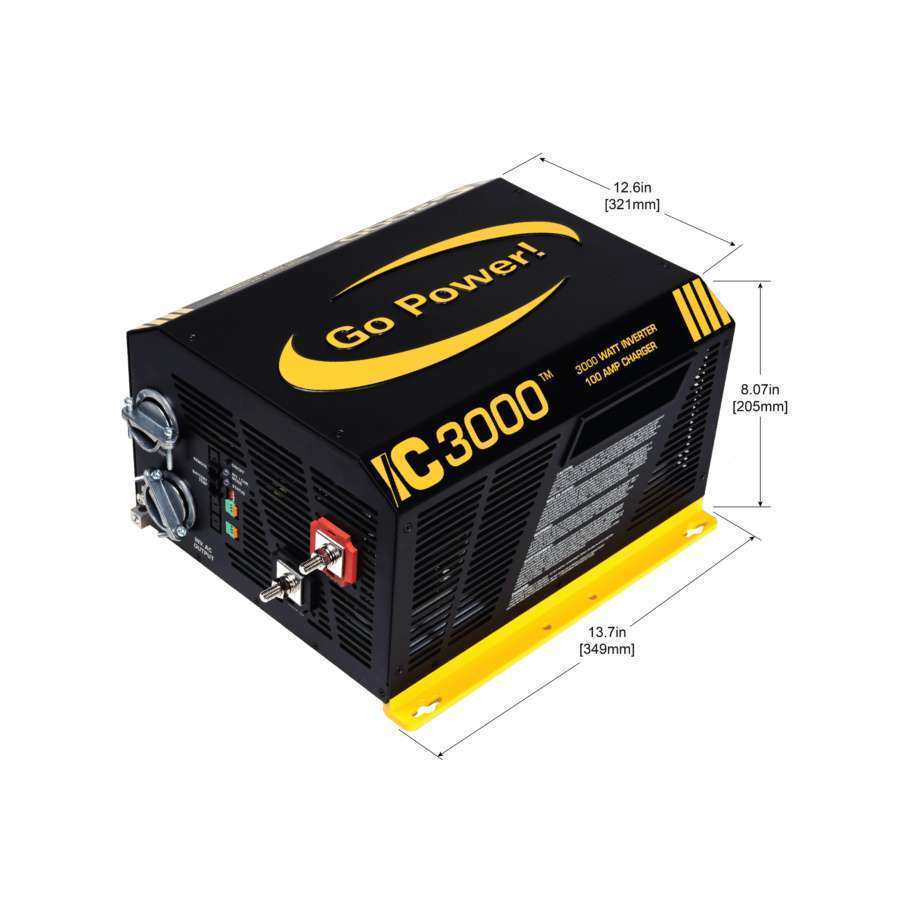

Dimensions (L x W x H)

13.7” x 12.6” x 8.07”

348 x 320 x 205 mm

Net Weight

49.8 lbs (22.6 kg)

Regulatory and Safety Specifications

UL certified to 458 & 1741 (with Marine Supplement) and to CSA 22.2 No. 107.1-01 FCC Path 15, Class B
