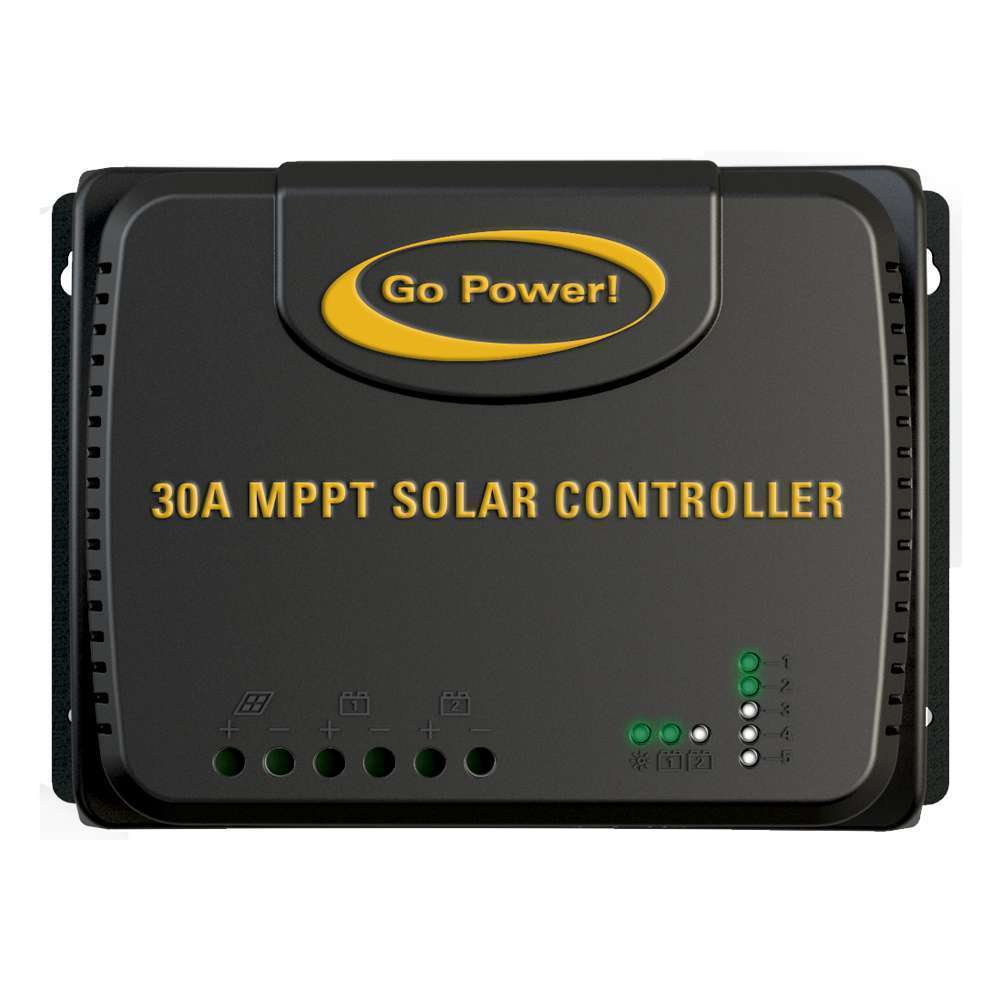

An RV-C capable 30 Amp MPPT Solar Controller uses Maximum Power Point Tracking (MPPT) charging with up to 98% efficiency. MPPT solar controllers optimize an RV’s solar charging in all sun and tilt conditions, and are ideal for series wiring configurations. Easy to install compatible with "smart RV" RV-C systems, this controller comes standard in the 190-watt Solar Eclipse Kits.
Features:
- Easily integrates into onboard communications (RV-C) systems
- The most efficient MPPT controller for RVs
- Compatible with all battery types, including Lithium
- Maximizes all power from your solar modules
- Stackable: add additional controllers to expand your solar array
- Optional Bluetooth remote
- 5-year warranty
Optional Accessories
- Surface-mounted remote display; shows the charge current to the battery, and battery voltage - (GP-RVC-R)
- Bluetooth® Wireless Technology; works seamlessly with the Go Power! Connect app to provide wireless monitoring of the controller's parameters and data view
|

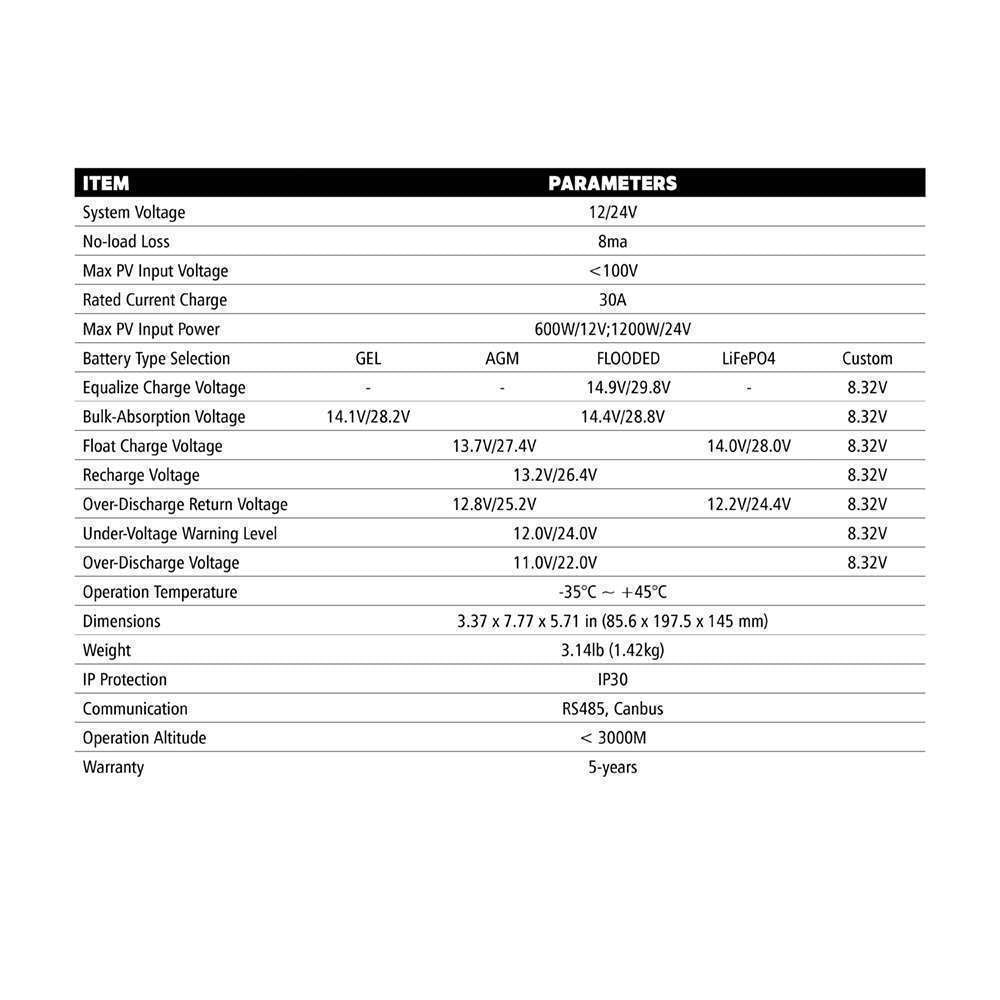

SPEC |
PARAMETERS |
||||
|
System Voltage |
12/24V |
||||
|
No-load Loss |
8ma |
||||
|
Max PV Input Voltage |
<100V |
||||
|
Rated Current Charge |
30A |
||||
|
Max PV Input Power |
600W/12V;1200W/24V |
||||
|
Battery Type Selection |
GEL |
AGM |
FLOODED |
LiFePO4 |
Custom |
|
Equalize Charge Voltage |
– |
– |
14.9V/29.8V |
– |
8.32V |
|
Bulk-Absorption Voltage |
14.1V/28.2V |
14.4V/28.8V |
8.32V |
||
|
Float Charge Voltage |
13.7V/27.4V |
14.0V/28.0V |
8.32V |
||
|
Recharge Voltage |
13.2V/26.4V |
8.32V |
|||
|
Over-Discharge Return Voltage |
12.8V/25.2V |
12.2V/24.4V |
8.32V |
||
|
Under-Voltage Warning Level |
12.0V/24.0V |
8.32V |
|||
|
Over-Discharge Voltage |
11.0V/22.0V |
8.32V |
|||
|
Operation Temperature |
-35°C ~ +45°C |
||||
|

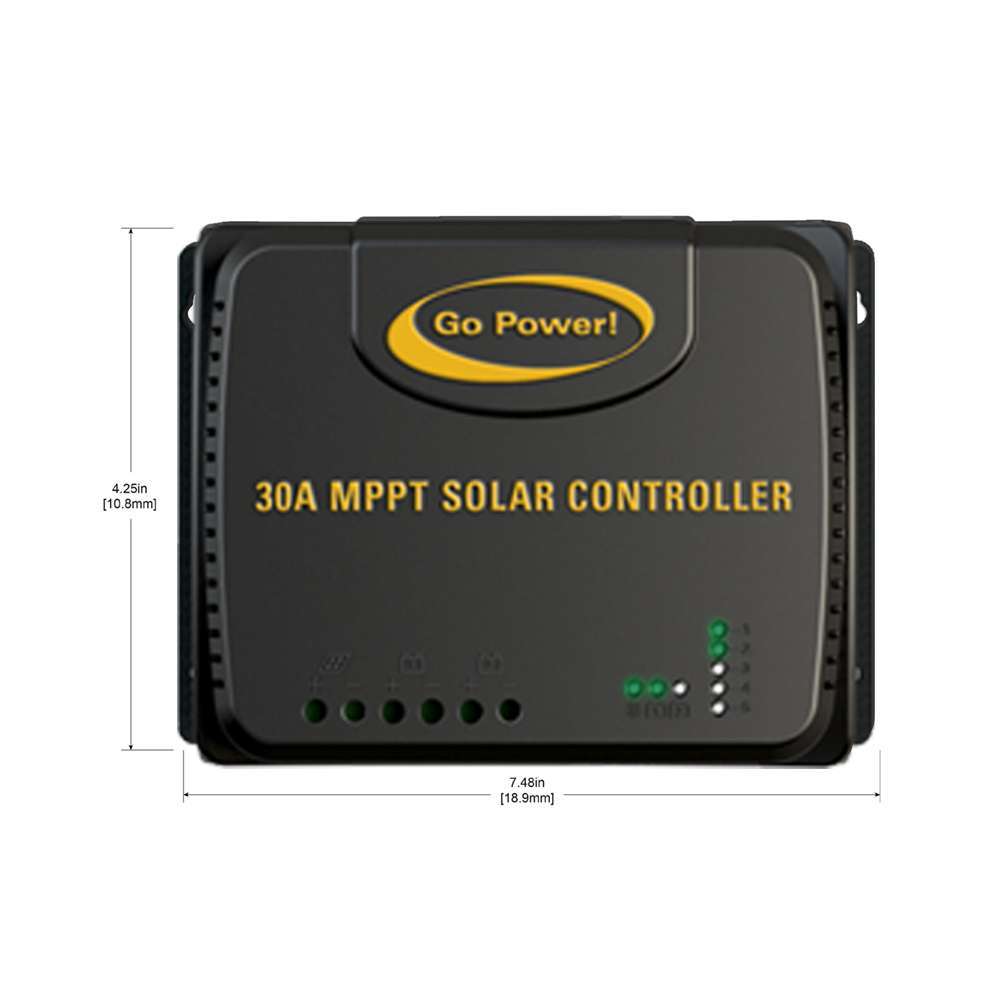

Dimensions |
3.37 x 7.77 x 5.71 in (85.6 x 197.5 x 145 mm) |
||||
|
Weight |
3.14lb (1.42kg) |
||||
|
IP Protection |
IP30 |
||||
|
Communication |
RS485, Canbus |
||||
|
Operation Altitude |
< 3000M |
||||
|
Warranty |
5-years |
||||
