Mastervolt PowerCombi 12/1200-50 w/ Remote & Temp Sensor
FREE FREIGHT ON ORDERS $499+
Simple. Independent. Flexible.
The PowerCombi is a pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter / charger, it yet can easily be integrated into a MasterBus network (with additional interface).
With a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming—the PowerCombi offers simple installation with multiple operating modes, and can charge various battery chemistries—including a custom profile for use with Li-ion.

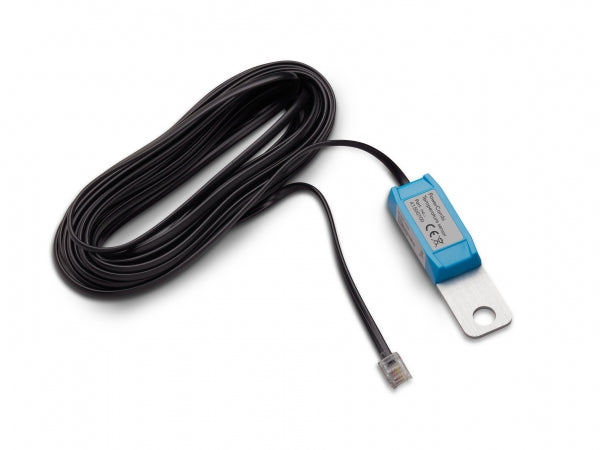

Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.

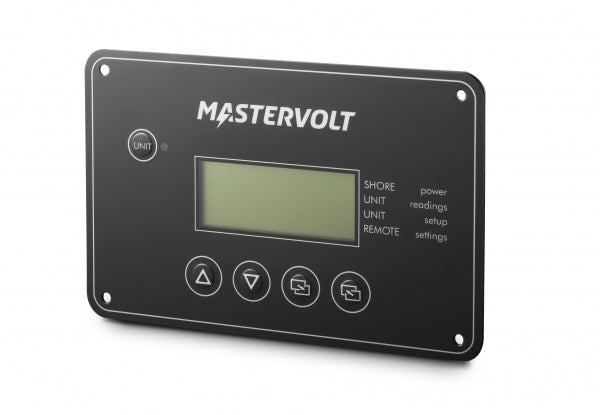

PowerCombi Remote Control
Control and monitor your PowerCombi inverter / charger via this easy to use remote monitor.
The LCD display is used for setting up the inverter / charger operation, as well as viewing current status of fault messages.
| Specifications battery charger | ||
| Input voltage range | 10 – 15.5 V | |
| Nominal input voltage | 12 V | |
| Max. charge current at 25 °C / 77 °F | 50 A DC | |
| Specifications transfer system | ||
| Transfer speed | 30 A (10ms) | |
| Communication & monitoring | ||
| Communication | MasterBus compatible via PowerCombi MasterBus Interface (part # 77032900) | |
| General specifications | ||
| Flat battery support (minimum charging) | no (6 V) | |
| Continuous power at 25 °C / 77 °F, cos phi 1 | 1200 W | |
| Continuous power at 50 °C / 122 °F, cos phi 1 | 1200 W | |
| Surge power (3s) | 2400 W | |
| AC voltage / frequency | 120 V – 50/60 Hz selectable HF - pure | |
| Idle consumption | 25 W | |
| Dimensions, hxwxd | 386 x 251 x 116 mm 15.2 x 9.9 x 4.6 inch |
|
| Weight | 4.55 kg 10.0 lb |
|
| Compliance | UL458 & Supplement SA/CSA C22.2, UL 1741 no. 107.1-01KKK-A-1822F (pending, specifications subject to change) | |
| Technical specifications | ||
| Battery types | flooded, Gel, AGM, custom | |
| Temperature range (ambient temp.) | -20 °C to 60 °C -4 °F to 140 °F |
|
