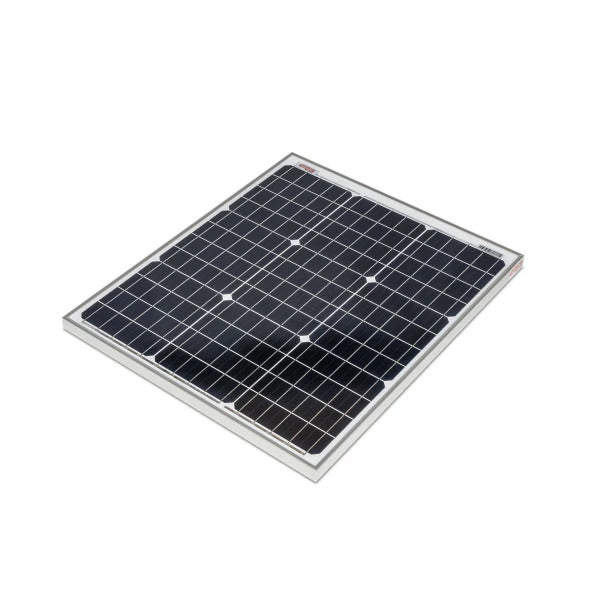

REDARC 50W Monocrystalline Solar Panel - SMSP1050
FREE FREIGHT ON ORDERS $499+
The REDARC 50W Monocrystalline Solar Panel is a standard monocrystalline flat panel designed to capture solar energy to keep batteries charged throughout the day.
Features
- Monocrystalline construction
- Anodised Aluminium Frame
- Robust tempered glass coating
Dimensions
23.2" × 19.9" × 1.4"
Looking for the best 50w solar panel for camping? The REDARC monocrystalline flat panels are highly efficient with a robust design. A tempered glass coating and a sturdy aluminium frame ensure that our panels will withstand harsh road conditions and extreme weather conditions.
These are designed for a fixed installation, typically on the roof area of RV’s, motorhomes, as well as some camper trailer and 4x4 vehicle applications.
Featuring an anodised aluminium frame and tempered glass coating they are well suited for outdoor use and employ MC4 style connectors for easy installation.
Fixed Solar Panels feature a weight improvement and smaller footprint design for their power output, effectively contributing to a lighter, smaller design with greater cell efficiency.
The Fixed Solar Panels will integrate into the REDARC product line and will be supported by existing Solar Regulator and Solar Accessory products.
Each panel is tested at time of manufacture to conform to CE standards, so you can be sure that the panel output is exactly as described in its specification.
Specs
| Country of Manufacture | China |
| Length (in) | 23.2" |
| Width (in) | 19.9" |
| Height (in) | 1.4" |
| Warranty | 2 Years |
| Weight (lb) | 7.9 lb |
| Short Circuit Current | 2.7 A |
| Open Circuit Voltage | 22.3 V |
| Construction | Monocrystalline |
| Operating Temperature | −40°F to +185°F |
| Peak Power | 50 W |
| Max Power Voltage | 20.0 V |
| Frame | Anodized aluminium |
| Max Power Current | 2.5 A |
| Cable Length | 3 ft |
| Short Circuit Current | 2.7 A |
| Standard Test Conditions | AM1.5 1000 W/m2 77°F |
| Conversion Efficiency | 20.6% |
