REDARC Smart Start SBI 12V 100A - SBI12

SKU SBI12
Original price $131.00 - Original price $131.00
Original price
$131.00
$131.00 - $131.00
Current price $131.00

Not seeing your wholesale pricing? LOG IN or SIGN UP

FREE FREIGHT ON ORDERS $499+

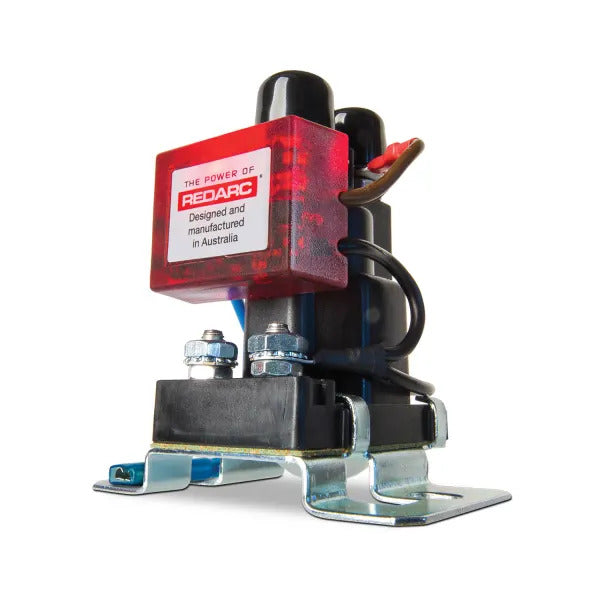

The REDARC Smart Start® SBI12 is a 100A 12V microprocessor-controlled battery isolator which protects the start battery from excessive discharge, while allowing the auxiliary battery to supply charge to non-essential loads.

  • Charge your auxiliary battery whilst driving.
  • Protection against a flat start battery.
  • Cost-effective and safe way to charge your auxiliary battery.
  • Compact in size and easy to install.
  • Power-saving technology.

Description

The REDARC Smart Start® SBI12 is a microprocessor-controlled battery isolator which protects the start battery from excessive discharge, while allowing the auxiliary battery to supply charge to non-essential loads. It is used as a solenoid priority system in dual battery systems and provides 12V DC incorporating 100A of continuous ratings. The SBI range manages battery charge for your secondary battery while on the move.

Power saving technology

The battery isolator is mostly used in 4WD and commercial vehicles. It incorporates electronic components that prevents the solenoid from generating high voltage transients. Due to the voltage drop associated with diode type isolation, it’s better than a diode battery isolator. A low standby current draw and fault detection and LED indication of operation warns users of faults such as voltage drops, over-voltage, and excessive current draw conditions. Safely maintain the charge your dual battery system with the Smart Start SBI12 battery isolator.

Features:

  • Overmold design
  • Compact size and easy to install
  • Silver contacts ensure longer life and suitable for marine applications
  • Power saving technology
  • Fault indication
  • Fully surge protected

Specs

Output Voltage 12VDC
Output Current Rating (Cont.) 100A
Country of Manufacture Australia
Input Current (Max.) 100A
Input Fuse Rating 100A
Output Fuse Rating 100A
Length (in) 3.15
Width (in) 2.95
Height (in) 2.48
Warranty 2 Years
Weight (lb) .44



Downloads

Product Brochure

Installation Manual
