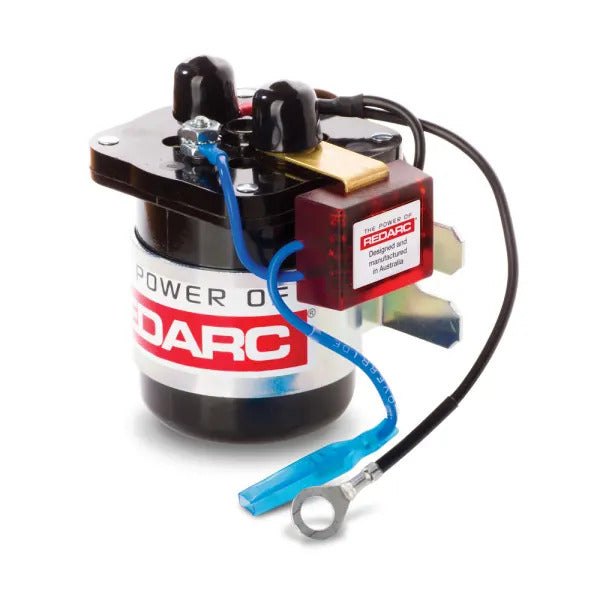

REDARC Smart Start SBI 12V 200A - SBI212

SKU SBI212
Sold out
Original price $264.00 - Original price $264.00
Original price
$264.00
$264.00 - $264.00
Current price $264.00

Not seeing your wholesale pricing? LOG IN or SIGN UP

FREE FREIGHT ON ORDERS $499+

The REDARC Smart Start® SBI212 is a 200A 12V battery isolator used as a solenoid priority system to protect the start battery from excessive discharge while the auxiliary battery is supplying non-essential loads.

  • Charge your auxiliary battery whilst driving.
  • Protection against a flat start battery.
  • Cost-effective and safe way to charge your auxiliary battery.
  • Compact in size and easy to install.
  • Power-saving technology.

Description

The REDARC Smart Start® SBI212 is a battery isolator used as a solenoid priority system to protect the start battery from excessive discharge while the auxiliary battery is supplying non-essential loads. It provides 12-volt DC with the incorporation of 200A of continuous ratings.

Power saving technology

The SBI212 is designed for extremely heavy-duty operations. It’s primarily used in commercial vehicle dual battery systems. It incorporates electronic components to prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation.

Fault detection

Its low standby current draw and sophisticated fault detection and LED indication of operation warns the user of faults including over-voltage, voltage drop, and excessive current draw conditions.

Best dual battery isolator

The Smart Start SBI battery isolator is a safe way to top-up your secondary battery in your dual battery system with its power saving technology for the ultimate performance.

Features:

  • Overmold design
  • Compact size and easy installation
  • Silver contacts for longer life and suitable for marine applications
  • Power saving technology
  • Fault indication
  • Fully surge protected

SPECS

Output Voltage 12VDC
Output Current Rating (Cont.) 200A
Country of Manufacture Australia
Input Current (Max.) 200A
Input Fuse Rating 200A
Output Fuse Rating 200A
Length (in) 3.94
Width (in) 3.74
Height (in) 3.54
Warranty 2 Years
Weight (lb) 1.32



Downloads

Product Brochure

Instruction Manual
