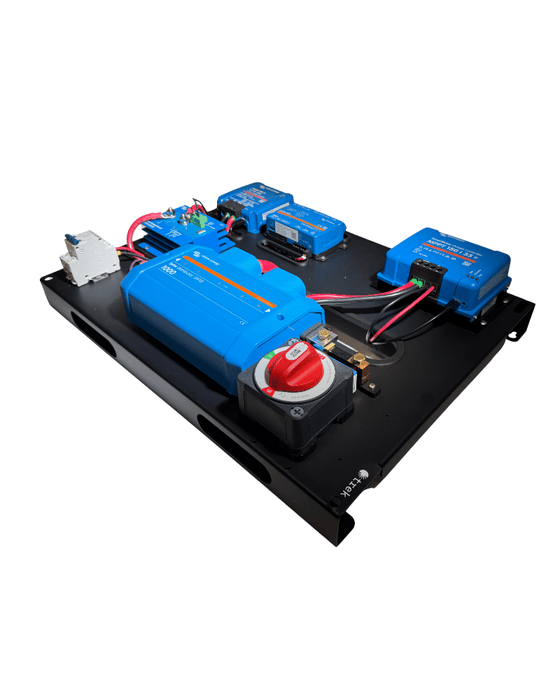

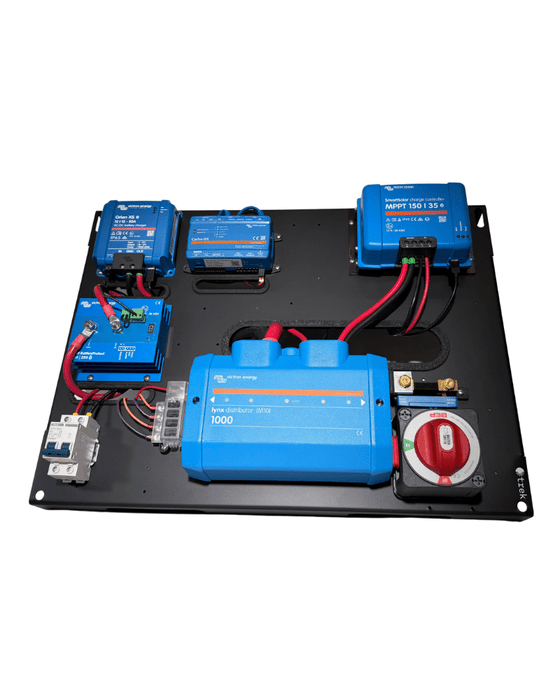

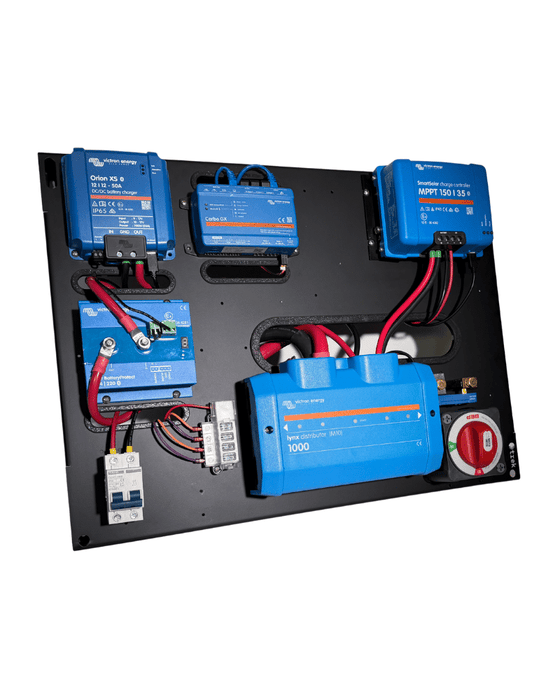

ROAMiQ x Victron FLEX 48V trekMount Power System | Pre-Wired | Pre-Configured

The first all-in-one Victron energy mounting system. Save space, and install with ease.

*some components shown in product image may vary - see below for included components

For a list of ROAMiQ compatible devices → Click Here

Suggested Add-Ons:

• • Victron MultiPlus-II
  • Epoch 48V 100Ah V2-T
  • Victron GX Touch
  • ROAMiQ Display Screen (can be used in place of GX Touch)

Bench-Built, Fully Integrated Power & Control System

The ROAMiQ × Victron FLEX is a bench-built with Victron Energy, trekMount and ROAMiQ, engineered to eliminate the time, space, and variability of traditional on-vehicle power builds. Every FLEX ships pre-mounted, pre-wired, pre-configured, and fully tested before it ever reaches your door.

• Bracket dimensions: Length: 25 in, Width: 20 in, Height: 6 in

What’s Included in This Version

This configuration includes a complete Victron-based power architecture with integrated mounting, distribution, monitoring, and charging components, assembled on a modular mounting bracket and delivered ready to install.

• Modular Mounting Bracket

• ROAMiQ Control Hub
• 5 Zone Lighting Controller
• Victron Orion-Tr Smart 12/48-Volt 8 Amp 380-Watt DC-DC Charger | Isolated (Bluetooth)
• Victron Energy Cerbo GX MK2
• Victron Lynx Distributor (M10)
• Victron SmartSolar MPPT 100V 20 Amp 12/24/36/48-Volt Solar Charge Controller (Bluetooth)
• Victron MEGA-Fuse up to 80V + Spares - (Assorted 8 Pack)
• Victron Energy Smart BatteryProtect 48V 100A

• BEP Pro 770-EZ-Mount On/Off Battery Disconnect Switch 400A
• Solar PV Disconnect 250V DC 32A (2-pole)
• Peplink MAX BR1 Mini 5G with Wi-Fi
• 5-Port Industrial PoE Switch
• Appropriate Wiring, Terminals, Fusing, and Accessories
• Complete Wiring Diagram

Designed for Speed, Density, and Repeatability

FLEX consolidates primary power and control into a compact, low-profile assembly mounted on a structural bracket. Components are designed with optimized conductor lengths and fixed routing paths, resulting in a dramatically smaller footprint than traditional wall-mounted Victron builds.

Rather than spacing components apart across a large wall area, the system uses a purpose-built structural bracket within a much smaller footprint.

The result is a clean, space-efficient installation that preserves Victron-recommended clearances, maintains proper cooling behavior, and enables professional-grade installations in tighter utility bays and cabinets without compromising reliability or serviceability.

Install time is measured in minutes, not days.

Fully Bench-Built & Tested Before Shipment

Each ROAMiQ × Victron FLEX is:

• Assembled and wired on the bench

• Electrically verified and inspected

• Pre-configured for proper charging logic and system behavior

• Prepared for fast, clean installation

All internal circuits are completed using properly sized cables, crimped terminals, and heat-shrink.

Modular by Design — Built for Customization

While this version represents a proven baseline configuration, the bracket is intentionally modular and fully customizable.

Any component can be substituted or adjusted to meet the specific requirements of your build, including:

• DC-DC charging configuration, including the additional of high output alternators/regulators

• Solar charge controller selection


• Networking, monitoring, or control components

• Protection and disconnect hardware

Compact Footprint, Maximum Capability

By optimizing components and eliminating excess wiring length, the system:

• Reduces required cabinet or wall space

• Improves serviceability and visual cleanliness

• Minimizes installer variability

• Creates a repeatable, professional-grade installation every time

The result is a power appliance, not a wiring project.

Important Note on Customization

Customization Available

The ROAMiQ × Victron FLEX platform is modular. Any component shown can be swapped, upgraded, or reconfigured to meet the specific electrical, space, or usage requirements of your vehicle. If your build requires a different charging strategy, solar capacity, or expansion capability, our team can configure a system tailored to your needs.

Ideal For

• Professional upfitters and OEM builders

• High-end campervans and RVs

• Overland and expedition vehicles

• Fleet and repeatable production builds

• Customers who want maximum reliability with minimal install time

*if this kit does not meet your needs, custom kits are available for order - contact us to design your preferred system: cs@upfitterswholesale.com
