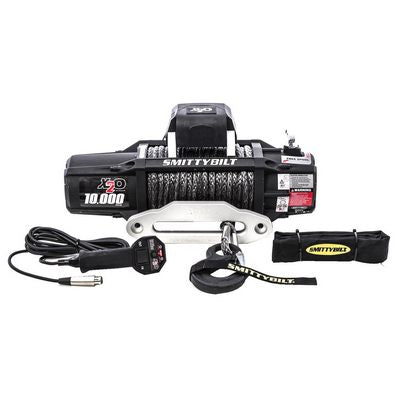

Smittybilt X20 10k Waterproof Wireless Winch w/ Synthetic Rope - 98510

SIGN IN FOR WHOLESALE PRICE

Svg Vector Icons : http://www.onlinewebfonts.com/icon
  • Not Vehicle Specific
  • Rated line pull = 10,000lbs. (4,545kgs) Single Line
  • Motor: 6.6hp Series Wound
  • Control: Remote Switch, 12 ft. (3.7m) lead
  • Gear Train: 3-Stage Planetary
  • Clutch: Sliding Ring Gear
  • Brake: Automatic Out-Of-Drum
  • Drum Size: Diameter 2.5 inch
  • Cable: 98.5 feet 3/8 inch Diameter
  • Cable type: synthetic rope
  • Remote control Included
  • Integrated Wireless Remote
  • Recommended Battery: 650CCA Minimum for Winching
  • Battery Leads: 25mm2, 72 inch(1.83m)1
  • Finish: Textured black
  • Weight: 67.0lbs. (30.4Kgs)
  • Mounting Bolt Pattern: = 10.0 inch x 4.5 inch
  • Overall Dimensions: (L x W x H) 22.3 x 5.4 x 9.4

DESCRIPTION

The Smittybilt X2O Winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X2O winch features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that deliver lightning-fast line speeds. If you're looking for something more versatile, check out the X2O Comp Series, which includes all of the features and benefits of the original series, and adds a synthetic winch rope. And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation.

If the 10 Commandments of Off-Roading existed, they'd probably include Thou shalt never hit the trails without a winch."" Powering over super-rocky ground, pulling yourself out of a tight spot or helping out another rider these tasks are only possible with a powerful recovery winch. Fortunately, 4 Wheel Parts has exactly what you need. We stock Smittybilt X20 winches plus hundreds of other winch models, accessories and mounting gear at everyday low prices. So when it's time to gear up, 4 Wheel Parts is your best destination.

-->
