Zeus High-Energy Alternator Regulator by ARCO

ARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth (no additional equipment required) and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you have access to information on your system that you never had before. This information allows you to regulate your system and optimize your battery charge and alternator output resulting in a safer experience while protecting your energy system investment.

Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.

Through the ARCO Zeus application, you are in good hands as your data is automatically logged and can be shared with your technician to troubleshoot your system when remote. You can even import your remote technician’s configurations.

Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries to lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy to understand options.

Zeus also takes into consideration the power of your engine and allows you to configure the alternator’s power take off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with a press of the button, whereby it focuses the alternator’s performance to the creation of energy in replenishing your battery bank quickly.

Consistent with Zeus’ ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.

FEATURES

  • Secure Bluetooth connection for easy installation, configuration, and updates
  • Harnesses, Thermistors and NMEA 2000 kit included - Zeus comes with both a battery wiring harness and alternator wiring harness as well as 2 thermistors and the NMEA 2000 kit ($159 in savings)
  • Native ARCO Zeus application on mobile/tablet for easy to use and intuitive dashboard, system information, and a myriad of pre-set and customizable regulator settings. (Compatible with iOS and Android.)
  • State of Charge – Zeus is the first to the market regulator with built in State of Charge which eliminates the need for an additional state of charge monitor
  • Generator Mode – Is a first to market advanced feature of ARCO’s Zeus is that it can turn your engine into a dedicated generator with a press of the button, whereby it focuses the alternator’s performance to the creation of energy in replenishing your battery bank quickly. This sustainability feature enables you to use less fuel to drive energy to your alternator.
  • Pre-set battery libraries – Whether you are using Lithium (LiFePo4) batteries to lead-acid Deep Cycle batteries, ARCO Zeus has you covered with its growing pre-set battery libraries.
  • Data logging and sharing - Log your alternator’s performance and settings wirelessly and automatically. Communicate setting files and performance logs with a push of a button to technical support as well as import and automatically configure a technician's recommendations remotely.
  • CAN bus and NMEA 2000-integrated networks enable you to transmit relevant data to RV navigation systems, multifunction displays (MFDs), or marine chart plotters
  • Compatible with all voltage systems - 12-48 volt compatible

ARCO Zeus App



FAQs

  • Limit of Internal Voltage regulators: Internal regulators are not able to meet the charging profile that is optimal for lithium batteries. They will consistently undercharge the battery due to only having one voltage setting.
  • Not optimal for Lithium batteries: Many alternators do not have an internal temp sensory. When using lithium batteries, the battery will demand more power than the alternator can produce over time and then eventually burn the alternator out.
  • Enhanced Charging Performance: Some external regulators are designed with advanced features that can improve charging performance. They may provide multi-stage charging, which optimizes the charging process by adjusting the voltage and current levels based on the battery's state of charge. This helps to extend battery life and improve overall charging efficiency. Internal reg does not have this feature.
  • Customization: An external voltage regulator can offer more control and customization options compared to the internal regulator. It may allow you to adjust charging parameters, such as voltage setpoints, charge profile, and battery type, to optimize the charging process for your specific battery bank.
  • Monitoring and Diagnostics: External regulators may offer additional monitoring and diagnostic capabilities, such as displaying battery voltage, charging current, and other relevant information. This can help you keep track of your battery's health and diagnose any potential issues.
  • There are internal alternator regulators and external alternator regulators.
  • For external voltage regulators there are 3 different external regulators including ARCO Zeus.
  • Zeus is the only alternator regulator to feature password protected Bluetooth connectivity.
  • Zeus is the only alternator regulator that enables users with installation, real-time configuration, and updates to your alternator, battery, and engine, without the need to plug into your alternator regulator.
  • Generator Mode™, unique to Zeus, enables you to use less fuel when powering your alternator. Your alternator will maximize the engine’s output when in neutral and send 100% of the field to your batteries.
  • Zeus is the only alternator regulator that features State-of-Charge capabilities. This mitigates your need for an additional state-of-charge product.
  • Zeus is the only alternator regulator that automatically logs records of your systems performance and can be shared with your technician to trouble shoot your system when remote. You can also import configurations sent remotely from your technician.
  • Zeus is the only alternator regulator to come with an alternator harness, battery harness, and 2 thermistors.

Yes, ARCO Zeus is compatible and integrations with Victron systems.

The installation is simple. Once your wiring is complete, download the ARCO Zeus app, connect to Zeus via secure Bluetooth and finish the installation process without wires or other tools.

Yes, Zeus is agnostic when it comes to which alternator it will work with.

You will need information on your battery and your alternator. Most batteries have all of the information you need on their label. For the required alternator information, you may need to visit the manufacturer’s website, contact the manufacturer or your technician.

When charging there will be voltage loss/drop on the positive and negative wires between the alternator and the battery. Zeus features positive & negative volt sensing leads, something stock alternators do not have. These wires directly monitor battery voltage, at the battery terminals, so the regulator can compensate for the voltage drop in the output wiring. Volt sensing is a critical component of Zeus.

ARCO Zeus has an alternator temp sensor that will modify the field current to let the alternator cool and keep it to a safe temp. Charging at idle can generate a lot of heat in factory alternators because the alternator is cooled by a fan and at low RPM you have low air flow.

ARCO Zeus can be fully custom programmed, via an easy to use app on your phone and set to whatever voltage and duration you need.

You calculate your pulley ratio by dividing the diameter of your crankshaft pulley by the diameter of the alternator pulley. For example, A 4”-inch crank pulley with a 2 inch alternator pulley will yield a 2:1 pulley ratio. (4 divided by 2 = 2:1) This means that the alternator will be spinning 2 times the engine RPM. In other words at 2000 engine RPM your alternator will be spinning at 4000 RPM.

ARCO Zeus can be fully custom programmed for your specific batteries.

Absolutely, and every parameter from max alt temp to absorption voltage, float voltage and the duration of each stage is fully programmable to your needs.

Yes, there are two configurations that could come into play. The first is if you have a pre-existing installation, meaning a Cerbo with other devices. The other is if you only have a Cerbo and Zeus.

For Pre-existing Setup:
Parts:
- 1x Ethernet Cable
Instructions:
Connect Zeus to the Cerbo via a standard Cat6 ethernet cable using the VE.Can socket.

For Cerbo and Zeus only:
Parts:
- 1x Ethernet Cable
- 1x Ethernet Network Termination Resistor Plug (Blue ethernet plug that comes with the Cerbo)
- 1x NMEA Network Termination Resistor Plug

Instructions:
- Install the Cerbo Network Termination plug into one of the open VE.Can network sockets.
- Install the NMEA Network Termination plug onto Zeus via the NMEA 2000 port.
- Connect Zeus to the Cerbo via a standard Cat6 ethernet cable using the VE.Can socket.

DOWNLOADS

SPECS

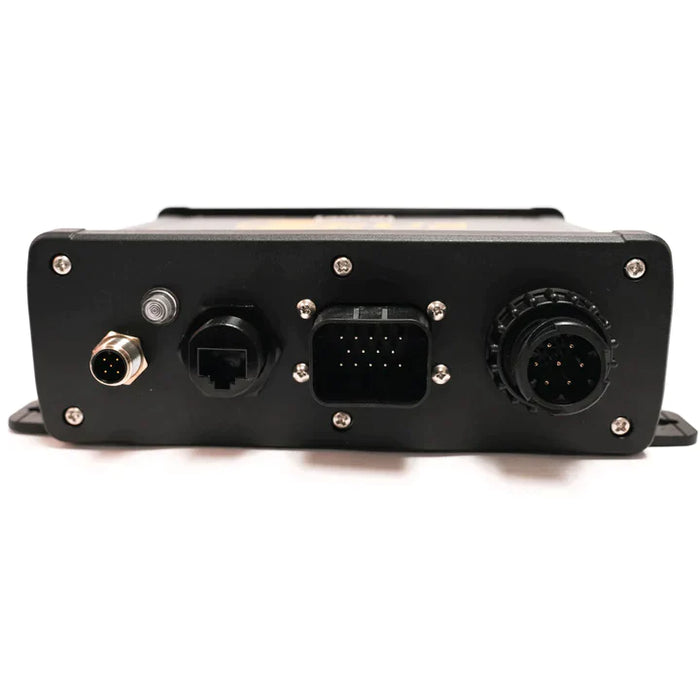

Connections
Bluetooth Yes (Password Protected)
2 Feature-in ports To physically control user selectable options
1 Feature-out ports For lamp or control relay for multiple user options
RJ45 Yes
NMEA 2000 Yes
2 CAN connections Yes
Dedicated Signal Wire To disable charging from an external source such as BMS
Management Native Application built and managed by ARCO allows users to wirelessly install, monitor, system diagnose, and adjust settings.
System Voltage 12V, 24V, 36V, 48V
State of Charge
Yes (SOC)
CE mark Yes
Generator Mode™ While in neutral and using less fuel, the alternator will maximize the engine’s power and put 100% of the field into charging batteries.
P-Type (B-Circuit) and N-Type (A-Circuit) Compatible Yes, with wiring harness included.
Waterproof
Yes, IP 66/67 rating.
Regulator Optimization Only alternator regulator that measures and reacts to inputs from the Battery current and temperature and the Alternator current and temperature.
Consistent Performance Operates at maximum performance within safety limits set by the user - Once the battery bank is full, it will continue to maintain and supply house loads while maintaining the full capacity of the battery bank.

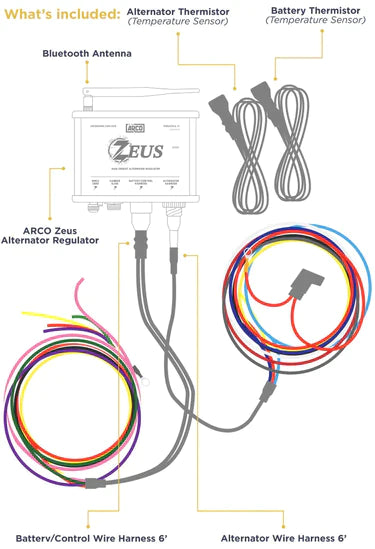

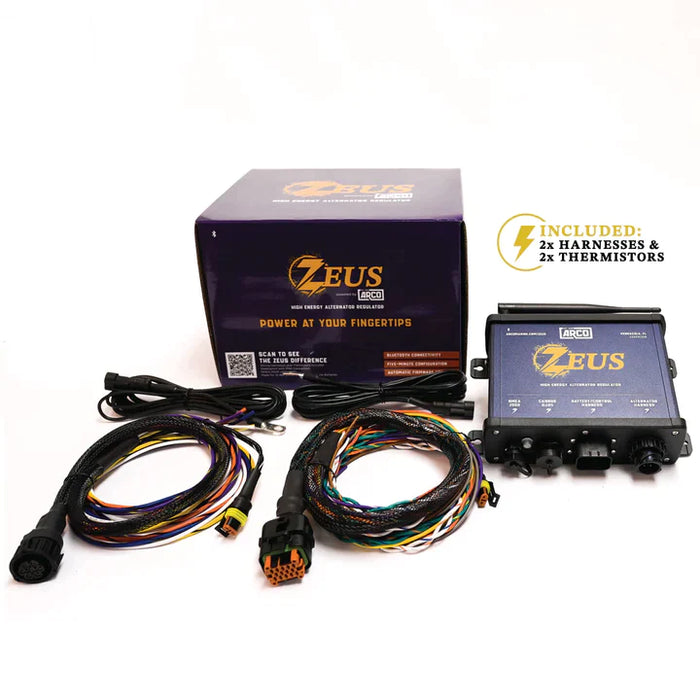

Included Zeus High Energy Alternator Regulator, battery wiring harness, alternator wiring harness, 2 thermistors.
Enclosure Dimensions Without antenna: 8.2" x 5.9" x 2.4"
With antenna: 8.2" x 7.5" x 2.4"
Warranty 2 Years
Weight

1.7 lb.
