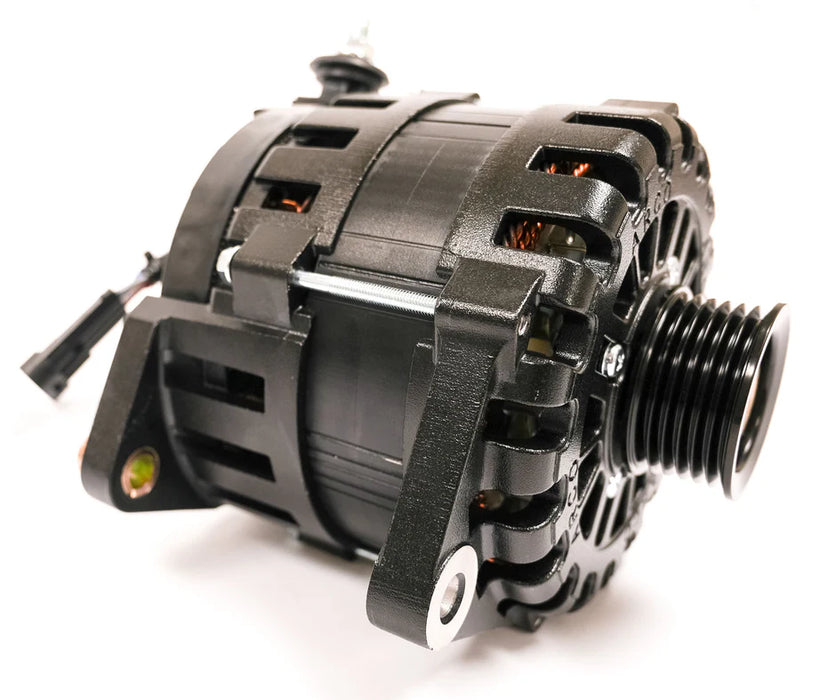

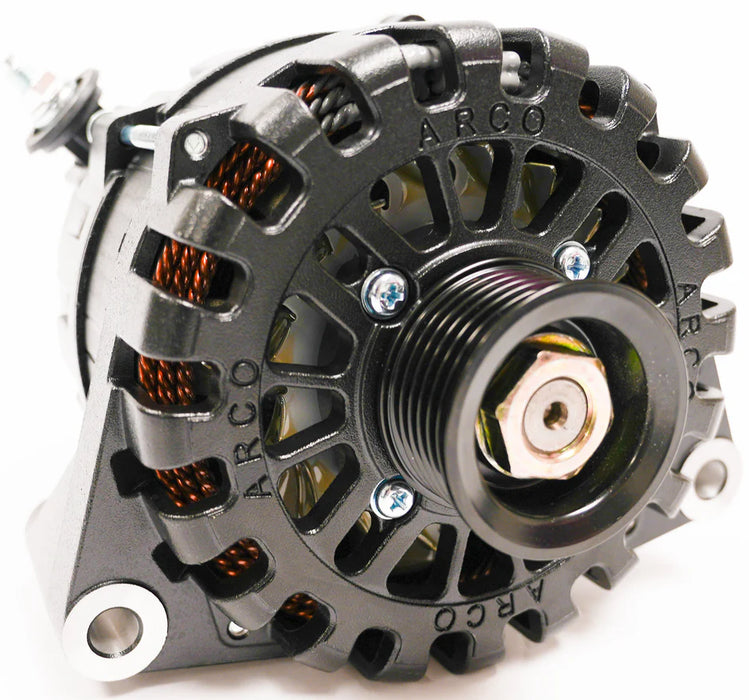

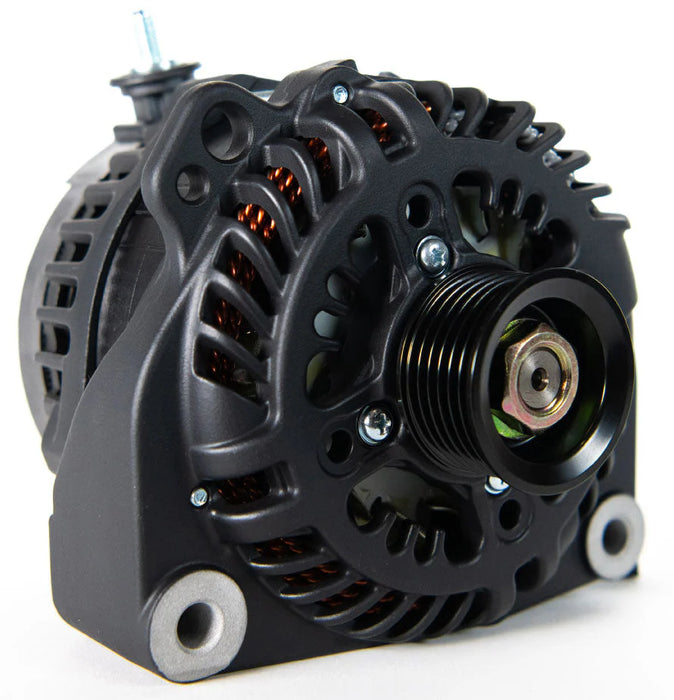

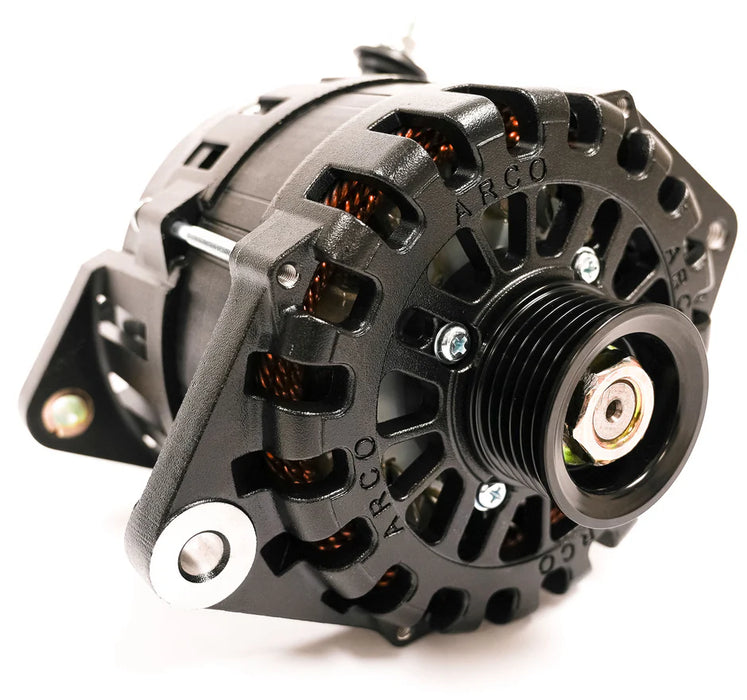

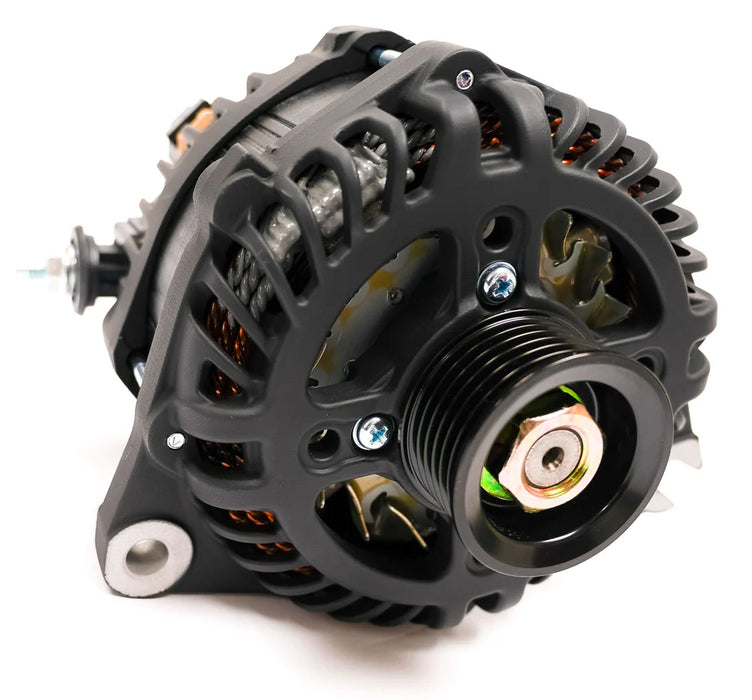

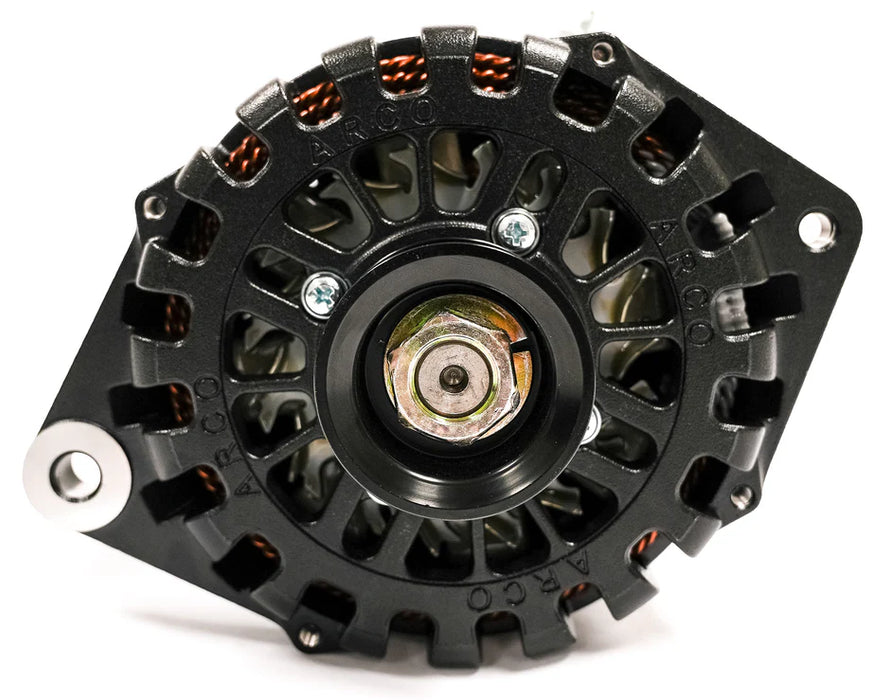

ARCO Zeus 12V A275L Alternator

SKU A275L-12-TR-EX-49K6
Original price $1,022.00 - Original price $1,193.00
Original price
$1,022.00
$1,022.00 - $1,193.00
Current price $1,022.00

Not seeing your wholesale pricing? LOG IN or SIGN UP

FREE FREIGHT ON ORDERS $499+

THE HIGHEST POWER OUTPUT ALTERNATOR IN ITS SIZE/CLASS

  • Engineered for High Energy Production.

  • Suitable for Marine, RV, Military, and
    Commercial applications.

  • Rapidly charges large battery banks.

  • Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:

       - Heat shedding coatings

       - Rectifier located on housing exterior

       - Dual cooling fans

       - OEM Components

  • Optimized for performance at idle speeds.

  • Reduces need for generator by creating additional power with your engine.

  • Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.

  • For maximum performance or lithium battery charging, use an ARCO Zeus Bluetooth alternator regulator.

  • SAE J1171 Certified.

  • Proudly made in the U.S.A.

power curve

Voltage 12V
Field Type P
Rotor Poles 16
Stator Size 138mm
Frame Size Large
Weight 14.9 lbs / 6.7 kg
Regulation Internal/External (IE) or
External Only (EX)
Output Voltage 14.1V (default)
Finish (Black) Cerakote or E-coating
Cut-In RPM 1,061 Alternator RPM
Maximum Alt RPM 19,000
Battery Post M8 Thread Post, Side Mount
Standard Pulley 49K6 (6-groove, 49mm)
Pulley Mount 17mm diameter shaft, 25mm long, threaded M17 x 1.5
Pulley Hardware M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
Diodes 6 positive, 6 negative, 50A Rated, Avalanche
Max Output (Cold, 9,000 RPM) 311 Amps
Sustained Cruising Output
(Hot, 6,000 RPM)
227 Amps
Sustained Idle Output
(Hot, 3,000 RPM)
198 Amps
Max Continuous Operating Temperature 110°C / 230°F


Mounting ARCO Part Number Application
1-2” Single Foot A275L-12-SF12-EX-49K6
A275L-12-SF12-IE-49K6
Replaces most domestic styles using a single 1or 2”mounting foot
(e.g., Motorola, Prestolite).
3.15” J180 Saddle A275L-12-DF315-EX-49K6
A275L-12-DF315-IE-49K6
Replaces most small case styles using a 3.15” J180 saddle style mount
(e.g., Hitachi, Lucas, Mitsubishi) Most Yanmars.
4” J180 Saddle A275L-12-DF4-EX-49K6
A275L-12-DF4-IE-49K6
Replaces most Volvo Penta alternators using a 4” J180 saddle style mount
Vortec/GM A275L-12-VT-EX-49K6
A275L-12-VT-IE-49K6
Replaces Mando type alternators using Vortec/ GM pad mounting feet
(Found on many Mercruiser and Volvo Penta 3.0GLM, 3.0GLP, 4.3GXi, 5.7GiL, 5.7GXiL Marine Engines.)
(GM Blocks )
N62 A275L-12-N62-EX-49K6
A275L-12-N62-IE-49K6
Replaces most Mercedes and BMW alternators
Mercedes Sprinter 1999-2006 alternators
Mercedes Sprinter Factory dual alternator 2007-Up Replacement
Transit A275L-12-TR-EX-49K6
A275L-12-TR-IE-49K6
Replaces Ford Transit alternators 3.5L & 3.7L Gas engines 2015-2022
N62 (Clutch Pulley) A275L-12-N62-EX-50K6CP
A275L-12-N62-IE-50K6CP
Mercedes Sprinter 1999-2006 alternators
Mercedes Sprinter Factory dual alternator 2007-Up Replacement
Replaces Roadtrek Mercedes Dual alternator

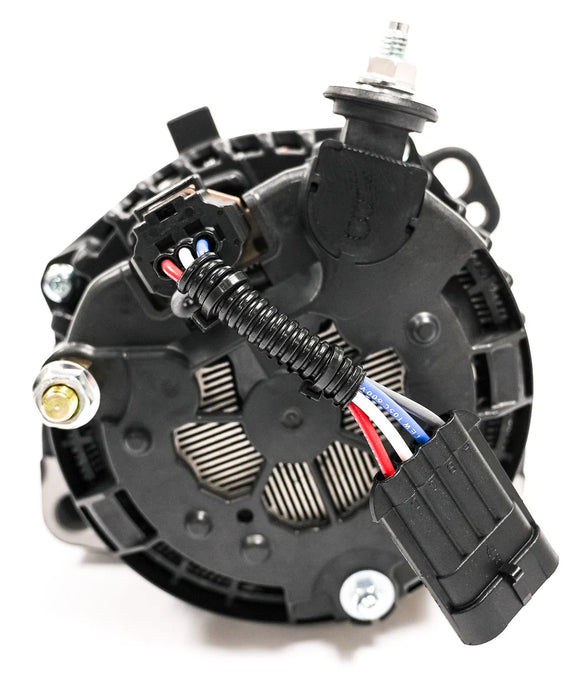

External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.

Internal/External (IE): Internally regulated with adaptor for optional external regulation.

To measure sustained output, the alternator is run at 3,000 RPMs for 60 minutes with a plexiglass shield covering the units. Testing shows that after 60 minutes in these conditions, alternators reach their maximum operating temperature, or the conditions under which the unit will produce the least output.

It is under these harsh conditions where we measure the “hot” output of the units at various RPMs. The complete power curve is shown above.

Note: The “hot” conditions are much less favorable than the conditions typically used in the industry. The temperature of the stator during our “hot” test was 305 °F. Incumbents measure the power curve at an ambient temperature of 140 °F. “Cold” testing was done at 71° F.



ARCO Zeus A275L APS Mechman Balmar
A275L-12-DF315-EX-49K6 360HSB1H652S9E4 - -
A275L-12-DF315-IE-49K6 - - XT-DF-250-K6
A275L-12-DF4-EX-49K6 42I-270-14JEXT/STA - -
A275L-12-DF4-IE-49K6 360HVOPRIG1H852S9E2
XT-DF4-250-K6
A275L-12-N62-EX-49K6 360HN621H652S9CE4 - -
A275L-12-N62-IE-49K6 - - XT-MS-250-K6
A275L-12-SF12-EX-49K6 - - -
A275L-12-SF12-IE-49K6 - - XT-SF-250-K6
A275L-12-TR-EX-49K6 - - -
A275L-12-TR-IE-49K6 - 11630320 XT-EB-250-K4
A275L-12-VT-EX-49K6 - - -
A275L-12-VT-IE-49K6 360H15RVC1H652S9C M8206250 XT-VT-250-K6
